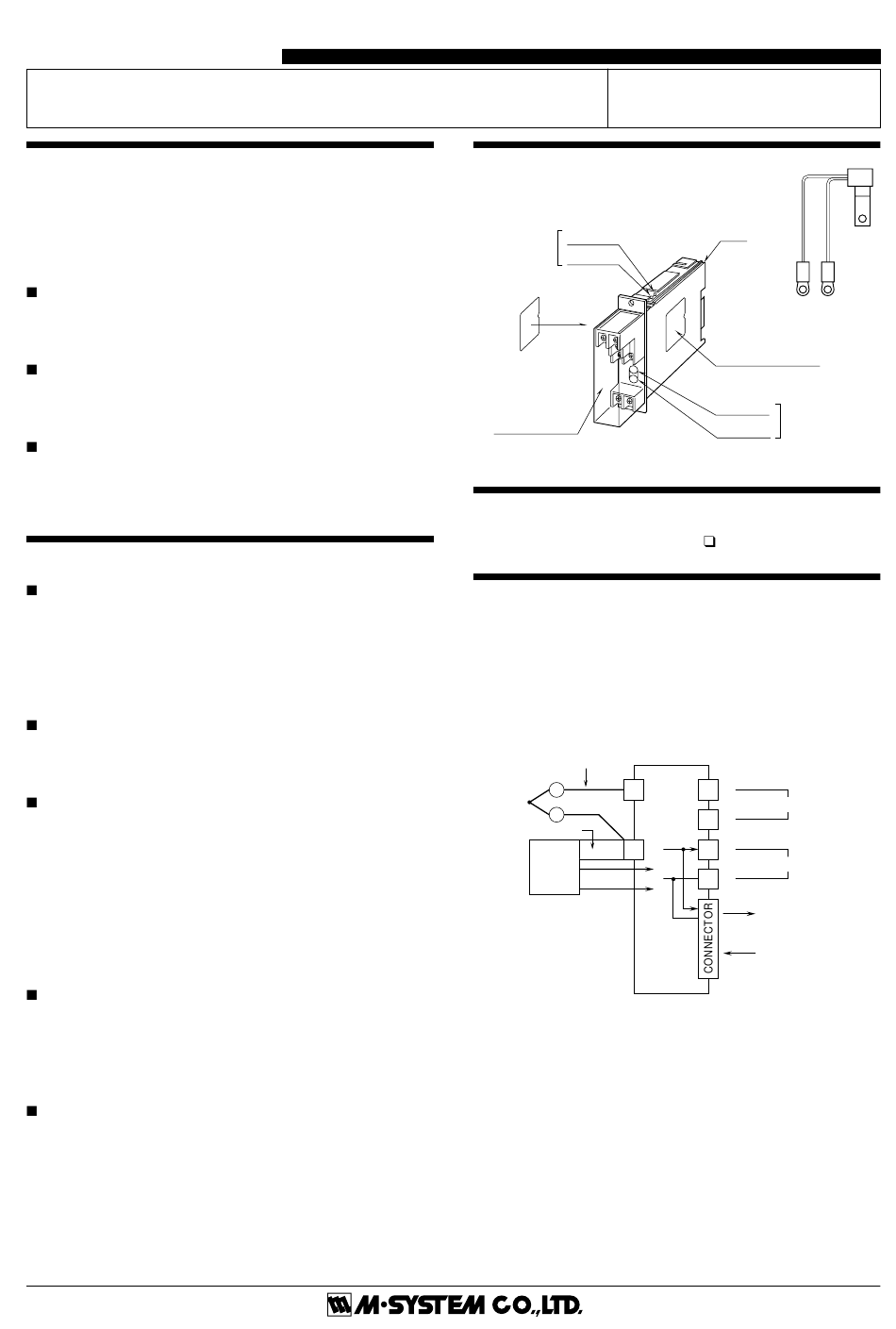

INSTRUCTION MANUAL
THERMOCOUPLE TRANSMITTER
BEFORE USE ....
Thank you for choosing M-System. Before use, check the
package you received as below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
PACKAGE INCLUDES:
Signal conditioner (body + CJC sensor*) ................... (1)
*Not provided with Option /N.
MODEL NO.
Check that model No. described on specification label is
exactly what you ordered.
INSTRUCTION MANUAL
This manual describes necessary points of caution when you
use this product, installation, connection and basic mainte-
nance procedures.
POINTS OF CAUTION
POWER INPUT RATINGS
• Power input ratings are specified by the model number
suffix code. Check the power input voltage for the unit on the
specification label.
24V DC ±10%, approx. 30mA with Voltage Output 1
approx. 60mA with Current Output 1
GENERAL
• Before you remove the unit or mount it, turn off the power
supply and input signal for safety.
ENVIRONMENT
• Indoor use
• When heavy dust or metal particles are present in the air,
install the unit inside proper housing and ventilate it.
• Do not install the unit where it is subjected to continuous
vibration. Do not apply physical impact to the unit.
• Environmental temperature must be within -5 to +55°C (23
to 131°F) with relative humidity within 30 to 90% RH in order
to ensure adequate life span and operation.
WIRING
• Do not install cables (power supply, input and output) close
to noise sources (relay drive cable, high frequency line, etc.).
• Do not bind these cables together with those in which noises
are present. Do not install them in the same duct.
AND ....
• The unit is designed to function as soon as power is
supplied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data sheet.
MODEL
COMPONENT IDENTIFICATION
Zero Adj.
Output 2*
Span Adj.
Connection Diagram
Label
(side)
Terminal Cover
*Provided only when the second output is selected.
INSTALLATION
Use Standard Rack (model: 10BX ).
TERMINAL CONNECTIONS
Connect the unit as in the diagram below or refer to the
connection diagram label on the unit side.
Attach the CJC sensor (optional) together with input wiring
to the input screw terminals. Be sure that the serial number
of CJC sensor (CJM) is the same as that of the module, as the
sensor is not interchangeable.
comp. leadwire
T / C
+
+
1
–
–
metal leg
2
*
CJC
SENSOR
red
black
model: CJM
* Deleted with Option /N.
**1 output type has the output 1 connected to the
card-edge connector in parallel.
10TS / 10TK
10TS/10TK
Body
CJC Sensor
No CJC Sensor
with Option /N.
Specification Label
Zero Adj.
Output 1
Span Adj.
+
7
OUTPUT 1
–
8
+
5
OUTPUT 2
–
6
OUTPUT 2**
POWER
