M-system 10JFT Instruction Manual

Filter/lag transmitter

Advertisement

Quick Links

INSTRUCTION MANUAL
FILTER/LAG TRANSMITTER

BEFORE USE ....

Thank you for choosing M-System. Before use, please check
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
■ PACKAGE INCLUDES:
Signal conditioner ...............................................................(1)
Mounting screw (M3.5 × 10) ...............................................(2)
■ MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation and connection,
hardware setting, and basic maintenance procedures.
When you need to change software settings, please refer to
the Operation Manual for Model PU-2x (EM-9255), Section
A.
POINTS OF CAUTION
■ POWER INPUT RATING & OPERATIONAL RANGE
• Locate the power input rating marked on the product and
confirm its operational range as indicated below:
24V DC rating: 24V ±10%,
approx. 60mA with voltage output 1
approx. 90mA with current output 1
■ GENERAL PRECAUTIONS
• Before you remove the unit or mount it, turn off the power
supply and input signal for safety.
■ ENVIRONMENT
• Indoor use.
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -5 to +55°C
(23 to 131°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
■ WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
• Be sure to put the terminal cover on while the power is
supplied.
(field-programmable)
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
MODEL
■ AND ....
• The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data
sheet.

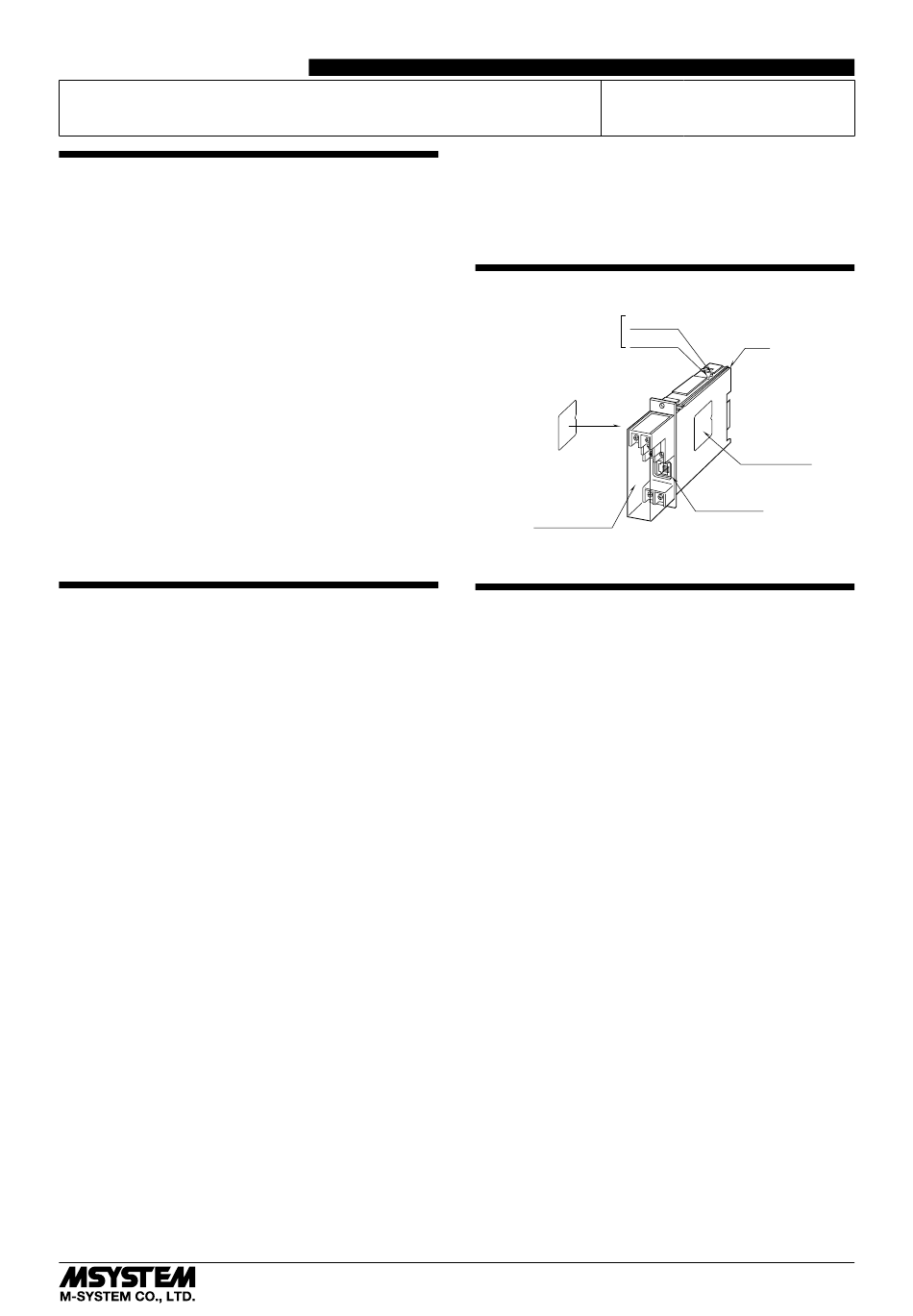

COMPONENT IDENTIFICATION

Zero Adj.
Output 2*
Span Adj.
Connection Diagram
(side)
Terminal Cover
*Provided only when the second output is selected.

INSTALLATION

Use Standard Rack (model: 10BXx).
10JFT
Body
Specifications
Modular Jack
EM-0879 Rev.1 P. 1 / 7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10JFT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for M-system 10JFT

  • Page 1 • The unit is designed to function as soon as power is sup- plied, however, a warm up for 10 minutes is required for Thank you for choosing M-System. Before use, please check satisfying complete performance described in the data contents of the package you received as outlined below.
  • Page 2 * For 1 output channel type, OUTPUT 1 is also connected to the card-edge connector inside. Note: The section enclosed by broken line is only for 2nd output channel. EM-0879 Rev.1 P. 2 / 7 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 3 LIGHTNING SURGE PROTECTION instrument or conduct regular calibration. Zero and span are adjusted with using the Programming M-System offers a series of lightning surge protector for Unit (model: PU-2x). Also, fine adjustments for the Output protection against induced lightning surges. Please contact 2 can be done with the potentiometers on top of the unit M-System to choose appropriate models.
  • Page 4 D: No modification (writing) possible. Used only for monitoring (reading). S: Modifiable at any time. P: Modifiable only when the MAINTENANCE SWITCH is in the “PRG” mode. EM-0879 Rev.1 P. 4 / 7 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 5 • Step Input with Dead-Time Plus Time Constant (1 to 8 adjustable) Time constant (0.0 to 100.0 seconds adjustable) INPUT OUTPUT H x N EM-0879 Rev.1 P. 5 / 7 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 6 This unit operates a lead-time equation. INPUT Xo (s) = (1 + Ts) Xi (s) Input Output Lead-time constant (0.0 to 100.0 seconds adjustable) OUTPUT EM-0879 Rev.1 P. 6 / 7 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 7 Number of largest samples to be cut off (0 to 7 adjustable) Number of smallest samples to be cut off OUT 1 OUT 2 (0 to 7 adjustable) EM-0879 Rev.1 P. 7 / 7 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
