Textron Greenlee GREG2090 Instruction Manual

Textron Greenlee GREG2090 Instruction Manual

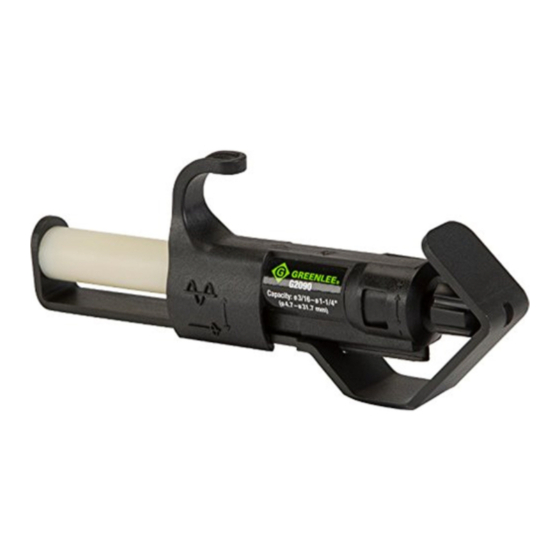

Adjustable cable stripping tool
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

MANUAL DE INSTRUCCIONES / MANUEL D'INSTRUCTIONS
Español ................. 7
Français .............. 13
Adjustable Cable Stripping Tool
Herramienta desforradora de cables ajustable
Outil de dénudage de câble réglable
Register this product at www.greenlee.com / Registre este producto en www.greenlee.com
52073616
INSTRUCTION MANUAL
G2090/03560
Read and understand all of the instructions and safety information
in this manual before operating or servicing this tool.
Lea y entienda todas las instrucciones y la información sobre
seguridad que aparecen en este manual, antes de manejar esta
bomba o darle mantenimiento.
Lire et comprendre toutes les instructions et les informations sur la
sécurité figurant dans ce manuel avant d'utiliser ou de procéder à
l'entretien de cet outil.
Enregistrez votre produit en ligne, www.greenlee.com
© 2015 Greenlee Textron Inc.
4/15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Greenlee GREG2090 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Textron Greenlee GREG2090

  • Page 1 Lire et comprendre toutes les instructions et les informations sur la sécurité figurant dans ce manuel avant d’utiliser ou de procéder à l’entretien de cet outil. Register this product at www.greenlee.com / Registre este producto en www.greenlee.com Enregistrez votre produit en ligne, www.greenlee.com 52073616 © 2015 Greenlee Textron Inc. 4/15...
  • Page 2: Table Of Contents

    Replacement manuals are available upon request at no charge at www.greenlee.com. All specifications are nominal and may change as design improvements occur. Greenlee Textron Inc. shall not be liable for damages resulting from misapplication or misuse of its products. KEEP THIS MANUAL Greenlee / A Textron Company 4455 Boeing Dr.
  • Page 3: Important Safety Information

    Failure to observe this warning could result in severe injury or death. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
  • Page 4: Identification

    Keep the tool clean and dry. No additional maintenance or cable with an outside diameter of is required. 3/16" to 1-1/4" (4.7 mm to 31.7 mm) Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
  • Page 5: Operation

    6. Remove the cable stripping tool from the cable. 7. Use the lifting edge (7) at the end of the spiral cut to peel the insulation jacket off the conductor. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
  • Page 6: Blade Replacement

    G. Reinstall the blade depth adjusting knob, but keep the blade tip concealed for protection. H. Reinstall the blade housing on the handle (4) until both latches snap tight against the handle. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
  • Page 7: Descripción

    Puede obtener copias adicionales de manera gratuita, previa solicitud en www.greenlee.com. Todas las especificaciones son nominales y podrían cambiar según se hagan mejoras en el diseño. Greenlee Textron Inc. no será responsable por daños que resulten de la aplicación o uso indebidos de sus productos.
  • Page 8: Información Importante Sobre Seguridad

    De no observarse esta advertencia podrían sufrirse lesiones graves o incluso la muerte. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
  • Page 9: Identificación

    Mantenga limpia y seca la herramienta. No se necesita o cable con un diámetro exterior de mantenimiento adicional. 4,7 mm hasta 31,7 mm (3/16" hasta 1-1/4") Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
  • Page 10: Funcionamiento

    6. Retire del cable la herramienta desforradora de cables. 7. Use el borde elevador (7) en el extremo del corte en espiral para desprender el forro de aislamiento del conductor. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
  • Page 11: Hoja De Repuesto

    H. Vuelva a instalar la caja de la cuchilla en la empuñadura (4) hasta que ambos pestillos enganchen ajustadamente en la empuñadura. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
  • Page 12 G2090/03560 Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
  • Page 13: Description

    Des exemplaires gratuits peuvent être obtenus sur simple demande au site www.greenlee.com. Toutes les caractéristiques sont nominales et peuvent changer conjointement aux améliorations apportées. Greenlee Textron Inc. décline toute responsabilité pour les dommages résultant d’un emploi détourné ou abusif de ses produits.
  • Page 14: Informations De Sécurité Importantes

    Le non-respect de cette mise en garde peut entraîner des blessures graves ou la mort. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
  • Page 15: Identification

    Garder l'outil propre et sec. Aucun entretien ou câble de diamètre extérieur de supplémentaire nécessaire. 3/16 po à 1-1/4 po (4,7 mm à 31,7 mm) Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
  • Page 16: Fonctionnement

    6. Dégager l'outil de dénudage du câble. 7. Insérer le rebord de levage (7) à l'extrémité de la coupe spiralée pour décoller la gaine isolante du conducteur. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
  • Page 17: Changement De Lame

    H. Remonter le logement de lame sur la poignée (4) en veillant à bien encliqueter les deux pattes de la poignée. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
  • Page 18: Illustration And Parts List

    4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070 USA Tel: 800-435-0786 Canada Tel: 800-435-0786 International Tel: +1-815-397-7070 An ISO 9001 Company • Fax: 800-451-2632 Fax: 800-524-2853 Fax: +1-815-397-9247 Greenlee Textron Inc. is a subsidiary of Textron Inc. www.greenlee.com...

This manual is also suitable for:

Greenlee g2090/03560
