Sony CD39ZM-4N1-STA Quick Start Manual

Specification
Model CD39ZM-4N1-STA
1/2.8" SONY IMX290Starvis 2.1MP
Image Sensor
Eyenix 771E Back-illuminated CMOS Sensor
Resolution 1080P
Signal System PAL / NTSC
Minimum Illumination 0.001 Lux/F1.2
S/N Ratio More than 52dB
Synchronous System Internal
IR Distance 30 Meters
IR Power On Photodiode AUTO Control
Video Output CVBS/CVI/TVI/AHD
Power/Current DC12V(+/-10%)/700mA
Lens
2.8-12mm Motor Zoom & Auto Focus Lens
Weather Proof
IP66
Dimension (mm)
Φ131 x 93(H)
Weight (g)
800
Operating Conditions -10~+50℃ RH95% MAX
Accessories list
Name
Camera
User Guide
Notes:
Number
Do not attempt to disassemble the camera. If the camera
1
can not work, please contact local franchiser or our company.
1

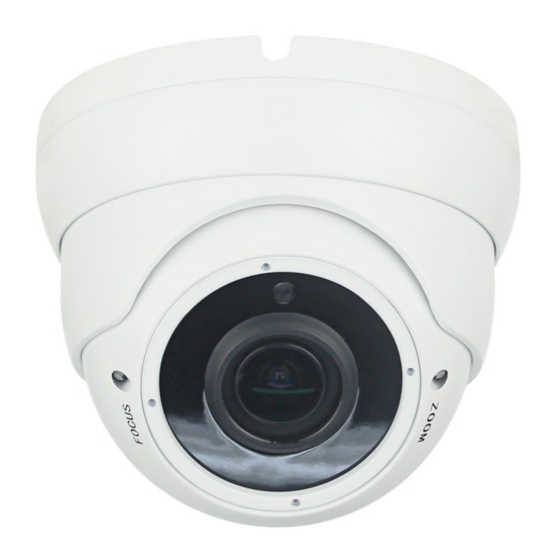

CD39ZM-4N1-STA
4n1 SONY Starvis Weatherproof
Motorized Varifocal Camera
Thank you for using our product.
Before providing power for the camera, please read
this manual carefully before use.
We adopt the latest technical of sensor and driver.
It owns the characters of high definition and stability,
strong anti-jamming, rich and real color. Fixing and
using this model are convenient too. It is very good
for you to apply to your CCTV system.
*pictures and specifications subject to change or
typographical errors without notice
