USER'S MANUAL

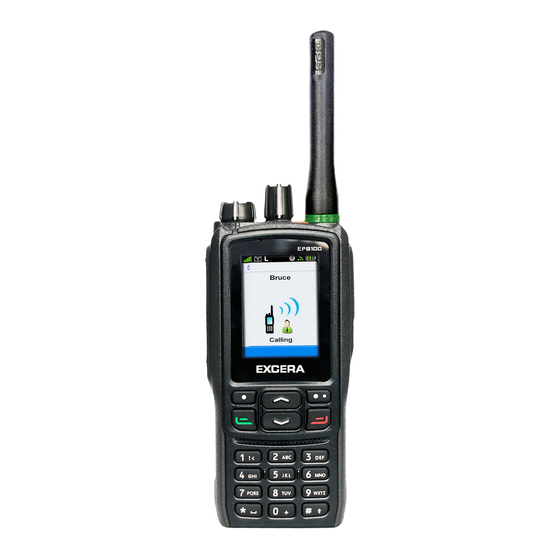

Digital Portable Radio
EP8100 VHF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EP8100 VHF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Excera EP8100 VHF

Summary of Contents for Excera EP8100 VHF

  • Page 1 USER’S MANUAL Digital Portable Radio EP8100 VHF...

  • Page 2: Table Of Contents

    Contents Important Information High Noise Reduction RF Energy Exposure Information Time-out-Timer(TOT) GPS Positioning Operation Safety Recommendations Radio Saftety Information and RF Radiation Information DMR Trunking Functions and Operations Disabled Frequency Private Call Packing List Group Call All Call Before Use Emergency Call Ready to Use Broadcast Call...
  • Page 3 Contents MPT Trunking Functions and Operations Optional Accessories Troubleshooting Private Call Group Call Warranty and Maintains All Call Scope of Warranty Warranty Contents Emergency Call Non of Warranty Broadcast Call Disclaimer Priority Call Warranty Card Dispatch Station Call MPT Pubic Network Call MPT-DMR Call Call Logs Redail and Callback List...

  • Page 4: Important Information

    Important Information Note: Ic Note : Cet Appareil Est Conforme À La Partie 15 Des Règlements De La Fcc Et Aux Normes Rss De L’industrie Du Canada. Son Fonctionnement Est Soumis Aux Deux Conditions Suivantes : (1) Cet Appareil Ne Doit Pas Causer Des Interférences Nuisibles, Et (2) Cet Appareil Doit Accepter Toute Interférence Reçue, Y Compris Les Interférences Qui Peuvent Provoquer Un Fonctionnement Indésirable..

  • Page 5: Rf Energy Exposure Information

    RF exposure limits. This radio is NOT authorized for general population, consumer, or any other use. WARNING Changes or modifications not expressly approved by Shenzhen Excera Technology Co., Ltd.could void the user's authority to operate the equipment. CAUTION This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance.

  • Page 6: Operation Safety Recommendations

    Important Information Federal Communications Commission Regulations Before it was marketed in the United States, the Digital portable radio was tested to ensure compliance with FCC RF energy exposure limits for two-way portable radios. When two-way radios are used as a consequence of employment, the FCC requires users to be fully aware of and able to control their exposure to meet occupational requirements.
  • Page 7 Important Information Radio Frequency Interference FCC Part 15 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference; and, 2. This device must accept any interference received, including interference that may cause undesired operation. Industry Canada This device complies with Industry Canada license-exempt RSS standard(s).

  • Page 8: Radio Saftety Information And Rf Radiation Information

    Important Information Packing List Please read this manual carefully before use. Please unpack carefully and check that all items listed below are received. If any item is missing or damaged ,please contact Alert Icons your dealer. Caution:Indicates situations that could cause data loss or damage to your products.

  • Page 9: Before Use

    This radio is built in Li-ion battery .In order to prevent from damaging and comply with the warranty, use only the charger Standby (no load) Red LED flashes slowly and battery specified by Excera.The following figure shows the steps for charging. Red LED glows Charging...
  • Page 10 Before Use Attaching Antenna Attaching the Batttery Plug the antenna to antenna pedestal,turn the antenna 1.Insert the battery into top of the radio .see arrow①. clockwise to fasten it . 2.Slightly press the bottom of the battery until a click is heard. See arrow②.
  • Page 11 Before Use Attaching the Belt Clip Attaching the audio accessory/Programming Cable 1.Remove the screws from the back of radio. 1.Open the accessory jack cover as the arrow shown. 2.Align the screw holes on the belt clip with those on the radio's 2.Align the plug with accessory jack.

  • Page 12: Product Controls

    Before Use Product Controls Part Name Part Name Part Name SK1 (Side 1 Key) LCD Display Accessory Jack PTT Key Menu Key Setting Key Sk2 (Side 2 Key) Answer/ Calling Key P1 Hang Up /Home Key P2 Channel/Group Selector Knob Speaker Up and down Key Radio On-off/ Volume Control Knob...

  • Page 13: Led I I Ndicator

    Before Use LED Indicator Status Icons LED Indicator Radio Status Icon Icon Name Standby(no load) LED flashes green slowly. Signal Strength Icon Upgrading or powering on New Message Icon , LED flashes green rapidly. Inbox Icon is full LED glows green. Receiving Scan Icon LED flashes Red slowly.

  • Page 14: Product Functions And Operations

    Product Function and Operations Operation Mode Time and Date Display Setting This radio supports three operation Mode :DMR Trunking Use this function to modify this radio Date and Time. mode,MPT Trunking mode and Conventional mode(Digital Press “Setting”Key to access “Radio Setting”-“Date and and Analog).Switching Methods: Time”interface to modify the Date and Time.

  • Page 15: Menue Reset

    Product Functions and Operations Menu Reset Time- out Timer(TOT) This radio supports Menu Reset function ,that is ,if you don’t The purpose of TOT is to prevent any user from operate the menu for a predefined time period.This radio will occupying a channel for an extended period.You can set automatically reback to the home screen.

  • Page 16: Dmr Trunking Functions And Operations

    Product Functions and Operations Note: You may transmit a Private Call through any of the To ensure an optimal volume of the receiving radio,hold following methods. the radio approximately 2.5 to5cm from your mouth. Transmitting a call through Contacts List or Call Logs 1.Press Menu Key to go to Main Contacts.
  • Page 17 Product Functions and Operations Receiving and Responding to a Private Call Call Duration After setting up a Private Call ,both the calling party and called party LCD will display call duration in time .Unit is “Minutes :Seconds”. (As shown) When a Private Call is received ,your radio automatic to receive a private call and sounds “De,De”,your radio will display the icon (As shown above) .

  • Page 18: Group Call

    DMR Functions and Operations Group Call Receiving and Responding to a Group Call You may transmitting a Group Call through any of the following methods. Transmitting a call to the preset contacts. In the home screen,hold down PTT Key to transmitting a Group Call to the Group Call contacts preset for the current Channel.

  • Page 19: All Call

    DMR Functions and Operations All Call Call Duration After setting up a Group Call ,Both the calling party LCD and the Two types of All Call are Team All Call and Whole called party LCD will display Call Duration in time . Network All Call.

  • Page 20: Emergency Call

    DMR Functions and Operations Emergency Call DMR Republic Network Phone Call Emergency Call can be Emergency Private Call or Emergency The calling with Public Network Phone is called Public Group Call . Network Call.Network Phone Call have fixed phone call The following two methods are available to initiate a and mobile phone.

  • Page 21: Contacts

    DMR Functions and Operations Contacts List 3、Public Network Contacts You can save up to 256 entries in the Public Network To access to this menu,Press Menu Key to Main Menu and Contacts. select “Contacts List ”. To access this item through "Contacts List-Public Network Contacts"...

  • Page 22: Message

    DMR Functions and Operations Message 3、Drafts The Drafts can save up to 10 drafts messages into Drafts. To access this item,press Menu key to go to main menu to When the Drafts is full, the earliest message will be select“message”. overwritten by the latest one automatically.

  • Page 23: Call Logs

    DMR Functions and Operations Call Logs Redail List Press Menu Key to access Main Menu and then select“Call Logs”. All outgoing call list will be save in the Redial List . This radio can save up to 200 call entries.When the entries To access this item,Use P1 key in home screen list is full.The earliest entry will be over written by latest one...

  • Page 24: Vehicle Inquiry

    DMR Functions and Operations Vehicle Inquiry Status Filing To access this item ,press Menu Key to access Main Menu to Press Menu Key to access Main Menu to select select “Public security --Vehicle information ". “Applications—Status Filing”. You can input the vehicle license number and sent it to When the feature is enabled,the control center or other dataspace when you want to inquiry it .You also can review it radio holder will master your working status etc.

  • Page 25: Mpt Trunking Functions And Operations

    MPT Trunking Functions and Operations To ensure an optimal volume of the receiving radio,hold the radio Receiving and Responding to a Private Call approximately 2.5to 5 centimeters away from your month . Private Call Transmitting a Private Call You may transmit a Private Call through the following methods. When transmitting a Private Call ,this radio will set up calling automatically .

  • Page 26: Group Call

    MPT Trunking Function and Opertaions Call Duration Group Call After setting up a private call ,Both the calling party LCD and You may transmit a Group Call through any of the called party LCD will display Call Duration in time . following methods.
  • Page 27 MPT Trunking Function and Opertaions Receiving and Responding to a Group Call Call Duration After setting up a Group Call ,Both the calling party LCD and the called party LCD will display Call Duration in time . Unit is “Minutes :Seconds.”(As shown) When a Group Call is received ,your radio set up call automatically and sounds “De”,your radio will display the icon .

  • Page 28: All Call

    MPT Trunking Functions and Operations Ending a Call Emergency Call 1.Nobody hold down PTT Key for a long time ,and this radio Emergency Call can be Emergency Private Call or will end call automatically when the silence period expires. Emergency Group Call . 2.This radio will end call when the total calling time expires The following two methods are available to initiate a the preset time.

  • Page 29: Mpt Pubic Network Call

    MPT Trunking Functions and Operations MPT Public Network Calling DMR trucking mode radio initiate a call to DMR-MPT is The calling with Public network phone is called MPT public the same as the above operations. network Call. Receiving and Responding to a Call For your better use ,for example as follow.

  • Page 30: Redail And Callback List

    MPT Trunking Functions and Operations Redial List and Callback List Redail List All outgoing call list will be save in the Redial List . to access "Redail List "and"Callback List”. Use P1 P2 key Use P1 key to access this item in home screen. This radio can save up to 10 call entries .When the entries list (As shown) Use P1 Key or PTT Key to select the...

  • Page 31: Digital Conventional Functions And Operations

    Digital Conventional Functions and Operations Private Call,Group Call and all Call Transmitting an All Call You may transmit a private and an All Call through any Transmitting a Private Call of the following methods. You may transmit a Private Call through any of the following methods.

  • Page 32: Information

    Digital Conventional Functions and Operations Message b、When the message sent unsuccessful, the icon"！" To access the Menu,press Menu key to go to Main Menu to will appear and please send again. select“message”. The OutBox can save up to 100 sent messages. When the OutBox is full,the earliest message will be overwriten by the lastest one automatically.

  • Page 33: Call Logs

    Digital Conventional Functions and Operations Call Logs Zone To access this menu,press Menu key to Main Menu and Zone is a channel group,you can list the same channel select"Call Logs,or press the shortcut key for Call Logs directly. in a zone. This function will help you manage the current channel.

  • Page 34: Analog Conventional Functions And Operations

    Analog Conventional Functions and Operations Squelch Level You can select the squelch Level by menu from Strengthen , Normal and Always On . Or press Squelch level Switching programmable Key to switch the level. This radio default at Norma generally.Strengthen requires the receipt signal high enough to turn on the speaker .

  • Page 35: Optional Accessories

    Optional Accessories The following items are the main optional accessories for the product. Consult your local dealer for more other accessories. Speaker Microphone 3400 mAh Battery Wireless PTT Bluetooth Headset Programming Cable C-Shell Earset (Shoulder) EB342L EPC01 EPTTB01 EEWB03E EEHN011 EMRN011 Police Full Bone Fireman Full Bone...

  • Page 36: Troubleshooting

    Troubleshooting Phenomena Solution Analysis The battery may be improperly installed Remove the battey and attach it again. The battery may run out Recharge or replace the battery The Radio Can not be powered on. The battery may suffer from poor contact Clean the battery contacts, if the problem can not be solved, contact your dealer caused by dirtied or damaged battery contacts or authorized service center for inspection and repair.

  • Page 37: Warranty And Maintains

    4.Cannot produce valid warranty certifications (Warranty Card, Invoice or Receipt etc.) 5.By the rational judgment of Excera, serial number code label, the accessory date code label or relevant Excera a sign of a product has been removed, defaced or altered.

  • Page 38: Disclaimer

    Disclaimer The company endeavors to achieve the accuracy and completeness of this manual,but no warranty of accuracy or reliability is given. All the specifications and designs are subject to change without notice due to continuous technology development. No part of this manual may be copied ,modified,translated,or distributed in any manner without the express written permission of us.

  • Page 39: Warranty Card

    Warranty Card Purchase Information: Customer Name: Customer Phone: Customer Address: Purchase Date: Radio Information: Radio Model Number: Radio Serial Number: Note: This Warranty Card is applicable to the above serial number radio and accessories service. Please properly keep the warranty card, please show this card and related invoice when enjoy this service. This card shall become effective after dealer affixed their seals to it .
  • Page 40 Use only Excera authorized accessories (antennas, battery packs, belt clips, Speaker/Mics or headsets etc.): When worn on the body, always place the radio in a Excera recommended clip or carrying case meant for this product. The use of other than recommended or approved body-worn accessories may result in RF exposure levels which exceed the FCC’s occupational...
