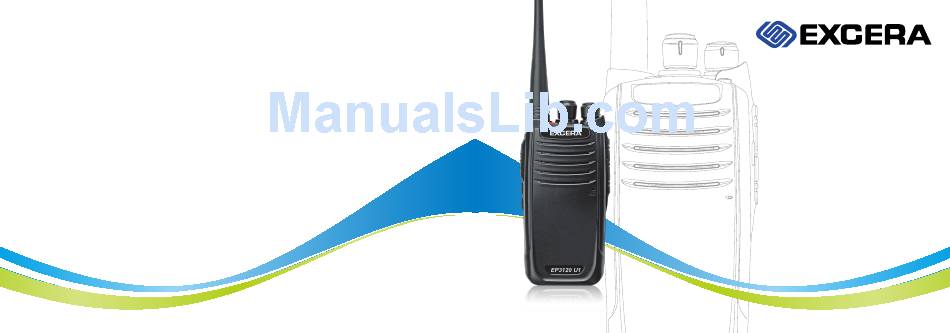

- Page 1 EP3120 U1 SHENZHEN EXCERA TECHNOLOGY CO.,LTD. Address: 3rd Floor, Block B,Jiada R&D Building, No.5 Songpingshan Digital Portable Radio Road, Hi-Tech Park North, Nanshan District , Shenzhen Postal Code: 518057 User Manual Web: www.excera.com.cn Tel: +86-755-33010298...
-
Page 3: Table Of Contents
CONTENTS SAFETY INFORMATION transceivers are designed with advanced technology. Please observe the following UNPACKING ............................1 precautions to prevent personal injury and ensure the safety of transceiver usage. Supplied Accessories .......................... 1 1. Keep the transceiver and accessories away from children. STANDARD/OPTIONAL ACCESSORIES .................... - Page 4 CONTENTS CONTENTS Power on the radio ..........................14 Lone Work ............................21 ..............21 Adjust Volume ............................. 14 Scan (Turn on/ off this function by "Scan on/off" key) LED Indicator ............................14 Scan lists ............................21 Alert Tone ............................14 Scan ..............................
-
Page 5: Unpacking
UNPACKING STANDARD ACCESSORIES Carefully unpack the transceiver. We recommend you to identify the items listed in the following Standard Accessories table before discarding the packing material. If any items are missing or have been damaged during shipment, please contact your dealer immediately. Supplied Accessories Antenna* Li-ion Battery Pack... -
Page 6: Battery Information
BATTERY INFORMATION BATTERY INFORMATION Charging Operation WARNING: If the battery terminals short circuit, it will generate a lot of heat and possibly a fire. The battery pack is not charged at the factory; please charge it before use. When using or storing the radio (or just the battery), keep keys and other metal objects away from Charging the battery pack for the first time or after extended storage (more than 2 moths) may not the battery terminal contacts. -
Page 7: Normal Charging Tips
BATTERY INFORMATION BATTERY INFORMATION Normal Charging Tips NOTE: When charging a power-on transceiver equipped with battery, the indicating lamp will not turn into green to show the fully charged status. Only when the transceiver is switched off, can the 1. Self- Examination: When charging, orange light twinkles for 1 second and goes out, which lamp indicate normally. -
Page 8: Preparation
BATTERY INFORMATION PREPARATION Installing / Removing the Battery WARNING: ▼Do not short circuit battery terminals. 1. Match the two grooves of the battery pack with ▼Never attempt to remove the casing from the battery pack. the corresponding guides on the back of the ▼Never assemble the battery in dangerous surroundings, spark may cause explosion. -
Page 9: Installing / Removing The Belt Clip
PREPARATION PREPARATION Installing / Removing the Belt Clip Installing/ Removing the Hand Strap ■ Installing the Belt Clip: Slide the loop of the hand strap through the eyelet on the upper rear of the transceiver, then pull the entire Place the belt clip to the corresponding grooves hand strap through the loop to secure the hand strap on the back of the transceiver and secure with the in place and tighten the hand strap. -
Page 10: Product Overview
PRODUCT OVERVIEW PRODUCT OVERVIEW Antenna POWER / VOLUME Switch: Turn clockwise to switch on the transceiver, and turn anticlockwise till hearing “click” to switch off the transceiver. After switching on the transceiver, turn clockwise to increase the volume and anticlockwise to decrease the volume. Channel Selector Knob Turn the selector knob to select desired channel. -
Page 11: Summary
PRODUCT OVERVIEW SUMMARY Power on the radio NOTE: The PF1 and PF2 key's function can be defined the functions as below: Power on the radio: Turn on the radio by turning the Power/Volume switch clockwise till a click is heard, and you will hear a Power up beep if the dealer has set it. The radio is now in Rx mode. Side key: Adjust Volume 1. -
Page 12: Receive And Make A Digital Call
FUNCTION INTRODUCTION FUNCTION INTRODUCTION Receive and make a digital call 1. The green LED turns on. 2. Hold the radio vertically 1 to 2 inches ( 2.5 to 5.0cm) from your mouth. If the channel Free 1.Selecting a zone Indication feature is enabled, you will hear a short alert tone the moment the transmitting radio A zone is a group of channels. -
Page 13: Receiving An All Call
FUNCTION INTRODUCTION FUNCTION INTRODUCTION 6.Receiving an All Call 3. Press the [PTT] key to make the call. The red LED turns on. 4. Wait for the Talk permit Tone to finish (if enabled) and speak clearly into the microphone. An All Call is a call from an individual radio to every radio on the channel. It is used to make 5. -
Page 14: Making A Group Or Private Call With The One Touch Call Key
FUNCTION INTRODUCTION FUNCTION INTRODUCTION 2. Hold the radio verticaly 1 to 2 inches (2.5 to 5.0 cm) from your mouth. You can send a predeined Text Message by the key. A maximum of 50 Text messages 3. Press the [PTT] key to make the call. The red LED turns on. are supported. -
Page 15: Priority Scan
FUNCTION INTRODUCTION FUNCTION INTRODUCTION will be no response (call) from the target radio unless you press the PTT button to initiate the call. There are two ways of initiating scan: Silent w/Voice: Radio transmits an alarm signal and is able to receive an incoming call without any ●... -
Page 16: Setting
FUNCTION INTRODUCTION FUNCTION INTRODUCTION 2. Press [PTT] key during hang time, red LED turns on. 2.Turning the VOX Feature On or Off 3. Wait for the Talk Permit Tone to finish (if enabled) and speak clearly into the microphone. This feature allows you to initiate a hands-free voice activated call on a channel. The 4. -
Page 17: Battery Capacity Enquiry
FUNCTION INTRODUCTION TROUBLESHOOTING Phenomena Solution 4.Battery Capacity Enquiry You can check battery capacity. A. The battery may be exhausted. Recharge or replace Setup: The yellow LED turns on means the battery is being charged, the green LED turns on means the battery. -
Page 18: Technical Specifications
Limited Warrarty TECHNICAL SPECIFICATIONS What This Warranty Covers and for How Long General Intermodulation ≥60dB Spurious Rejection ≥70dB Shenzhen Excera Technology Co., Ltd. warrants the Excera manufactured products listed below against defects in material and Digital: 400-480Mhz Frequency Range workmanship under normal use and service for a period of time from the date of purchase as scheduled below: Blocking 84db Analog: 400-480Mhz... - Page 19 Warranty Card Purchase Information Customer Name: Customer Phone: Customer Address: Purchase Date: Radio Information Model Number: Serial Number: Note: This warranty card applies to after-sale and maintenance services for the product and accessories described above. ● You must provide this warranty card and purchase invoice in order to get warranty services. ●...
