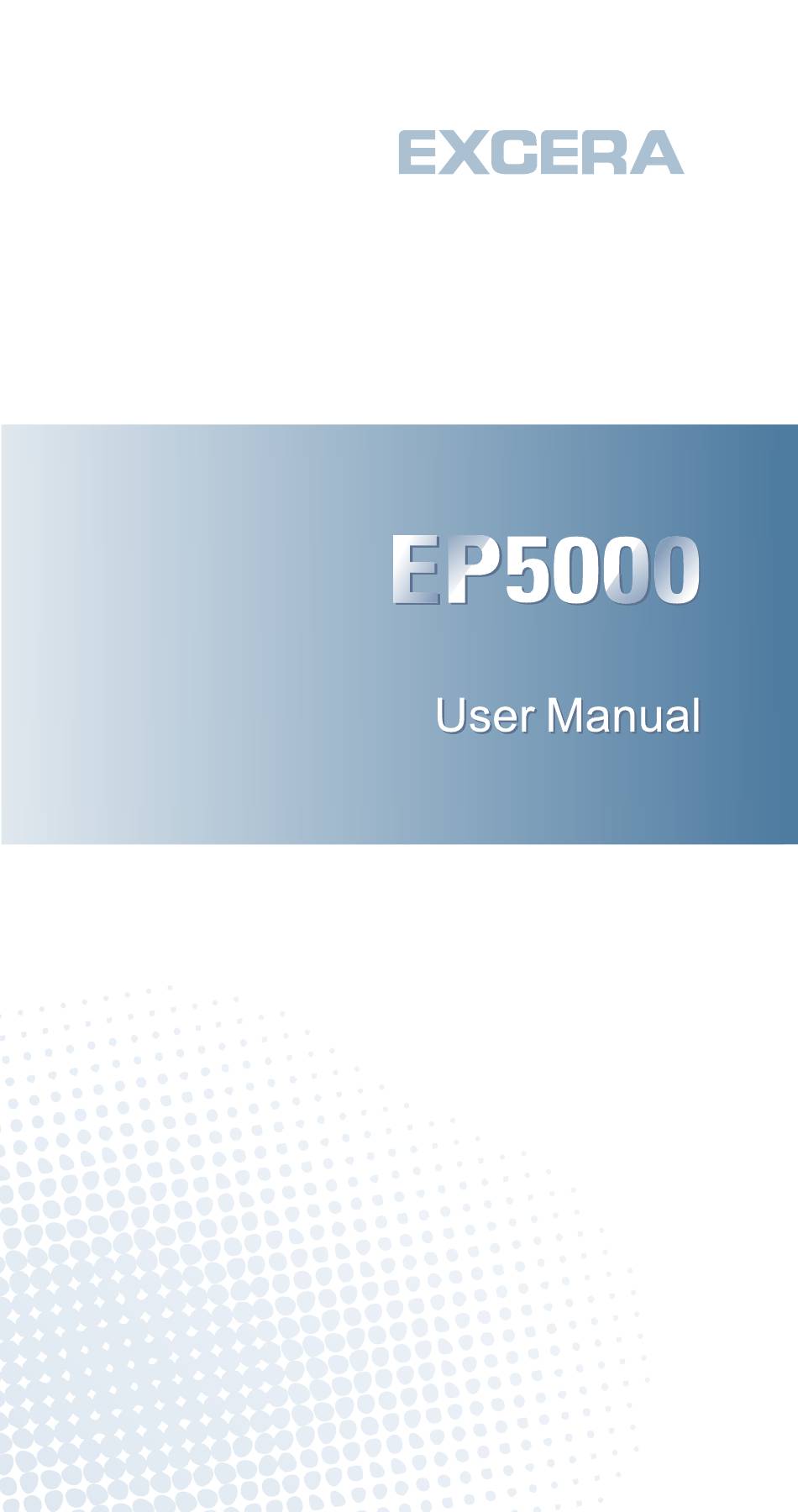

- Page 1 Digital Portable Radio Digital Portable Radio...
-
Page 2: Alert Icon
This manual helps you quickly get basic operations of our digital portable radio. Before using this product, please read this manual carefully. Alert Icon Caution: Indicates situations that could cause human injury or damage to your products. Note: Indicates tips that can help you make better use of your products. -
Page 3: Getting Started

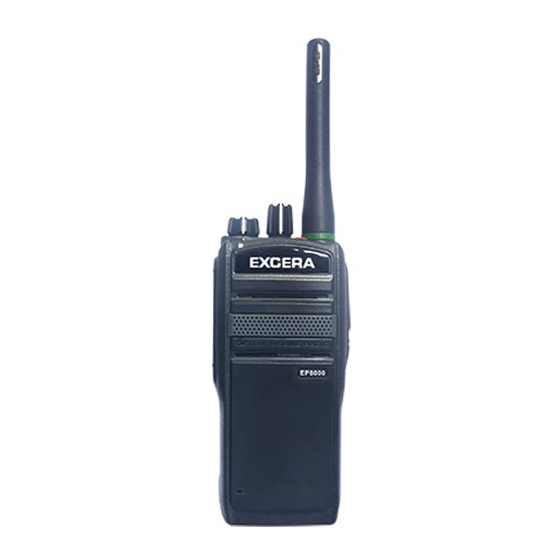

Getting Started Radio Controls Part Name Part Name PTT Key Channel/ Group Selector Knob Side Key 1 (SK1) Side Key 2 (SK2) Radio On-Off/ Volume Control Knob Antenna Top Key (TK) LED Indicator Speaker Accessory Jack Battery Microphone... -
Page 4: Basic Operations
Radio Status Indication LED Indicator LED Indicator Radio Status LED flashes green slowly. None LED flashes green rapidly. Upgrading or powering on LED glows green. Receiving LED flashes red slowly. Low battery LED flashes red rapidly. None LED glows red. Transmitting LED flashes orange slowly. - Page 5 Selecting a Zone A zone is a group of channels exhibiting the same property. The radio supports 32 zones and each zone contains 128 channels at most. You can select a zone by pressing the programmed Zone Up or Zone Down key, and you will hear the correspond warning tone when switching to the zone.
- Page 6 Receive a Call or Call Back When receiving a private call, you may answer the call without any operation, and press the PTT key in preset time to call back. Group Call A group call refers to a call from an individual radio to a group of radios in standby status.
- Page 8 Major Technical Specification Operation Frequency Range: From 400MHz to 470MHz Analog: FM Modulation Type: Digital: 4FSK Analog: 12.5kHz Channel Separation: Digital: 12.5kHz Rated Output Power: High: 4.2W Low: 1.2W Bluetooth Version: Supported BT4.0 EDR+BLE Modulation: GFSK, π/4DQPSK, 8DPSK Operation frequency: 2402MHz~2480MHz 79 Channel for EDR Channel number:...
- Page 9 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
