- Page 1 User Manual TPUH411 HDBaseT Extender All Rights Reserved Version: TPUH411_2016V1.1...
- Page 2 TPUH411 HDBaseT Extender Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. The functions described in this version are updated till August 2016.
- Page 3 TPUH411 HDBaseT Extender SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment ...
-
Page 4: Table Of Contents
TPUH411 HDBaseT Extender Table of Contents 1. Introduction ......................... 1 1.1 Introduction to TPUH411 ................... 1 1.2 Features ......................1 1.3 Package Contents ..................... 1 2. Panel Description ......................2 2.1 TPUH411T ......................2 2.2 TPUH411R ......................3 3. System Connection ..................... 5 3.1 Usage Precautions .................... -
Page 5: Introduction

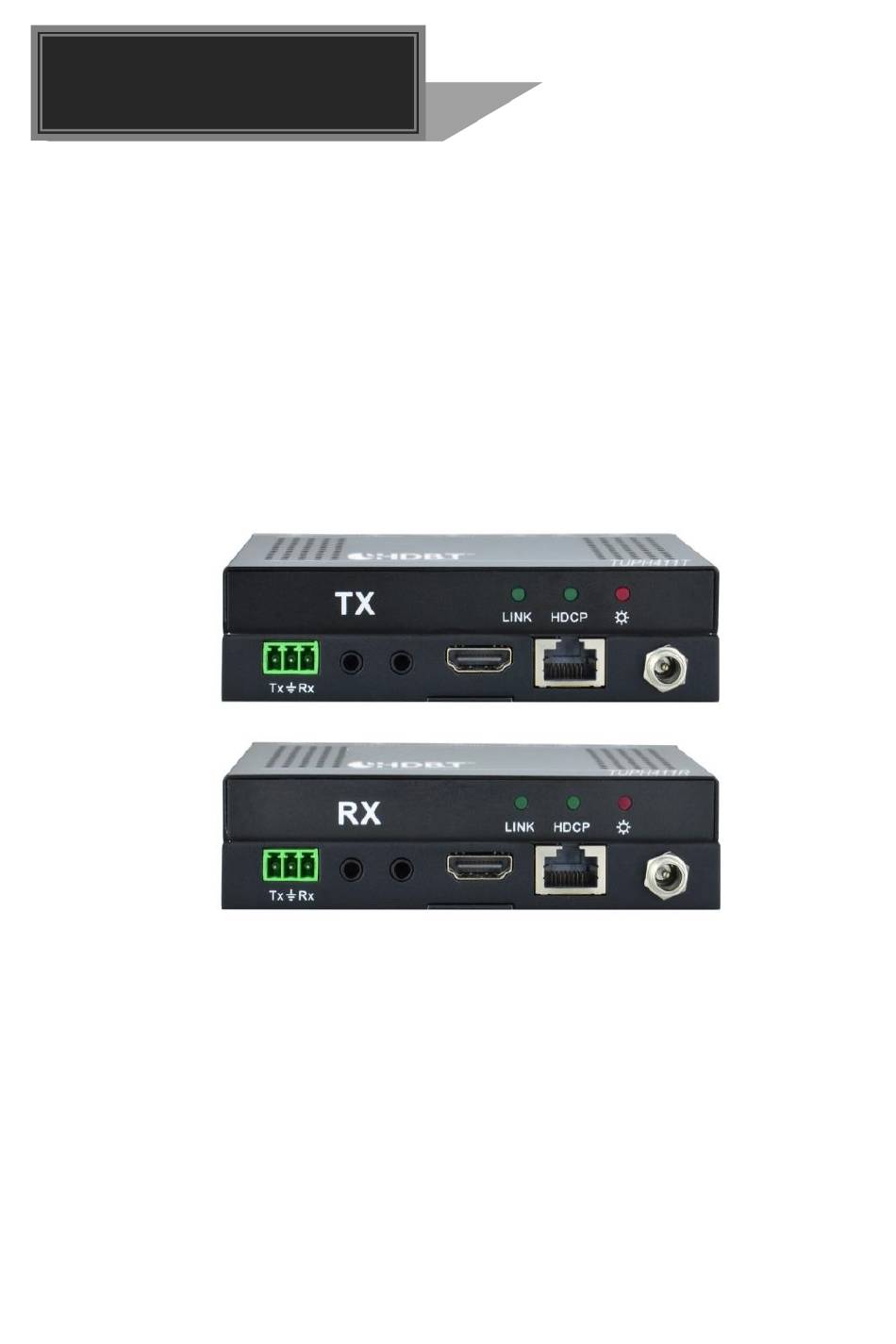

1. Introduction 1.1 Introduction to TPUH411 TPUH411 is a mini-size HDBaseT Extender set consists of transmitter (TPUH411T) and receiver (TPUH411R). HDBaseT technology is used to transmit high-resolution 1080p/ 4k signal from transmitter to the receiver via a CAT5e/CAT6a cable at a distance of up to 70/40m.Moreover, TPUH411 support CEC, bi-directional RS232&IR control, and... -
Page 6: Panel Description
TPUH411 HDBaseT Extender 2. Panel Description 2.1 TPUH411T LINK HDCP RS232 Name Description HDBT Link status indicator: OFF: No Link ① LINK GREEN:Link Successful Blinking GREEN: Link abnormal HDCP compliant indicator OFF: No HDMI traffic (no picture) ②... -
Page 7: Tpuh411R
TPUH411 HDBaseT Extender Connect to the HDBT IN socket on the TPUH411R via CAT5e/ ⑧ HDBT OUT CAT6a cable, support unidirectional PoH. ⑨ DC 24V Connect with power supply Pictures shown in this manual are only for reference. 2.2 TPUH411R... - Page 8 TPUH411 HDBaseT Extender Connect with 5V IR Emitter to send infrared signal, work with ⑥ IR OUT far-end IR IN port ⑦ HDMI OUT Connect with HDMI display Connect to the HDBT OUT socket on the TPUH411T via CAT5e/ ⑧...
-
Page 9: System Connection
TPUH411 HDBaseT Extender 3. System Connection 3.1 Usage Precautions 1) System should be installed in a clean environment and has a prop temperature and humidity. 2) All of the power switches, plugs, sockets and power cords should be insulated and safety. -
Page 10: Application
Step6. Connect with DC24V power adaptor(s) (One is enough if TPUH411T is connected with adapter as its PoH function). 3.4 Application TPUH411 has a good application in various occasions, such as computer realm, monitoring, big screen displaying, meeting room, education and bank & securities institution etc. -
Page 11: Specification
TPUH411 HDBaseT Extender 4. Specification Model TPUH411T TPUH411R Spec Input Input Signal 1 HDMI,1 IR & 1 RS232 1 IR, 1 RJ-45 & 1 RS232 HDMI female, 3.5mm mini 3.5mm mini jack, RJ-45, 3p Input Connector jack, 3p captive screw... -
Page 12: Supported Resolution
1280x720 60Hz 1024x576 60Hz 1920x1200 60Hz 1680x1050 60Hz 16:10 1360x768 60Hz 1280x800 60Hz 1600x1200 60/65/70/75/85Hz 1280x1024 60/75/85/96Hz 1024x768 60/70/75/85Hz 800x600 56/60/72/75/85Hz 640x480 60/72/75Hz Note: TPUH411 supports 4k HDMI signal, please adopt quality HDMI cables compliant with HDMI2.0 for reliable transmission. -
Page 13: Panel Drawing
TPUH411 HDBaseT Extender 5. Panel Drawing HDBT OUT 115 mm R 232 5-1 TPUH411T HDBT IN 115 mm R 232 5-2 TPUH411R... -
Page 14: Troubleshooting & Maintenance
TPUH411 HDBaseT Extender 6. Troubleshooting & Maintenance No image on display: Ensure that the display device has been set to the correct input. Ensure that the HDMI cables used for both the source/transmitter and the receiver/display are properly connected and are working. Test the HDMI cables directly from a source to display and ensure their operation. -
Page 15: After-Sales Service
Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: AV-BOX warrants that its products will be free from defects in materials and workmanship for three years, which starts from the first day the product leaves warehouse (check the SN mark on the product).
