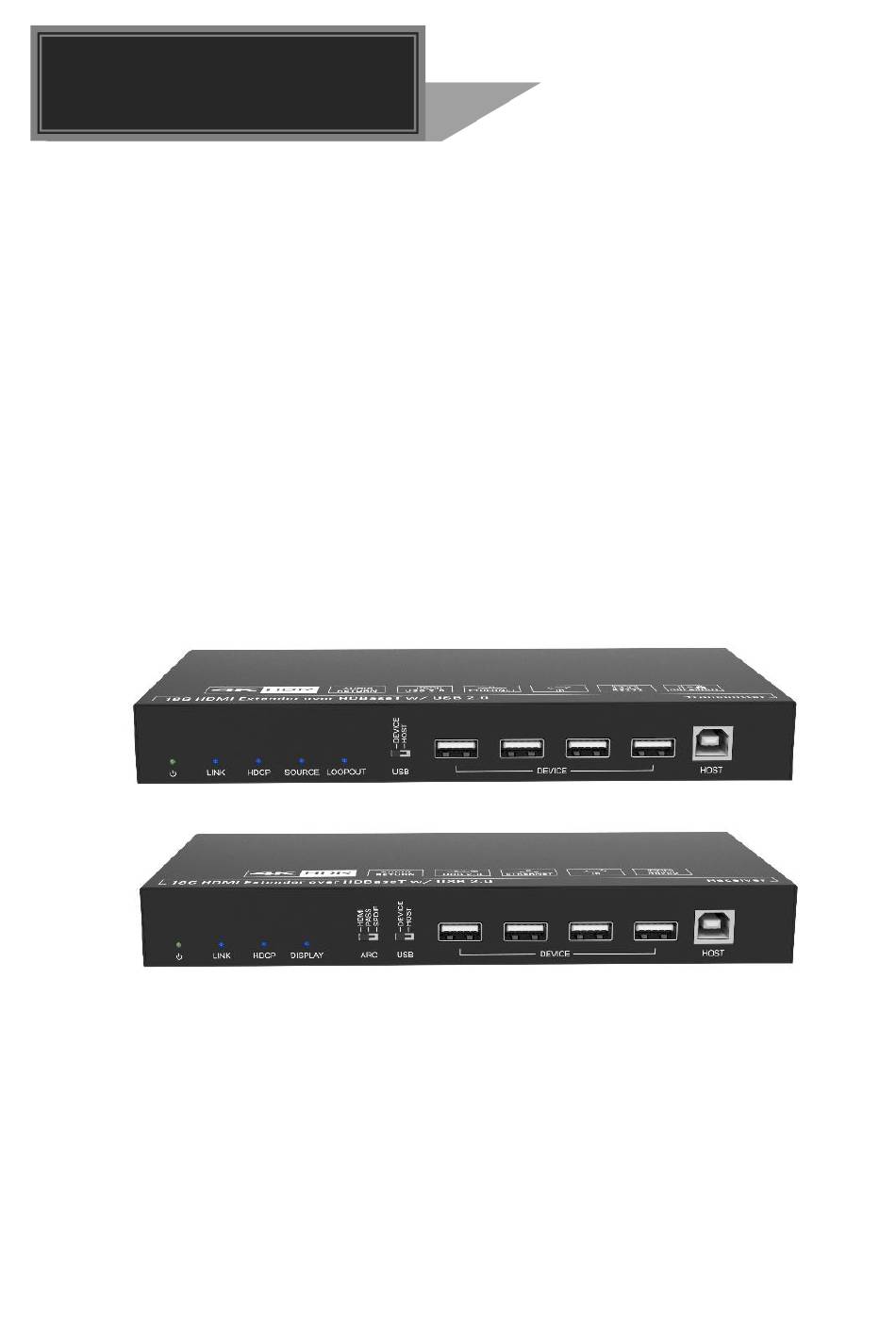

- Page 1 User Manual AV-BOX TPUH503 18G HDMI Extender over HDBaseT with USB 2.0 All Rights Reserved AV-BOX.RU Version: TPUH640_2021V1.1...
-
Page 2: Product Introduction
Product Introduction Thanks for choosing the 18G HDMI Extender, which consists of a transmitter and a receiver. It can extend 4K or 1080p video to distance up to 262 feet (80 meters) over a single CAT6A cable without compression. It supports audio de-embedding and ARC. It also supports bi-directional IR, USB and RS232 pass-through control and Ethernet extension. - Page 3 Panel Description Transmitter Front Panel LINK HDCP SOURCE LOOPOUT HOST ① POWER LED: Illuminates green when power is applied, or blinks when in firmware upgrade mode. ② LINK LED: Illuminates when there is a valid HDBaseT link between the transmitter and the receiver.
-
Page 4: Transmitter Rear Panel
Transmitter Rear Panel ① ETHERNET: Used for Ethernet extension together with the ETHERNET port of receiver. ② HDBT OUT: RJ45 port to connect the HDBT input port of receiver by CAT6A Ethernet cable. The LINK LED illuminates when there is a valid HDBaseT link between the transmitter and the receiver. -
Page 5: Receiver Front Panel
Receiver Front Panel LINK HDCP DISPLAY HOST ① POWER LED: Illuminates green when power is applied, or blinks when in firmware upgrade mode. ② LINK LED: Illuminates when there is a valid HDBaseT link between the transmitter and the receiver. ③... -
Page 6: Receiver Rear Panel
Receiver Rear Panel ① ETHERNET: Used for Ethernet extension together with the ETHERNET port of transmitter. ② HDBT IN: RJ45 port to connect the HDBT output port of transmitter by CAT6A Ethernet cable. The LINK LED illuminates when there is a valid HDBaseT link between the transmitter and the receiver. -
Page 7: System Connection
System Connection When ARC switch is selected to HDMI, and the TV supports ARC, the TV audio can be transmitted back to the transmitter via HDMI output port of receiver, and then it will be output by the ARC OUT & HDMI Source port of transmitter. CEC pass-through is not supported in this mode. -
Page 8: Technical Specification
Technical Specification Transmitter Receiver Video Input (1) SOURCE (1) HDBT IN Input Connector (1) Type-A female HDMI (1) RJ45 Input Resolution Up to 4K@60Hz 4:4:4 Up to 4K@60Hz 4:4:4 Output (1) HDBT OUT, (1) LOOP OUT (1) DISPLAY Output Connector (1) RJ45, (1) Type-A female HDMI (1) Type-A female HDMI Output Resolution... - Page 9 (1) 3-pin Terminal Block, (1) 3-pin Terminal Block, (1) RJ45 (1) RJ45 General Bandwidth 18Gbps HDMI Standard Input: HDCP 2.2, HDCP 1.4 compliant HDCP Version Loopout: Follows the display’s HDCP version. RX Output: Follows the source’s HDCP version. Pass-through (when ARC switch is selected to PASS or SPDIF) Bi-directional PoC Supported HDMI V2.0 Cable Length...
