User Manual
TPUH-BYE20
4K HDMI Extender
All Rights Reserved
Version: TPUH-BYE20_2019V1.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TPUH-BYE20 and is the answer not in the manual?

Questions and answers

Related Manuals for AV-Box TPUH-BYE20

Summary of Contents for AV-Box TPUH-BYE20

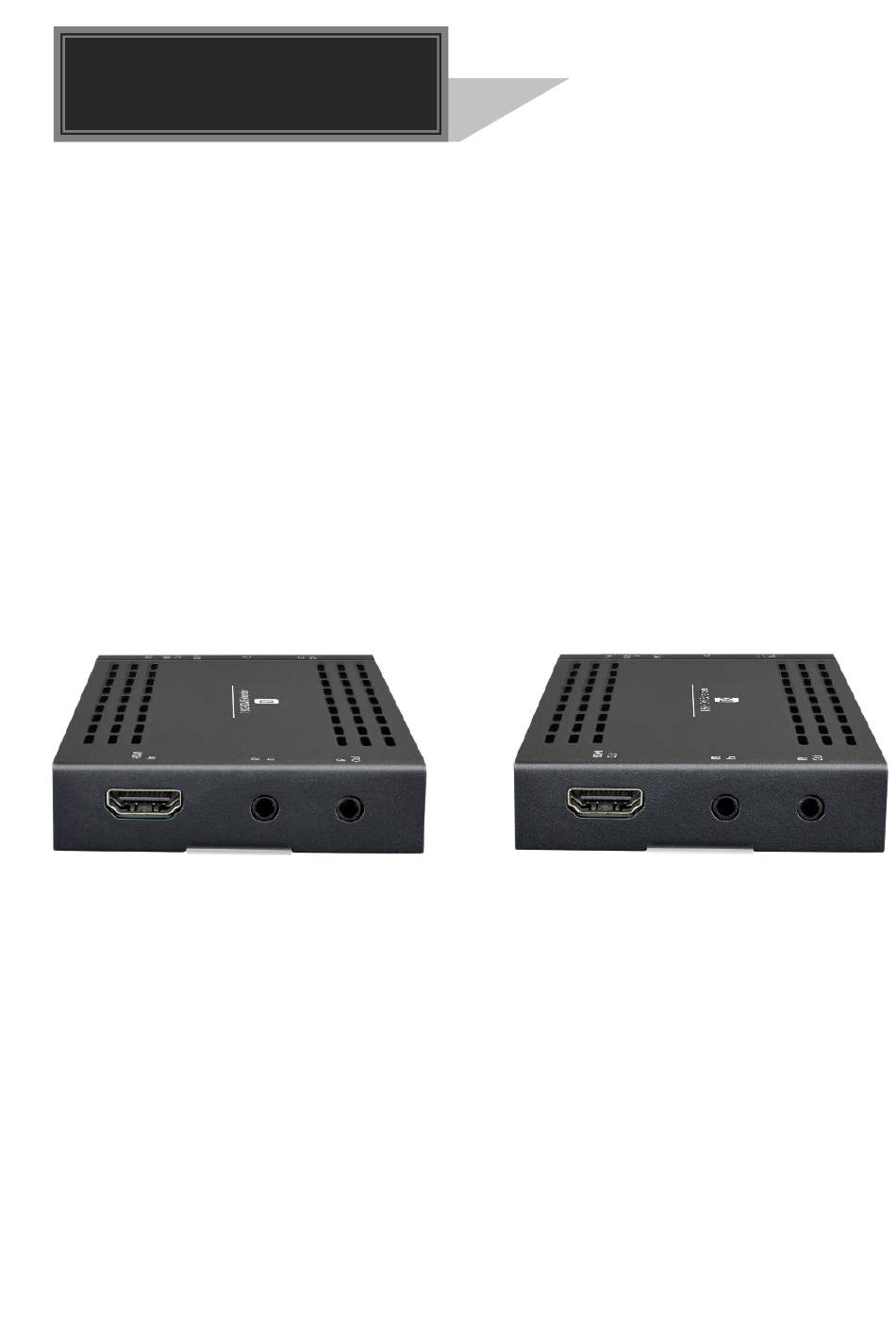

  • Page 1 User Manual TPUH-BYE20 4K HDMI Extender All Rights Reserved Version: TPUH-BYE20_2019V1.1...
  • Page 2 Introduction Thanks for choosing the TPUH-BYE20 extender kit which consists of a transmitter (Tx) and a receiver (Rx). It allows to extend a 4K@60Hz 4:4:4 HDMI signal to distance up to 131ft/40m and 1080P@60Hz up to 230ft/70m over a single CATx Ethernet cable. It supports bi-directional 24V Power over Cable (PoC), which simplifies the wiring to allow only a single AC power adapter usage.
  • Page 3 4K HDMI Extender Features  HDMI 2.0 standard and HDCP 2.2 compliant.  Supports video resolution up to 4Kx2K@60Hz 4:4:4.  Transmission distance is up to 131ft/40m for 4Kx2K, and 230ft/70m for 1080P.  Supports bi-directional IR pass-through for long-distance control. ...
  • Page 4 4K HDMI Extender Receiver Panel Description HDMI Out IR In IR Out HDBT In DC 24V Name Description ① HDMI Out Type-A HDMI port to connect an HDMI display. ② IR IN 3.5mm jack to connect an IR receiver (not included). ③...
  • Page 5 4K HDMI Extender Specification Transmitter (Tx) Input (1) HDMI Input Connector (1) Female type-A HDMI Output (1) HDBT Output Connector (1) RJ45 Control (1) IR IN, (1) IR OUT Control Connector (2) 3.5mm mini jacks Receiver (Rx) Input (1) HDBT Input Connector (1) RJ45 Output...
