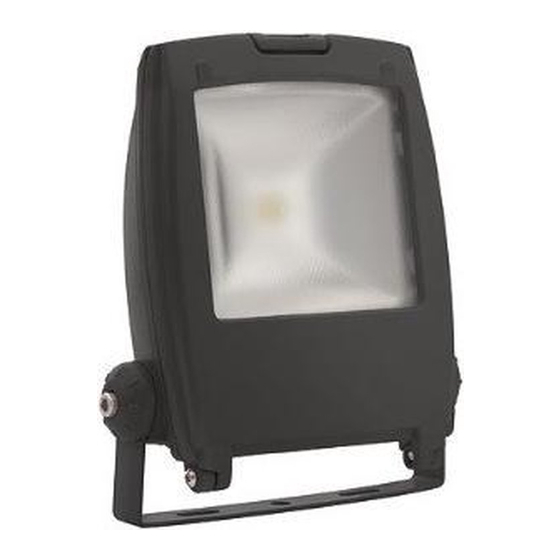

Robus RLEDF30W-24 Instruction Manual

HIGH POWERED LED
FLOOD LIGHT
RLEDF30W-24, RLEDF50W-24
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
! Electrical products can cause death or injury, or damage to property. If in any doubt about the installation or
use of this product, consult a competent electrician
Product technical information and specification may change over time without prior notification
For the latest technical information please visit our web site www.ledgrouprobus.com or robusdirect.com

Specifications

Model No.
RLEDF30W-24
Voltage: 100-240V~50/60Hz
Power: 30W
Lumen:
2000lm
CCT: 3000K
CRI:
70
Beam Angle: 85º
PF: > 0.9
Ta:
-15ºC <Ta < 40ºC
IP Rating: 65
Safety Class: Class I
Depth: 134mm
Width: 204mm
Height:
225mm
Weight: 2.1Kg
Warranty: 3 years
Projection Dist: 15 - 20m
Projection Area: 18 x 10m
Mounting Height:
2.5 - 6m
Compliance with: EN55015,EN60598-1,EN61000-3-2,
EN61000-3-3,EN61347-2-13,EN61547
Information for the Product user:
1. Please note the requirement to dispose of Waste Electrical & Electronic Equipment separately from household waste (WEEE marked with
crossed out wheelie bin symbol).
2. Please consider your role in contributing to re-use and recycling by returning this product at end of life to a collection centre for waste electrical
equipment or a Civic Amenity site, or to a retail outlet from which you are purchasing a replacement.
3. This equipment may contain substances that are hazardous to health and the environment if disposed of carelessly. It is important that it is
separated from normal household waste and recycled in the WEEE chain
4. The "crossed out wheelie bin symbol" on a product indicates this equipment must not be disposed of in normal household waste, but should be
disposed of according to local WEEE regulations
The Installation must be carried out by an electrician
LED Group
Western Retail Park
Nangor Road
Dublin 12
Ireland
Issue 3 031114
RLEDF50W-24
100-240V~50/60Hz
50W
3500lm
4500K
70
85º
> 0.9
15ºC <Ta < 40ºC
65
Class I
143mm
234mm
284mm
2.9Kg
3 years
20 - 25m
25 x 10m
4 - 8m
Tel: +353 1 7099000
Fax: +353 1 7099060
Email: info@led.ie
Website: www.led.ie
Note:

Installation

1. Ensure mains supply is switched off before commencing
work.
2. Select suitable location for luminaire.
3. Mark wall with appropriate fixing positions. Before
drilling, ensure that the hole does not impinge on pipe
work, cables or other building services.
4. Mount luminaire on wall.
5. The luminaire is supplied with 0.5m of rubber cable.
Using suitable IP rated enclosure terminate Brown (Live),
Blue (Neutral) and Green/Yellow (Earth) to switch
supply..
6. This product has no user serviceable parts. If any part is
damaged, disconnect from mains and discontinue use.
Note: No "fixings screws provided', please use
appropriate fixing screws.
INSTRUCTION MANUAL
ISO 9001:2008
Q UAL IT Y ASSU RE D CO MPANY
Page 1
