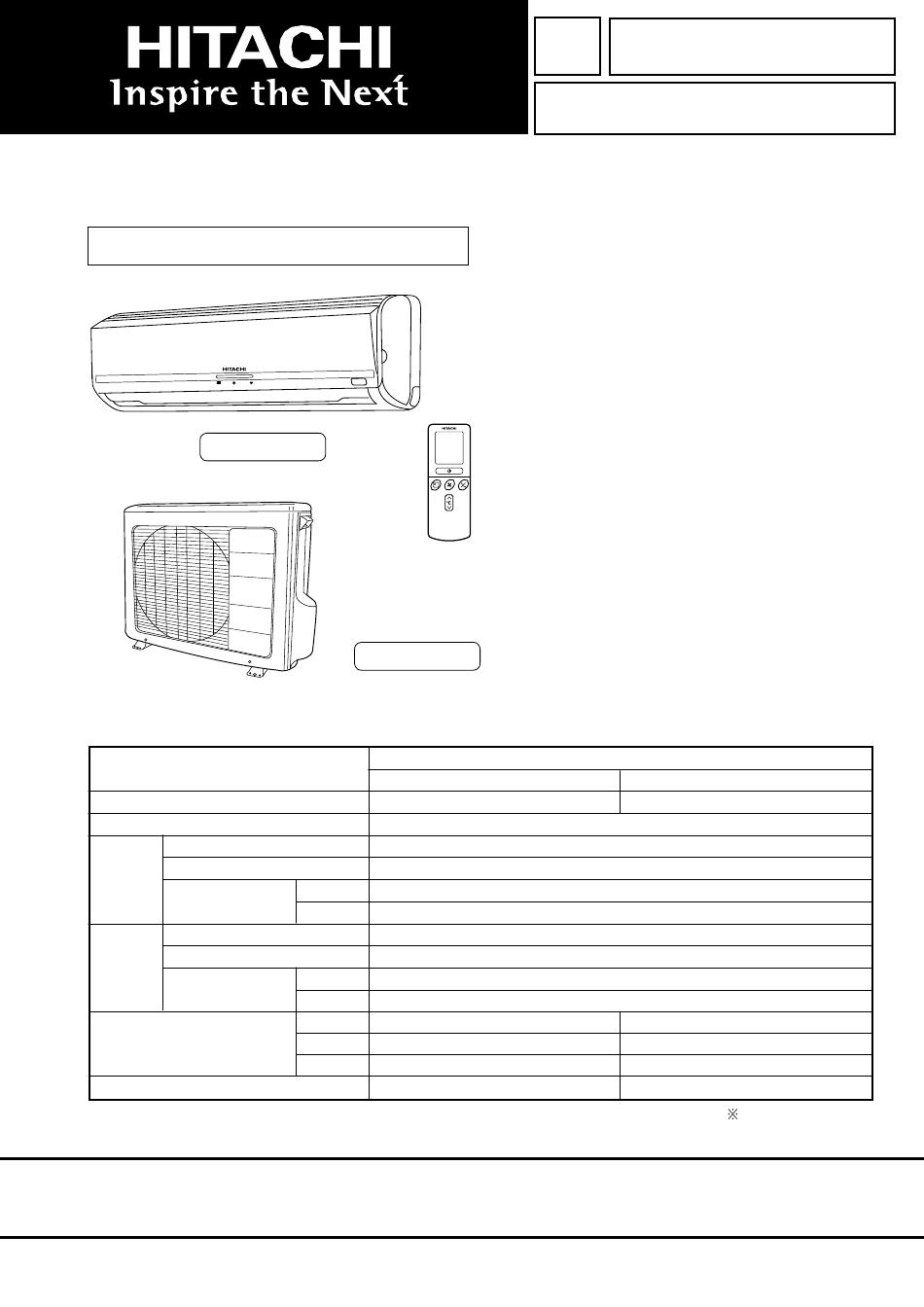

SERVICE MANUAL
TECHNICAL INFORMATION
FOR SERVICE PERSONNEL ONLY
RAS-60YH7
SPECIFICATIONS
TYPE
MODEL
POWER SOURCE
TOTAL INPUT
TOTAL AMPERES
COOLING
CAPACITY
TOTAL INPUT
TOTAL AMPERES
HEATING
CAPACITY
DIMENSIONS
(mm)
NET WEIGHT
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT
ROOM AIR CONDITIONER
FEBRUARY 2012
RAC-60YH7A
INDOOR UNIT
RAS-60YH7
(W)
(A)
(kW)
(B.T.U./h)
(W)
(A)
(kW)
(B.T.U./h)
W
H
D
(kg)
INDOOR UNIT + OUTDOOR UNIT
Refrigeration & Air-Conditioning Division
PM
RAS-60YH7/RAC-60YH7A
REFER TO THE FOUNDATION MANUAL
SPECIFICATIONS ------------------------------------------------------ 5
HOW TO USE ---------------------------------------------------------- 7
MAIN PARTS COMPONENT --------------------------------------31
WIRING DIAGRAM ---------------------------------------------------33
CIRCUIT DIAGRAM --------------------------------------------------35
BLOCK DIAGRAM ----------------------------------------------------44
BASIC MODE ----------------------------------------------------------45
REFRIGERATING CYCLE DIAGRAM---------------------------59
AUTO SWING FUNCTION -----------------------------------------60
SERVICE CALL Q & A ----------------------------------------------74
TROUBLE SHOOTING ----------------------------------------------78
PARTS LIST AND DIAGRAM --------------------------------------98
(WALL TYPE)
1 PHASE, 50/60 Hz, 220-240V
1,850 (155 - 2,300)
8.50 - 7.80
6.00 (0.9 - 6.5)
20,490 (3,070 - 22,190)
1,880 (155 - 2,550)
8.60 - 7.90
6.80 (0.9 - 8.5)
23,210 (3,070 - 29,000)
1030
295
207
12
NO. 0508E
CONTENTS
OUTDOOR UNIT
RAC-60YH7A
850
650
298
45
After installation

Advertisement

Table of Contents
loading

Related Manuals for Hitachi RAS-60YH7

Summary of Contents for Hitachi RAS-60YH7

  • Page 1: Table Of Contents

    NO. 0508E RAS-60YH7/RAC-60YH7A SERVICE MANUAL REFER TO THE FOUNDATION MANUAL TECHNICAL INFORMATION FOR SERVICE PERSONNEL ONLY CONTENTS SPECIFICATIONS ------------------------------------------------------ 5 HOW TO USE ---------------------------------------------------------- 7 CONSTRUCTION AND DIMENSIONAL DIAGRAM ---------29 MAIN PARTS COMPONENT --------------------------------------31 WIRING DIAGRAM ---------------------------------------------------33 CIRCUIT DIAGRAM --------------------------------------------------35...
  • Page 2 SAFETY DURING REPAIR WORK 1. In order to disassemble and repair the unit in question, be sure to disconnect the power cord plug from the power outlet before starting the work. 2. If it is necessary to replace any parts, they should be replaced with respective genuine parts for the unit, and the replacement must be effected in correct manner according to the instructions in the Service Manual of the unit.
  • Page 3 WORKING STANDARDS FOR PREVENTING BREAKAGE OF SEMICONDUCTORS 1. Scope The standards provide for items to be generally observed in carrying and handling semiconductors in relative manufacturers during maintenance and handling thereof. (They apply the same to handling of abnormal goods such as rejected goods being returned). 2.
  • Page 4 (6) Use a three wire type soldering iron including a grounding wire. Metal plate (of aluminium, stainless steel, etc.) Working table Resistor of 1 M (1/2W) Staple Earth wire Bare copper wire (for body earth) Fig. 3. Grounding of the working table Soldering iron Grounding wire...
  • Page 5 CAUTION In quiet or stop operation, slight fl owing noise of refrigerant in the refrigerating cycle is heard occasionally, but this noise is not abnormal for the operation. When it thunders near by, it is recommend to stop the operation and to disconnect the power cord plug from the power outlet for safety.

  • Page 6: Specifications

    SPECIFICATIONS MODEL RAC-60YH7A RAS-60YH7 FAN MOTOR 47 W 30 W FAN MOTOR CAPACITOR FAN MOTOR PROTECTOR – COMPRESSOR JU1015D9 COMPRESSOR MOTOR CAPACITOR OVERLOAD PROTECTOR YES (INTERNAL) OVERHEAT PROTECTOR 3.15A FUSE (for MICROPROCESSOR) 3.15A POWER RELAY POWER SWITCH TEMPORARY SWITCH TEST/SERVICE SWITCH...
  • Page 7 Figure showing the installation of Indoor and Outdoor unit Be sure to completely seal any gap ● The difference in height between the indoor and outdoor unit should be kept max 20m. ● The connecting pipe, no matter big or small, should all be insulated with insulation pipe and then wrapped with vinyl...
  • Page 8 OUTDOOR UNIT DRAIN PIPE Condensed water drain to outside. CONNECTING CORD AND INSULATION PIPE FOR PIPING AIR INLET (BACK AND LEFT SIDE) AIR OUTLET MODEL NAME AND DIMENSIONS MODEL WIDTH (mm) HEIGHT (mm) DEPTH (mm) RAS-60YH7 1030 RAC-60YH7A – 7 –...
  • Page 9 INDOOR UNIT INDICATORS TIMER LAMP This lamp lights when the timer is working. OPERATION LAMP This lamp lights during operation. The OPERATION LAMP fl ashes in the following cases during heating. (1) During preheating For about 2–3 minutes after starting up. (2) During defrosting Defrosting will be performed about once an hour when frost forms on the heat exchanger of the...
  • Page 10 Note Avoid to use the room air conditioner for cooling operation when the outside temperature is below ● -10°C (14°F). The recommended maximum and minimum operating temperatures of the hot and cold sides should be as below: Cooling Heating Minimum Maximum Minimum Maximum...
  • Page 11 SAFETY PRECAUTION ● Please read the “Safety Precaution” carefully before operating the unit to ensure correct usage of the unit. Pay special attention to signs of “ Warning” and “ Caution”. The “Warning” section contains matters which, if not ● observed strictly, may cause death or serious injury.
  • Page 12 PRECAUTIONS DURING OPERATION The product shall be operated under the manufacturer specifi cation and ● not for any other intended use. Do not attempt to operate the unit with wet hands, this could cause fatal ● accident. When operating the unit with burning equipments, regularly ventilate the ●...
  • Page 13 NAMES AND FUNCTIONS OF REMOTE CONTROL UNIT REMOTE CONTROLLER This controls the operation of the indoor unit. The range of control is about 7 meters. If indoor lighting is controlled ● electronically, the range of control may be shorter. This unit can be fi xed on a wall using the fi xture provided. Before fi xing it, make sure the indoor unit can be controlled from the remote controller.
  • Page 14 ■ Auto Restart Control ● If there is a power failure, operation will be automatically restarted when the power is resumed with previous operation mode and airfl ow direction. (As the operation is not stopped by remote controller.) ● If you intend not to continue the operation when the power is resumed, switch off the power supply. When you switch on the circuit breaker, the operation will be automatically restarted with previous operation mode and airfl...
  • Page 15 HEATING OPERATION ● Use the device for heating when the outdoor temperature is under 21°C. When it is too warm (over 21°C), the heating function may not work in order to protect the device. In order to keep reliability of the device, please use this device above -15°C of the outdoor temperature. ●...
  • Page 16 DEHUMIDIFYING OPERATION Use the device for dehumidifying when the room temperature is over 16°C. When it is under 15°C, the dehumidifying function will not work. Press the FUNCTION selector so that the display indicates (DEHUMIDIFY). The FAN SPEED is set at LOW or SILENT. Set the desired room temperature with the TEMPERATURE button (the display indicates the setting).
  • Page 17 COOLING OPERATION Use the device for cooling when the outdoor temperature is –10°C~ 43°C. If in doors humidity is very high (80%), some dew may form on the air outlet grille of the indoor unit. Press the FUNCTION selector so that the display indicates (COOL).
  • Page 18 FAN OPERATION You can use the device simply as an air circulator. Use this function to dry the interior of the indoor unit at the end of summer. Press the FUNCTION selector so that the display indicates (FAN). Press the (FAN SPEED) button.
  • Page 19 HOW TO SET THE TIMER TIME OFF TIMER ON TIMER RESERVE CANCEL Press the Set the current Set the Press the (TIME) (TIME) button. time with the button again. (TIME) button. After you TIMER control button. The time indication starts change or lighting instead of fl...
  • Page 20 Press the Press the Set the Set the Point the signal (ON-OFF) turn-off time turn-on time window of the remote (ON- button so that with the with the controller toward the TIMER) button (OFF) TIMER control TIMER control indoor unit, and press so that the mark blinks.
  • Page 21 HOW TO SET THE SLEEP TIMER Set the current time at fi rst if it is not set before (see the pages for setting the current time). Press the (SLEEP) button, and the display changes as shown below. Mode Indication 1 hour 2 hours 3 hours...
  • Page 22 HOW TO EXCHANGE THE BATTERIES IN THE REMOTE CONTROLLER Remove the cover as shown in the fi gure and take out the old batteries. Install the new batteries. The direction of the batteries should match the marks in the case. CAUTION 1.
  • Page 23 THE IDEAL WAYS OF OPERATION Suitable Room Temperature Install curtain or blinds Warning It is possible to reduce heat Freezing temperature entering the is bad for health and a room through waste of electric power. windows. Ventilation Effective Usage Of Timer At night, please use the “OFF or ON timer Caution operation mode”, together with your wake up...
  • Page 24 FOR USER’S INFORMATION The Air Conditioner And The Heat Source In The Room Caution If the amount of heat in the room is above the cooling capability of the air conditioner (for example: more people entering the room, using heating equipments and etc.), the preset room temperature cannot be achieved.
  • Page 25 ATTACHING THE AIR PURIFYING FILTERS CAUTION Cleaning and maintenance must be carried out only by qualifi ed service personnel. Before cleaning, stop operation and switch off the power supply. Open the front panel. Pull up the front panel by holding it at both sides ●...
  • Page 26 MAINTENANCE CAUTION Cleaning and maintenance must be carried out only by qualifi ed service personnel. Before cleaning, stop operation and switch off the power supply. PRE-FILTER Clean the pre-fi lter, as it removes dust inside the room. In case the pre-fi lter is full of dust, the air fl...
  • Page 27 Washable Front Panel Remove the front panel and wash with clean water. ● Wash it with a soft sponge. After using neutral detergent, wash thoroughly with clean water. When front panel is not removed, wipe it with a ● soft dry cloth. Wipe the remote controller thoroughly with a soft dry cloth.
  • Page 28 CAUTION Cleaning and maintenance must be carried out only by qualifi ed service personnel. Before cleaning, stop operation and switch off the power supply. 3. MAINTENANCE BEFORE LONG OFF PERIOD ● Run the unit by setting the operation mode to (COOL), the temperature to 32°C and the fan speed to HI for about half a day on a fi...
  • Page 29 AFTER SALE SERVICE AND WARRANTY WHEN ASKING FOR SERVICE, CHECK THE FOLLOWING POINTS. CONDITION CHECK THE FOLLOWING POINTS If the remote controller is Do the batteries need replacement? ● not transmitting a signal. Is the polarity of the inserted batteries correct? ●...

  • Page 30: Construction And Dimensional Diagram

    CONSTRUCTION AND DIMENSIONAL DIAGRAM MODEL RAS-60YH7 – 29 –...
  • Page 31 CONSTRUCTION AND DIMENSIONAL DIAGRAM MODEL RAC-60YH7A – 30 –...

  • Page 32: Main Parts Component

    MAIN PARTS COMPONENT THERMOSTAT (Room Temperature Thermistor) Thermostat Specifi cations MODEL RAS-60YH7 THERMOSTAT MODEL OPERATION MODE COOL HEAT 15.6 (60.1) 20.0 (68.0) INDICATION 15.3 (59.5) 20.7 (69.3) TEMPERATURE 23.6 (74.5) 28.0 (82.4) INDICATION °C (°F) 23.3 (73.9) 28.7 (83.7) 31.6 (88.9) 36.0 (96.8)
  • Page 33 COMPRESSOR MOTOR Compressor Motor Specifi cations MODEL RAC-60YH7A COMPRESSOR MODEL JU1015D9 PHASE SINGLE RATED VOLTAGE AC 220 ~ 240 V RATED FREQUENCY 50 Hz POLE NUMBER CONNECTION 20°C 2M = 1.2984 (68°F) RESISTANCE VALUE 75°C 2M = 1.7671 (167°F) CAUTION When the Air Conditioner has been operated for a long time with the capillary tubes clogged or crushed or with too little refrigerant, check the color of the refrigerant oil inside the compressor.
  • Page 34 – 33 –...

  • Page 35: Circuit Diagram

    CIRCUIT DIAGRAM Remote Control – 35 –...
  • Page 36 CIRCUIT DIAGRAM MODEL RAS-60YH7 – 37 –...
  • Page 37 CIRCUIT DIAGRAM MODEL RAC-60YH7A – 39 –...

  • Page 38: Printed Wiring Board Location Diagram

    PRINTED WIRING BOARD LOCATION DIAGRAM MODEL RAS-60YH7 MAIN P.W.B. Marking on P.W.B COMPONENT SIDE SOLDERING SIDE RECEIVING P.W.B. Marking on P.W.B – 41 –...
  • Page 39 MODEL RAC-60YH7A P.W.B. MAIN – 42 –...
  • Page 40 – 43 –...
  • Page 41 – 44 –...
  • Page 42 – 45 –...
  • Page 43 – 47 –...
  • Page 44 – 49 –...
  • Page 45 – 51 –...
  • Page 46 – 53 –...
  • Page 47 Temperature Calculated difference compressor rpm 1.66 1965 min –1 –1 2135 min 2.33 2300 min –1 2.66 2465 min –1 2635 min –1 3.33 2800 min –1 3.66 2965 min –1 3135 min –1 4.33 3300 min –1 4.66 3465 min –1 3635 min –1...
  • Page 48 Notes: The sleep operation starts when the sleep key is pressed. When the sleep key is set, the maximum compressor speed is limited to WSTD+2000/2, and the indoor fan is set to “sleep Lo”. 30 minutes after the sleep key is set, the sleep shift of set temperature starts. The maximum sleep shift of set temperature is 5°C, and the minimum is 12°C.

  • Page 49: Refrigerating Cycle Diagram

    REFRIGERATING CYCLE DIAGRAM MODEL RAS-60YH7/RAC-60YH7A – 59 –...
  • Page 50 – 60 –...

  • Page 51: Description Of Main Circuit Operation

    DESCRIPTION OF MAIN CIRCUIT OPERATION MODEL RAS-60YH7 1. Reset Circuit – 61 –...
  • Page 52 – 62 –...
  • Page 53 5. Auto Sweep Motor Circuit Fig. 5-1 Auto Sweep Motor Circuit (Horizontal air defl ectors) Fig. 5-1 shows the Auto sweep motor drive circuit; the signals shown in Fig. 5-2 are output from pins ● – of the micro computer. Fig.
  • Page 54 6. Room Temperature Thermistor Circuit Fig. 6-1 shows the room temperature The voltage at A depends on the room ● ● thermistor circuit. temperature as shown in Fig. 6-2. 7. Heat exchanger temperature thermistor circuit The circuit detects the indoor heat ●...
  • Page 55 8. Temporary Switch Fig. 8-1 The temporary switch is used to operate the air conditioner temporarily when the wireless remote control ● is lost or faulty. The air conditioner operates in the previous mode at the previously set temperature. However, when the ●...
  • Page 56 DESCRIPTION OF MAIN CIRCUIT OPERATION 1. Power Circuit – 66 –...
  • Page 57 – 67 –...
  • Page 58 – 68 –...
  • Page 59 – 69 –...
  • Page 60 – 70 –...
  • Page 61 – 71 –...
  • Page 62 – 72 –...
  • Page 63 – 73 –...

  • Page 64: Service Call Q

    SERVICE CALL Q & A – 74 –...
  • Page 65 – 75 –...
  • Page 66 – 76 –...
  • Page 67 – 77 –...

  • Page 68: Trouble Shooting

    TROUBLE SHOOTING – 78 –...
  • Page 69 – 79 –...
  • Page 70 – 80 –...
  • Page 71 – 81 –...
  • Page 72 – 82 –...
  • Page 73 TROUBLESHOOTING WHEN TIMER LAMP BLINKS. MODEL RAS-60YH7 Perform troubleshooting according to the number of times the indoor timer lamp and outdoor LD301 blink. SELF-DIAGNOSIS LIGHTING MODE Blinking of Timer lamp Reason for indication Possible cause Reversing valve defective (1) Reversing valve defective...
  • Page 74 CHECKING INDOOR UNIT ELECTRICAL PARTS MODEL RAC-60YH7A 1. Power does not come on (no operation) – 84 –...
  • Page 75 – 85 –...
  • Page 76 – 86 –...
  • Page 77 – 87 –...
  • Page 78 – 88 –...
  • Page 79 – 89 –...
  • Page 80 – 90 –...
  • Page 81 – 91 –...
  • Page 82 1. Switch OFF main power supply. 2. Short circuit between JW001 and JW002. 3. Switch ON main power supply – LD302 will blink 1 time. 4. (Within 3 minutes) Press Test/Service Switch for 1 second or more. 5. Self-diagnosis result will be shown – LD303 will ON (LIT) and LD301 will be blinking. Then refer to diagnosis table 2.
  • Page 83 – 93 –...
  • Page 84 – 94 –...
  • Page 85 – 95 –...
  • Page 86 CHECKING THE REMOTE CONTROLLER – 96 –...
  • Page 87 – 97 –...

  • Page 88: Parts List And Diagram

    PARTS LIST AND DIAGRAM INDOOR UNIT MODEL : RAS-60YH7 – 98 –...
  • Page 89 MODEL RAS-60YH7 PART NO. Q’TY / UNIT PARTS NAME RAS-60YH7 PMRAS-70YHA CABINET PMRAS-40CNH2 MOUNTING PLATE PMRAS-70YHA FAN MOTOR PMRAS-70YHA TANGENTIAL FAN PMRAS-25CNH2 P-BEARING ASSY PMRAS-51CHA1 FAN MOTOR BASE PMRAS-60YHA2 CYCLE ASSY PMRAS-51CHA1 BEARING COVER PMRAS-18CP5 PIPE SUPPORT PMRAS-70YHA DRAIN PAN ASSY...
  • Page 90 PARTS LIST AND DIAGRAM OUTDOOR UNIT MODEL : RAC-60YH7A – 100 –...
  • Page 91 MODEL RAC-60YH7A PART N0. Q’TY / UNIT PARTS NAME RAC-60YH7A PMRAC-60YHA2 SV-COVER PMRAC-60YH7 COMPRESSOR KPNT1 PUSH NUT RAC-2226HV COMPRESSOR RUBBER PMRAC-50NH4 CONDENSER PMRAC-70YHA1 REVERSING VALVE PMRAC-25NH4 ELECTRICAL EXPANSION COIL PMRAC-50NH4 VALVE (2S) PMRAM-72QH5 VALVE (4S) PMRAC-40CNH2 THERMISTOR (OH) PMRAC-25NH4 OVERHEAT THERMISTOR SUPPORT PMRAC-X13CX OVERLOAD RELAY COVER PMRAC-50YH7A...
  • Page 92 HITACHI RAS-60YH7 / RAC-60YH7A PM NO. 0508E Printed in Malaysia...
