Summary of Contents for Innovative Technology ITNS-400

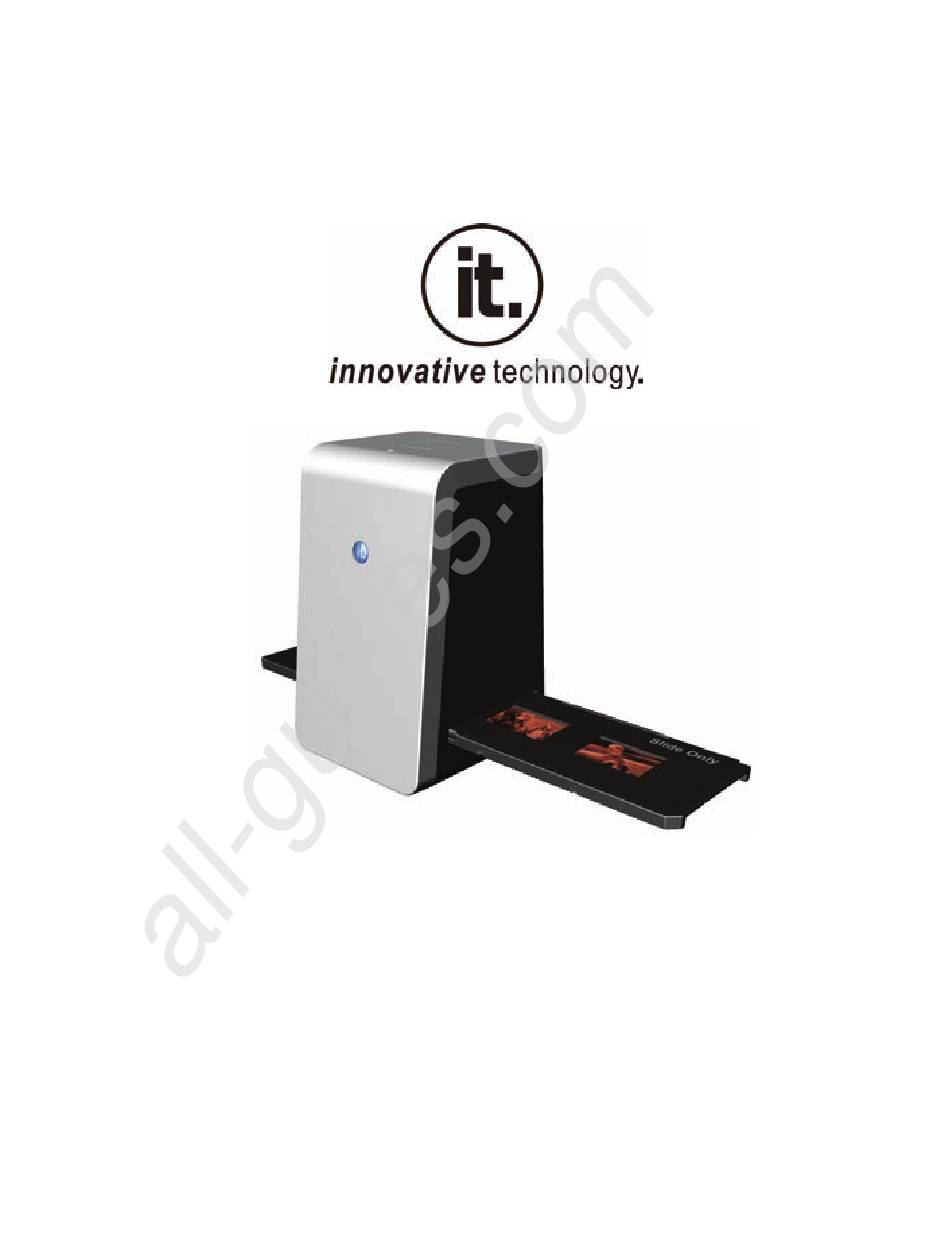

- Page 1 All manuals and user guides at all-guides.com ITNS-400 User Manual ...
- Page 2 All manuals and user guides at all-guides.com...
-
Page 3: Table Of Contents
Unpacking the ITNS-400 ……...……………………………….. 1 II. Installing Film into Holder ...…………………………………... 2 III. Connecting ITNS-400 ..…..…………………………………….. 6 IV. Install Bundled Application …………….….………………….. 7 V. Using the ITNS-400 …………………………..……………..11 VI. Introduction to the User Interface …………………………..15 VII. Specifications …………..……………………………………… 22 Appendix. Clean ITNS-400... -
Page 4: Unpacking The Itns-400
All manuals and user guides at all-guides.com Unpacking the ITNS‐400 Negative Film Holder User Manual ITNS‐400 Slide Film Holder Clean brush Quick Installation Guide CD‐ROM We strongly suggest using a clean, dry, non‐alcohol cotton swab to insert into the film scanner slot and clean the glass surface periodically to produce a clear image. Make Sure all negative films, slide films and cover trays are free of dust and dirt before inserting into the ITNS‐400 as this may affect the image quality when scanning. When cleaning films, please use a professional recommended purger from a photo store to avoid damaging old or precious films. ... -
Page 5: Installing Film Into Holder
All manuals and user guides at all-guides.com Installing film into holder Install the slide into holder: Open the slide holder as illustrated Put slide into positive slide slot 3. Close the film holder ... - Page 6 All manuals and user guides at all-guides.com Install the negative film into holder: Open the film holder as illustrated Install film into negative film slot 3. Close the film holder ...
- Page 7 All manuals and user guides at all-guides.com To avoid mirror image, follow the serial numbers (from left to right) on top of film when install negative film into holder. Figure 1 If the image is upside down [see fig. 2] , the image can be corrected by continuously “Rotate” function in Image Scan Tool after capture [see fig. 3]. ...
- Page 8 All manuals and user guides at all-guides.com Figure 3 ...
-
Page 9: Connecting Itns-400
All manuals and user guides at all-guides.com III. Connecting the ITNS‐400 Plug in USB cable to computer without installing any necessary driver. When the status icon appears in your Windows Task Bar, it will declare "Your device is ready to use". You may now begin using the scanner. -
Page 10: Install Bundled Application
All manuals and user guides at all-guides.com IV. Install bundled application The package bundled with a friendly and easy to use application that has functions for capture, save, delete, mirror, rotate and exposure and color control. Please follow the steps to complete the application installation. ... - Page 11 All manuals and user guides at all-guides.com...
- Page 12 All manuals and user guides at all-guides.com...
- Page 13 All manuals and user guides at all-guides.com ...
-
Page 14: Using The Itns-400
All manuals and user guides at all-guides.com Using the ITNS‐400 Put Film into film holder Insert the holder into ITNS‐400 Make sure USB cable is connected to ITNS‐400 and PC ... - Page 15 All manuals and user guides at all-guides.com On Desktop double click on “Launch Image Scan Tool” icon Click “Image Scan Tool” to enter operation interface as below ...
- Page 16 All manuals and user guides at all-guides.com Press “Copy” hard button to capture the image to store in thumbnail. Click on function of mirror, rotate, color and brightness control to alter image as desired ...
- Page 17 All manuals and user guides at all-guides.com Press Save to store captured images to hard disk. The image seen in the thumbnail window is cleared once saved. Retrieve saved images from the hard disk to further review and edit. ...
-
Page 18: Introduction To The User Interface
All manuals and user guides at all-guides.com VI. Introduction of the User Interface First step is always to select the correct Film Type. Negative Slide B&W ... - Page 19 All manuals and user guides at all-guides.com User can either click on “Snapshot” icon or press the hard key “Copy” touch button to capture images. Captured images will be first stored in the thumbnail bar. Total of 12 thumbnail images are able to store in the bar. ...
- Page 20 All manuals and user guides at all-guides.com Press the “Mirror” icon to flip the Live View image to preview on the Snap Shot window. Or apply the Rotate function by pressing “Rotate” icon. The image will be rotating in 90 degrees clockwise on one single click, continue until the preferred position is set. To manually adjust the image brightness and color level, click on “Color/Brightness ...
- Page 21 All manuals and user guides at all-guides.com Adjustment” icon. A pop up window containing Brightness bar and Color R, G, B bar will show up on screen. Pull the level bar to make the adjustment. ...
- Page 22 All manuals and user guides at all-guides.com To delete an image, select the desired thumbnail image then click on the "Delete" icon. The stored images in thumbnail bar need to be saved to hard disk. The default location in hard disk is at “C:\Documents and Settings\Users\My Documents\My Pictures”. ...
- Page 23 All manuals and user guides at all-guides.com Or user can save to a prefer hard disk location by pressing the directory icon. Another pop up window will show up to select the directory for saving images. Press “Save” icon to save images to hard disk. The thumbnail bar is cleared after save. ...
- Page 24 All manuals and user guides at all-guides.com When completed the capture, user can press “Exit” button to quit this Image Scan Tool. Then, review captured images or process additional modification with bundle software for PC. ...
-
Page 25: Specifications
All manuals and user guides at all-guides.com VII. Specifications Image Sensor: 5 mega CMOS sensor Lens: Precision TM Glass Element Fixed Focus Focus Range: Fixed focus Exposure Control: Automatic, with manual control enhancement Color Balance: Automatic, with manual control enhancement Scan Quality Standard &... -
Page 26: Appendix. Clean Itns-400
All manuals and user guides at all-guides.com Appendix. Clean ITNS400 When viewing without the film holder on the film slot if found any dust dot on live view window, user is able to clean it by using the bundled clean brush to wipe the dust. ... - Page 27 All manuals and user guides at all-guides.com Innovative Technology Electronics Corp. Limited Warranty: 90 Days Labor, One Year Parts Innovative Technology Electronics Corp. (IT) warrants the product to be free from “Defects” in materials under normal use for a period of “One Year” from the date of the original purchase. The Warranty is “Not” transferable. IT agrees, within the initial “90 Day” period, to repair or replace the product if it is determined to be defective at “No Charge”. It is further agreed that IT will cover the cost to repair or replace damaged “Parts” only for a total period of “One Year” from the date of the original purchase. The warranty does not cover cosmetic damage, antennas, AC cords, cabinets, headbands, ear‐pads, or damage due to line power surges, connection to improper voltage supply or settings, misuse, mishandling, accident, acts of God or attempted repair by an unauthorized service agent. To obtain service, the purchaser MUST present an original sales receipt / proof of purchase. Please contact us at www.ithomeproducts.com to request an RMA (Return Material Authorization) number to return products for service or replacement. Returns without an RMA number on the package will be refused and returned to sender. Upon receipt of the returning item and our full inspection (IT) may issue a replacement to customer for the same item or of one that has equivalent value and features. To return an item, supply full name, return address, phone number, item purchased, receipt of purchase and reason for return to obtain RMA number. All returns must be in the original packaging or reasonable substitute to prevent damage. Customer “Must” include full name, shipping address and telephone number inside of package. No return will be shipped back to a PO Box or APO address. Please include your check or money order in the amount of • USD$5.00 for items $10.00 to $39.99 (Price Paid Per Unit) • USD$10.00 for items $40.00 to $99.99. (Price Paid Per Unit) • USD$16.00, for items $100.00 and up. (Price Paid Per Unit) • Shipping fees are non‐refundable to be payable to Innovative Technology Electronics Corp.(for handling and return shipping charges) (IT) will not be responsible for delays or unprocessed claims resulting from a purchaser’s failure to provide any / all of the necessary information. ...
- Page 28 All manuals and user guides at all-guides.com Instructions shall caution users that modifications not approved by the party responsible for compliance could void user's authority to operate the equipment. The following or equivalent as appropriate: “NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
