Bill Acceptor FL Series Service Manual
The FrontLoad bill validator is designed accommodate bills of different sizes from 62 to 82 mm width,
and from 125 to 172 mm length – which encompasses most currencies.
Certain currencies have different widths depending on denomination. For accurate validation of such
currencies, the Validating Head with a centering mechanism should be used. For currencies of a
fixed-width, the Validating Head with a fixed-width path can be used.
Replaceable "Sense-a-Click ™ " sensor pak modules recognize and validate a specific currency, de-
pending on the hardware installed in the sensor pak. The Power Interface module offers different
interface options. The lockable-removable Cassette is used for temporary storage of validated bills. It
can be locked with two standard ¾" tubular locks . The Cassette is available in two sizes: 600 or 1000
bill capacity.

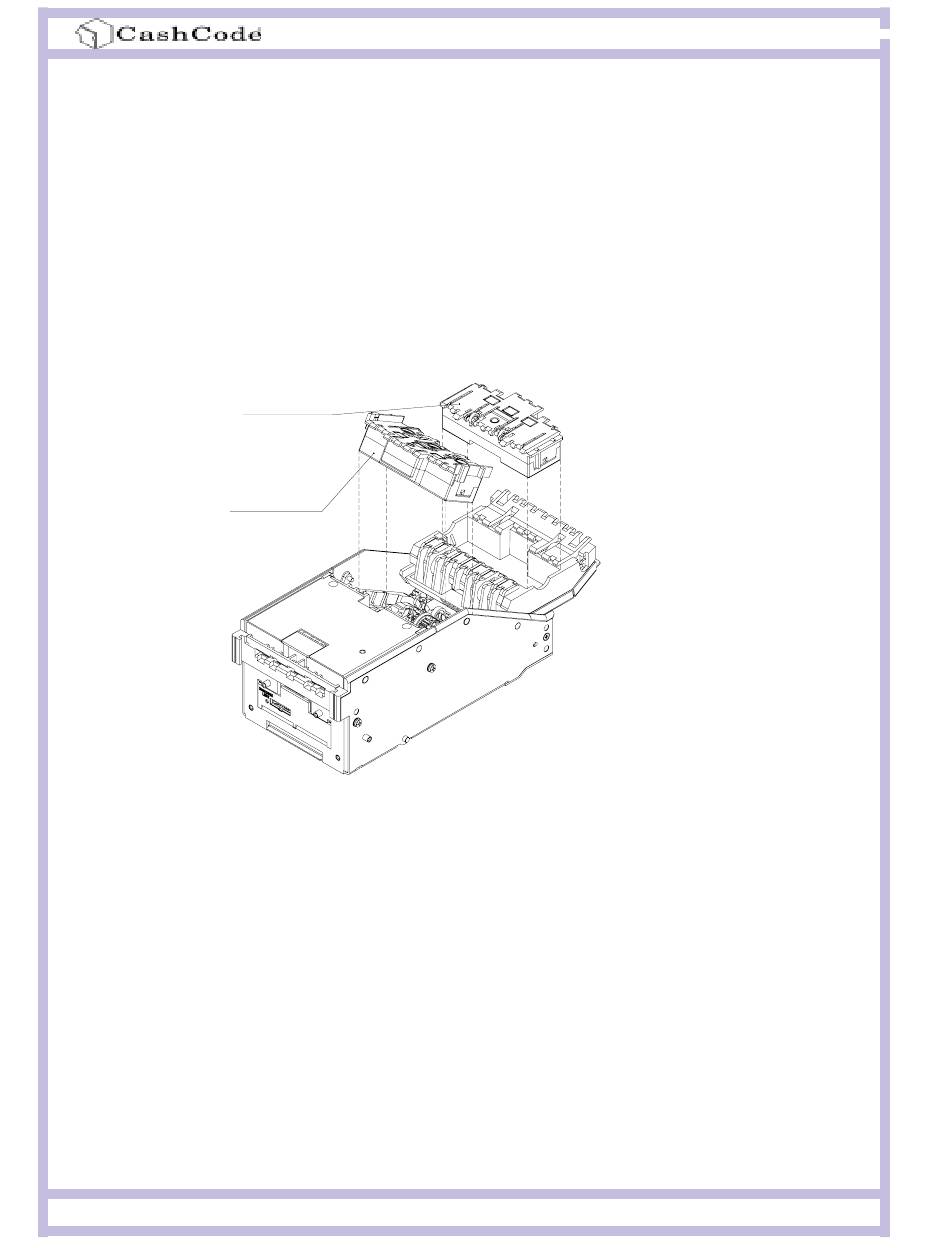

Sense-a-Click
(upper)
Sense-a-Click
(lower)
The Validating Head carries a set of Sense-a-Click ™ sensor pak modules
Bill Capacity (600 or 1000 bills) refers to the amount of new bills that the Cassette can store. This
amount of street grade bills may not be stored, due to their greater space requirement. The Housing
joins all the other modules. Housing is permanently secured inside a Gaming or Vending machine.
There may be a mechanism for locking the Cassette within the Housing (Lock Bracket), or there may
be a Plain Bracket. The Housing also contains security switches, which detect Cassette removal.
Several Bezel styles are available for the FrontLoad. Software updates can be easily completed with a
Memory Card.
This modular design of the FrontLoad validator allows for replacement of failed modules in the field – in
just seconds!
