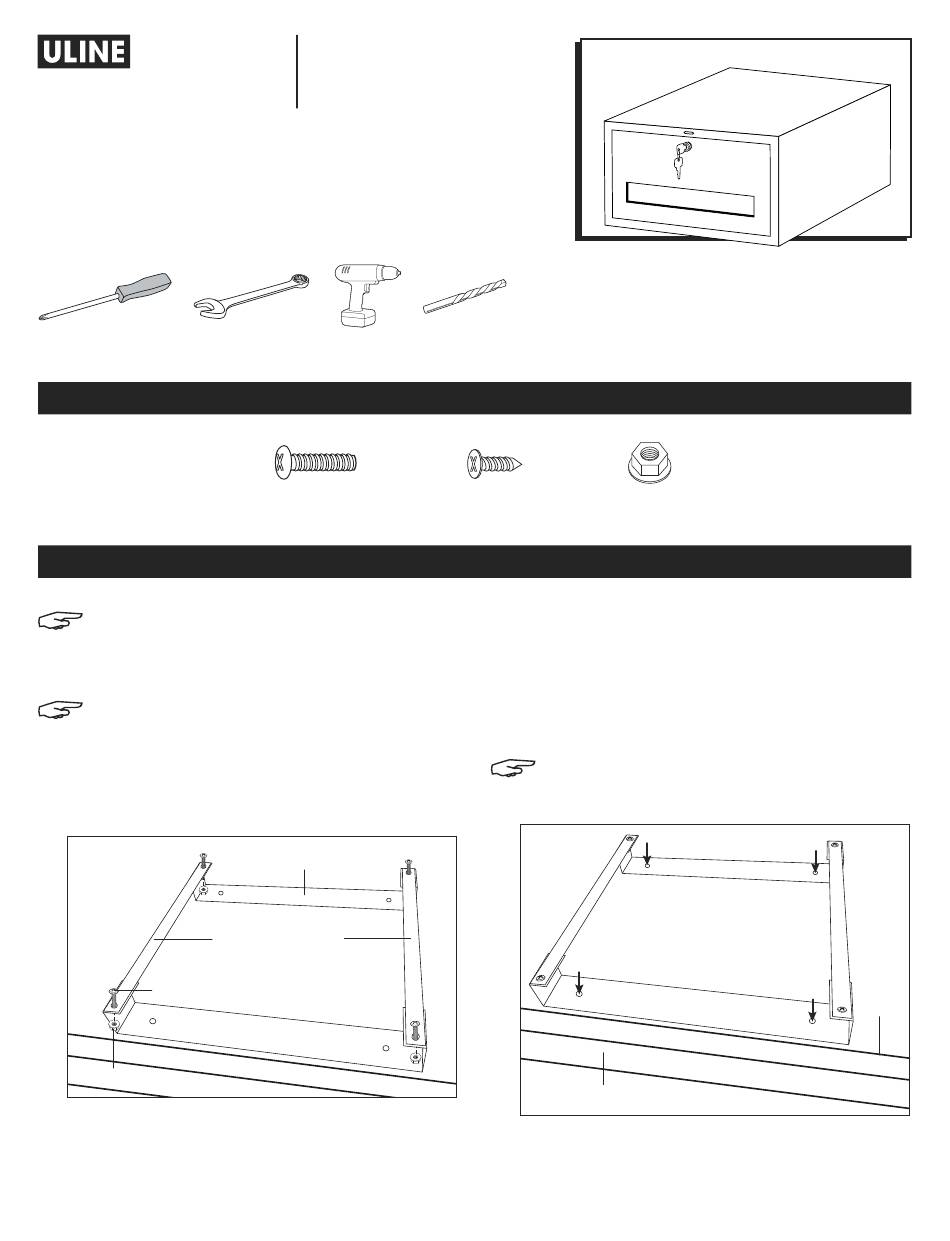

H-9940
PACKING TABLE
DRAWER – HEAVY DUTY
TOOLS NEEDED
Phillips Screwdriver
7/16" Wrench
NOTE: Drawer bracket spacing bars allow
holes in drawer housing to line up with holes
in drawer brackets when attached to the
tabletop.
NOTE: Drawer brackets lower the drawer and
housing in order to clear the workbench frame
when drawer is open.
1. Attach drawer brackets together using the spacing
bars, four Phillips head bolts and four flange nuts.
(See Figure 1)
Figure 1
Phillips Head Bolt
Flange Nut
PAGE 1 OF 6
1-800-295-5510
uline.com
Drill
Phillips Head Bolt x 4
Drawer Bracket
Drawer Bracket
Spacing Bar
5/32" Drill Bit
PARTS
Wood Screw x 4
ASSEMBLY
2. Turn the packing table upside down. Position the
drawer bracket and spacing bar assembly in the
desired drawer mounting location. Use the drawer
bracket as a template to mark the location of the
four holes for wood screws on the underside of the
top. Using a 5/32" drill bit, drill holes into the wood
top about 1/2" to 3/4" deep. (See Figure 2)
NOTE: For drawer to align with frame, attach
front drawer bracket as close as possible to the
inner side of the front frame support bar.
Figure 2
Front Frame Support Bar
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Flange Nut x 4
Inner
Side
1221 IH-9940
