Forever Redwood DEL NORTE Assembly Instructions Manual
Outdoor kitchen pavilions
Hide thumbs
Also See for DEL NORTE:
- Assembly instructions manual (13 pages) ,
- Assembly instructions manual (17 pages)
Subscribe to Our Youtube Channel
Related Manuals for Forever Redwood DEL NORTE
Summary of Contents for Forever Redwood DEL NORTE

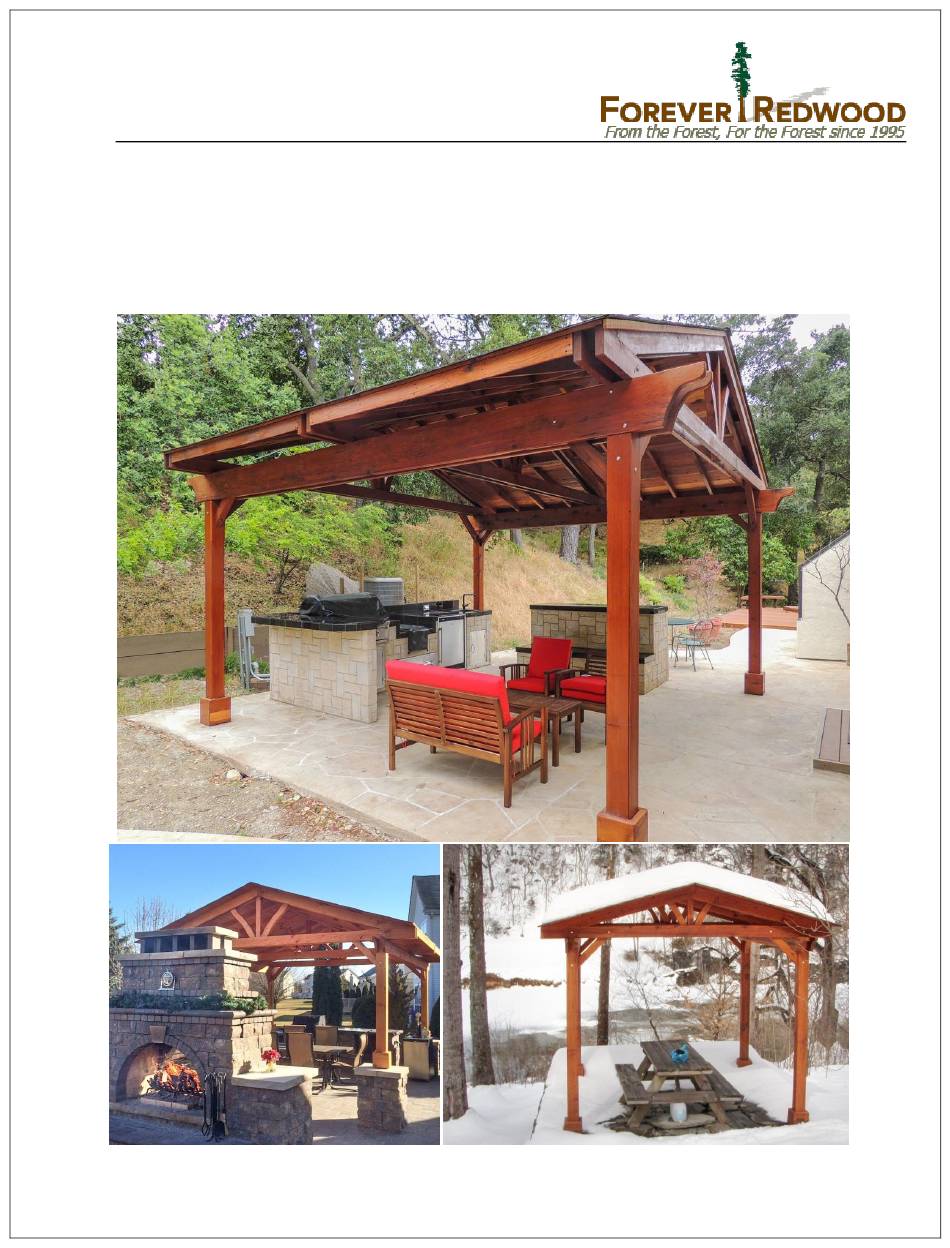

- Page 1 ______________________________________________________ 866.332.2403 (Toll Free); 8am-5pm Pacific Time, Monday-Friday Assembly instructions for: DEL NORTE OUTDOOR KITCHEN PAVILIONS Del Norte Outdoor Kitchen Pavilions www.foreverredwood.com...
- Page 2 Depending on Hardware: Bolts and deck screws Deck Screws Bolts, washers and nuts size Hurricane anchors Anchors (U brackets, Gale Wind (if you ordered) or hurricane anchors) Gale Wind brackets Ceiling Fan base (if chosen) Del Norte Outdoor Kitchen Pavilions www.foreverredwood.com...
- Page 3 Note: print the drawings that you approved before start the construction, they are needed to see the distances between the posts. Step 1. Attach the post to the ground. There are different ways to do it. Please see the How to anchor your pergola document. Del Norte Outdoor Kitchen Pavilions www.foreverredwood.com...
- Page 4 This beam must be in the interior of the support and bolted after you attach the supports to posts as shown below: Attach with carriage bolts, washers and nuts. The quantity of bolts depends on supports length. Beam between the supports Del Norte Outdoor Kitchen Pavilions www.foreverredwood.com...
- Page 5 Repeat this step with the other end arch. 6”x 3/8” Bolt, washers & nut. 8”x 3/8” Bolt, washers & nut. Del Norte Outdoor Kitchen Pavilions www.foreverredwood.com...
- Page 6 Attach roof panels to rafters with post (6 ” x 3/8”) washers & nuts .Tap the bolt all the way into the wood to set it, then add a washer and nut and lightly tighten. The panels are all notched identically. Del Norte Outdoor Kitchen Pavilions www.foreverredwood.com...
- Page 7 This completes the pavilion assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. Del Norte Outdoor Kitchen Pavilions www.foreverredwood.com...
