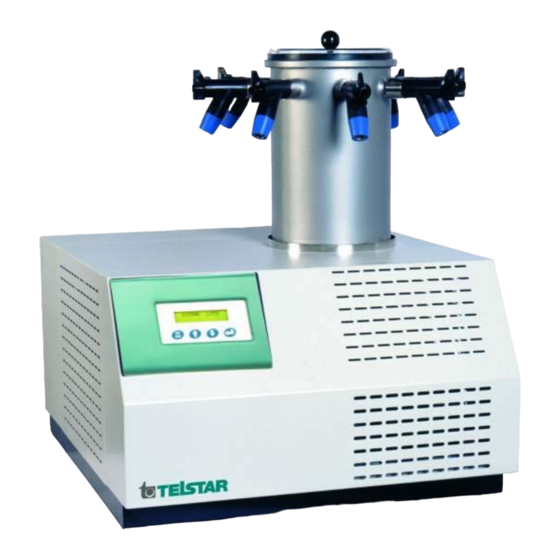

Laboratory freeze dryer

Advertisement

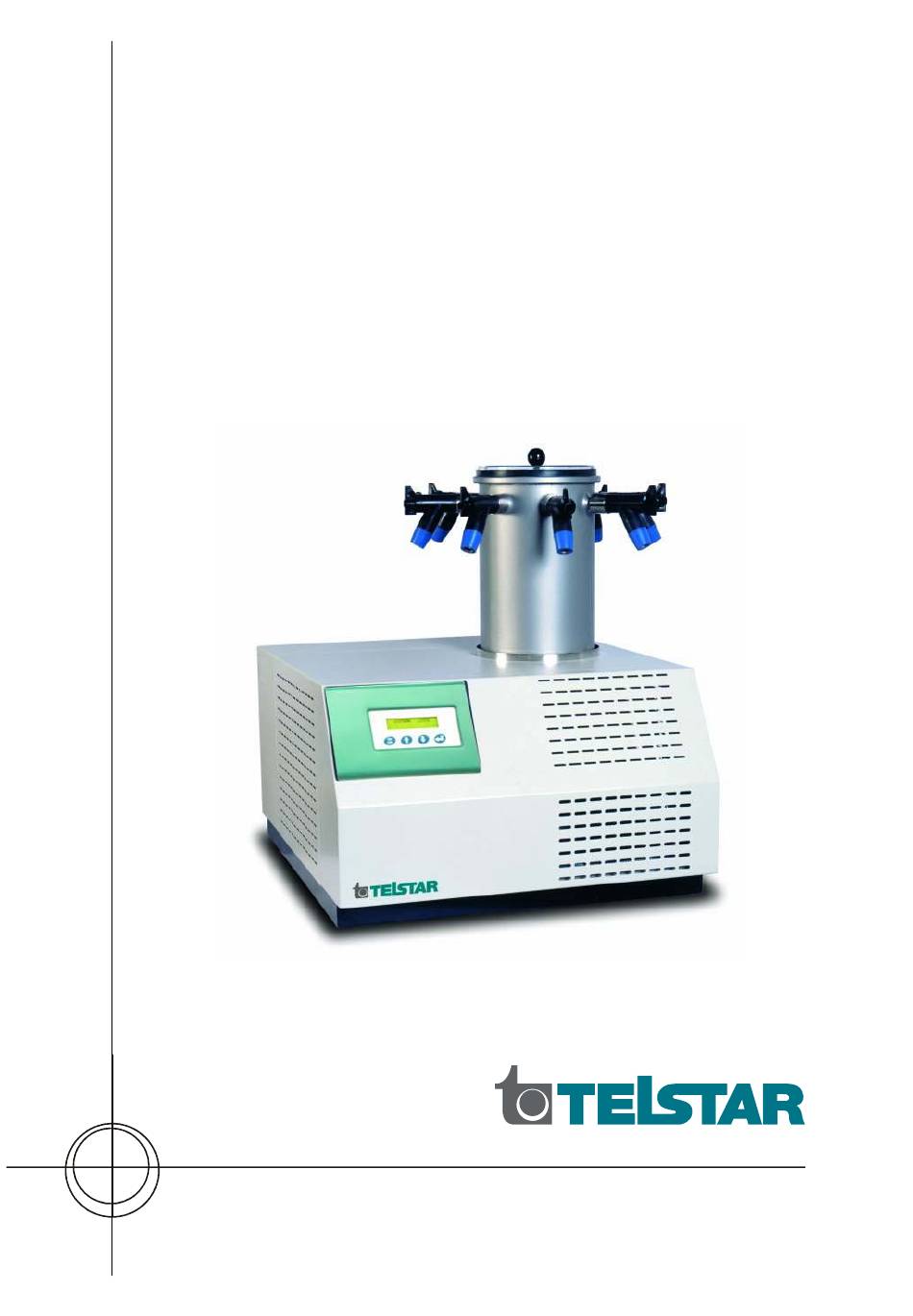

MAINTENANCE MANUAL
Laboratory Freeze Dryer
CRYODOS
CRYODOS_I_rev0105MA
Telstar Industrial, S.L.
Josep Tapiolas, 120
08226 TERRASSA (Spain)
Tel. +34 937 36 16 00
Fax: +34 937 85 93 42
telstar@etelstar.com
www.etelstar.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRYODOS and is the answer not in the manual?

Questions and answers

Summary of Contents for Telstar CRYODOS

  • Page 1 MAINTENANCE MANUAL Laboratory Freeze Dryer CRYODOS Telstar Industrial, S.L. Josep Tapiolas, 120 08226 TERRASSA (Spain) Tel. +34 937 36 16 00 CRYODOS_I_rev0105MA Fax: +34 937 85 93 42 telstar@etelstar.com www.etelstar.com...
  • Page 2: Table Of Contents

    5.1. Time counters ________________________________________________ 13 5.2. Other operations ______________________________________________ 14 ATTACHED DOCUMENTATION________________________________________ 15 6.1. CRYODOS –50 Refrigerating system P&ID __________________________ 15 6.2. CRYODOS –80 Refrigerating system P&ID __________________________ 16 6.3. Legend of cryodos electric diagrams ______________________________ 18 6.4. Electric diagrams _____________________________________________ 19...
  • Page 3: Introduction

    Page 3 of 20 1. INTRODUCTION The aim of a maintenance plan is to provide a guide for operating on all installed components that require maintenance. The success of a maintenance plan basically depends on how detailed the information is and on the correct analysis of this information.
  • Page 4: Maintenance Instructions

    Page 4 of 20 MAINTENANCE INSTRUCTIONS WARNING • Before beginning any maintenance operation or work on the freeze-dryer, disconnect it from the power supply. • In general, a regular inspection of the correct operation of all the unit components should be performed once a year.
  • Page 5: Control Visual De Pérdidas De Aceite

    As the pump may be damaged by being idle for long periods with dirty oil in it, it is advisable to change the oil before the beginning of the idle period. The recommended TELSTAR Oils are: - AV-30, mineral oil for general industry and laboratory applications.
  • Page 6 Setting to 0 /Resetting the timetable counters. Vacuum Pump Compressor E1 Compressor E2 (only CRYODOS –80) To access the Technical Assistance Program, proceed as follows: Switch on the equipment; the initial screen will appear, then hold the ENTER key during 10 seconds till access to the Technical Assistance Program.
  • Page 7 RESET ? [< - ] ENTER COMP E1 00080 H COMP E1 00080 H Compressor E2 (only for CRYODOS-80) This shows hours running of compressor 2 and provides for resetting them. HOUR COUNTER RESET ? [< - ] ENTER COMP E2...
  • Page 8: Maintenance Chart

    Page 8 of 20 Working diagram CRYODOS V3.1 -50 TELSTAR (c) ON/OFF VAC: 0.010 mBar TECHNICAL ASISTANCE SYSTEM READY ALARMS TEMP: -045.0ºC PROGRAM 3 Seg. ON/OFF COOL + VACUUM HOUR COUNTER ALARM [<-] COOL COOL TIME: 11:23:45 PUMP 00150 H...
  • Page 9 Page 9 of 20 OPERATION PERIODICITY VACUUM UNIT Inspection of oil conditions Before each operation Oil level control Before each operation First oil change After the first 150 hours of service Oil change Minimum every 500 hours of service Check the performance of the vacuum Every 6 months unit, particularly the standard time for reaching vacuum throughout the unit...
  • Page 10: Troubleshooting

    Problem: A vacuum cannot be obtained in the unit CAUSE SOLUTION The motor turns but does not Motor/pump coupling broken. Send the pump to TELSTAR create a vacuum. for inspection Problem: The pump is not creating the maximum vacuum pressure.
  • Page 11: Refrigerating Unit

    Problem: The chamber plates or the condenser are not reaching the minimum temperature. CAUSE SOLUTION Refrigerant leak Notify the TELSTAR Technical Assistance Department in order to locate the leak, repair it and load gas. Lack or insufficient water supply Verify water source and pressure.
  • Page 12: Unit Spare Part Codes

    Page 12 of 20 4. UNIT SPARE PART CODES Only original parts and accessories will guarantee correct operation of the freeze-dryer. 4.1. VACUUM GROUP DESCRIPTION CODE Vacuum Pump VARIAN DS 102 21978 Vacuum transducer 19658 Exhaust filter 91015 Silicone grease 4716 Fluid oil AV-30 for Vacuum Pump (1 litre) 15263...
  • Page 13: Maintenance Records

    Page 13 of 20 5. MAINTENANCE RECORDS 5.1. TIME COUNTERS Note down in the following tables the number of hours operated before resetting the time meters. VACUUM PUMP DATE HOURS OPERATION DONE BY: COOLING COMPRESSOR DATE HOURS OPERATION DONE BY:...
  • Page 14: Other Operations

    Page 14 of 20 5.2. OTHER OPERATIONS DATE OPERATION DONE BY:...
  • Page 15: Attached Documentation

    Page 15 of 20 6. ATTACHED DOCUMENTATION 6.1. CRYODOS –50 REFRIGERATING SYSTEM P&ID 6.2. LEGEND. CRYODOS 50 REFRIGERATING SYSTEM DESCRIPCIÓN CODIGO R-404-A Compressor 3484 Ice condenser 26844 Thermostatic valve R-404a 3485 Drying filter 3252 Refrigerating tank R-404a 7072 Condenser R-404a...
  • Page 16: Cryodos -80 Refrigerating System P&Id

    Page 16 of 20 6.3. CRYODOS –80 REFRIGERATING SYSTEM P&ID...
  • Page 17 Page 17 of 20 6.4. LEGEND CRYODOS –80 REFRIGERATING SYSTEM P&ID DESCRIPTION CODE Hermetic compressor R-404-a 3484 Loading valve 3023 Condenser R-404-a 3428 Refrigerating tank R-404-a 7072 Drying filter 19813 Thermostatic valve R-404-a 3485 Exchanger heat 19534 Liquid tank R-23...
  • Page 18: Legend Of Cryodos Electric Diagrams

    Page 18 of 20 6.5. LEGEND OF CRYODOS ELECTRIC DIAGRAMS DESCRIPTION CODE Filter FTO 6 A 70237 Card E/S 19074 High pressure switch R404 3514 Compressor R-23 (CRYODOS –80) 3522 Electrovalve (CRYODOS –80) 3510 Condenser fan 3428 Plug 1852 Compressor R404...
  • Page 19: Electric Diagrams

    Page 19 of 20 6.6. ELECTRIC DIAGRAMS...
  • Page 20 Page 20 of 20...
