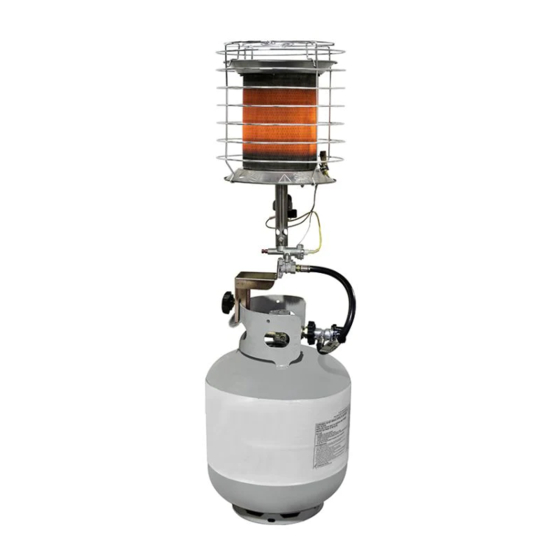

Propane tank top construction heater

Advertisement

Quick Links

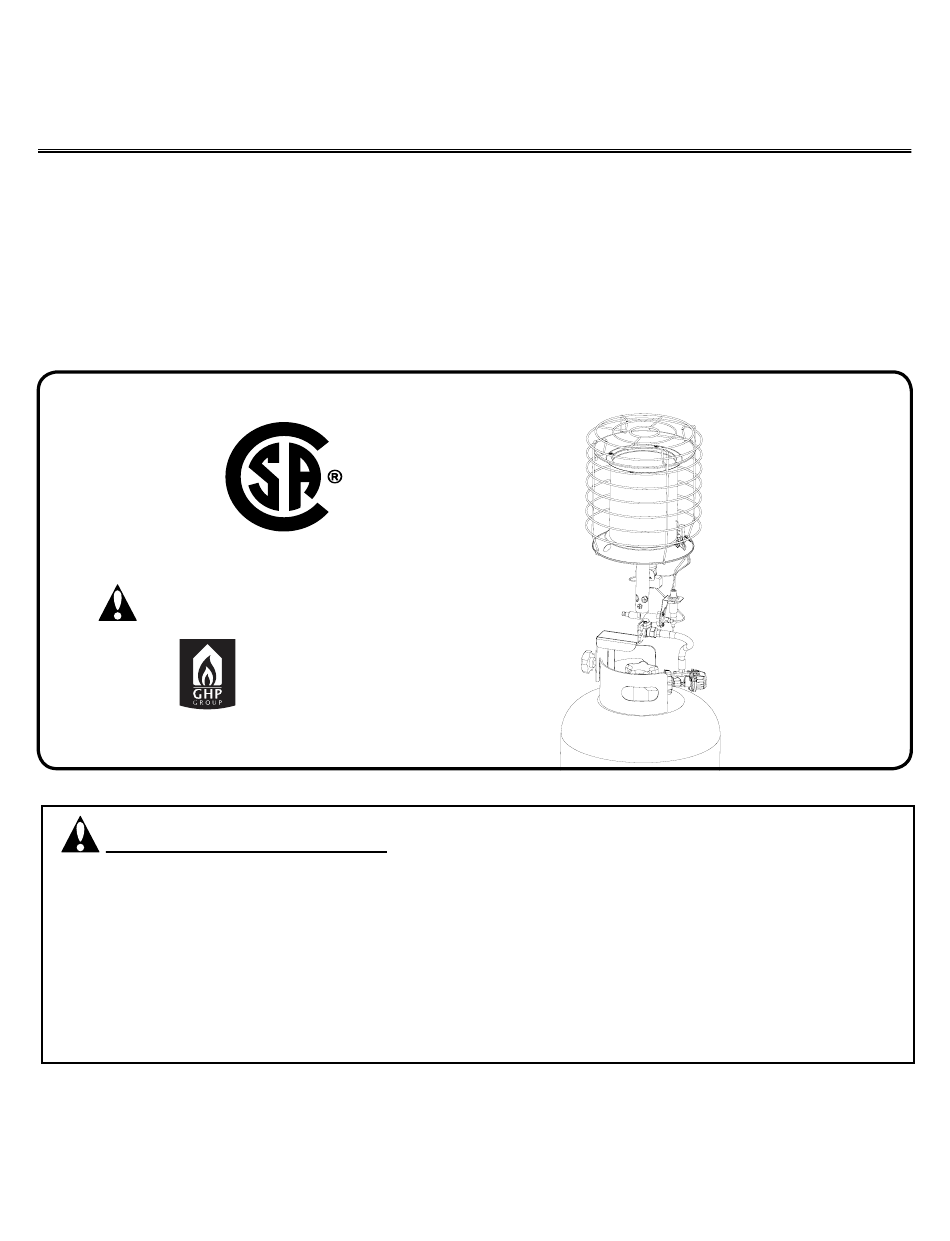

CONSTRUCTION HEATER
USER'S MANUAL AND OPERATING INSTRUCTIONS
MODELS:
C
ANS Z83.7-2017 CSA 2.14-2017
Adequate ventilation must be provided.
GENERAL HAZARD WARNING
FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH
THIS HEATER, CAN RESULT IN DEATH, SERIOUS BODILY INJURY AND PROPERTY LOSS,
OR DAMAGE FROM THE HAZARDS OF FIRE, EXPLOSION, BURN. ASPHYXIATION, CARBON
MONOXIDE POISONING, AND/OR ELECTRICAL SHOCK.
ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS SHOULD
USE OR SERVICE THIS HEATER.
IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS AN INSTRUCTION
MANUAL, LABELS, ETCETERA, CONTACT THE MANUFACTURER.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 877-447-4768 8:30 a.m. – 4:30 pm CST, Monday – Friday
PROPANE TANK TOP
TT360L
TT360PH
TT360DGP
TT360PDGD
US
GHP Group, Inc.
6440 W Howard St
Niles, IL 60714-3302
CONSUMER: Retain this manual for future reference.
or email us at customerservice@ghpgroupinc.com
www.ghpgroupinc.com
Printed in China
TT360PL
TT360DG
TT360PDGP
TT3-40C
1
TT360H
TT360PDG
TT360DGD
TT40000M
IMTT360DG - KHe

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TT3-40C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GHP Group TT3-40C

  • Page 1 TT360PDGD TT3-40C TT40000M ANS Z83.7-2017 CSA 2.14-2017 Adequate ventilation must be provided. GHP Group, Inc. 6440 W Howard St Niles, IL 60714-3302 GENERAL HAZARD WARNING FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH THIS HEATER, CAN RESULT IN DEATH, SERIOUS BODILY INJURY AND PROPERTY LOSS, OR DAMAGE FROM THE HAZARDS OF FIRE, EXPLOSION, BURN.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS General Safety Information ................4 - 5 Specifications ......................Product Features ..................... Heater Assembly ....................... Wiring Diagram ......................Propane Safety ......................Refilling The Propane Gas Tank ................Connecting Heater to Gas Supply ................9 - 10 Checking For Leaks ....................11 Lighting &...
  • Page 3: Specifications

    PROPANE TANK TOP HEATER PROPANE TANK TOP CONSTRUCTION HEATERS The heater is designed and approved for use as a construction heater under ANSI Z83.7, CSA 2.14. CHECK WITH YOUR LOCAL It is hard to anticipate every use which may be made of this heater. FIRE SAFETY AUTHORITY IF YOU HAVE QUESTIONS ABOUT APPLICATIONS.
  • Page 4: General Safety Information

    PROPANE TANK TOP HEATER GENERAL SAFETY INSTRUCTIONS Accidents are always tragic especially because so many of them could have been prevented with a little care and judgment. There are some basic good practices, we hope you will follow for safe use of your heater. IMPORTANT SAFETY INFORMATION •...
  • Page 5 PROPANE TANK TOP HEATER VENTILATION For indoor use only. Adequate ventilation shall be provided in accordance with OSHA 29 CFR 1926.154, Safety Requirements for Temporary and Portable Space Heating Devices and Equipment, ANSI A10.10, National Fuel Gas Code, ANSI Z223.1/ NFPA 54, Liquefied Petroleum Gas Code, NFPA 58 or the Natural Gas and Propane Installation Code, CAN B149.1, as appropriate.
  • Page 6: Product Features

    PROPANE TANK TOP HEATER PRODUCT FEATURES • Portable & Stable • Adjustable Input Ratings • Match or Piezo Electric Spark Ignition • 360 Degree Heat Radius • 100% Safety Shutoff System TT360 SERIES HEATER ASSEMBLY Tools Required: Estimated Assembly Time: Contents: Phillips head screwdriver 5 minutes...
  • Page 7: Wiring Diagram

    PROPANE TANK TOP HEATER WIRING DIAGRAM ELECTRODE black earth yellow THERMOCOUPLE yellow M,P,U SAFETY VALVE NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING!
  • Page 8: Propane Safety

    PROPANE TANK TOP HEATER PROPANE SUPPLY This heater requires a 20 lb propane cylinder for operation. (Not included). The propane (LP) gas tank must also be equipped with the following: • A collar to protect the propane gas valve. • A shutoff valve terminating a Propane gas cylinder valve outlet as specified in the American National Standard for Compressed Gas Cylinder Valve Outlet and Inlet Connections.
  • Page 9: Connecting Heater To Gas Supply

    PROPANE TANK TOP HEATER CONNECTING HEATER TO PROPANE TANK Read and understand all safety information before connecting heater to propane tank. 1. Place heater onto tank with tank collar bracket over tank collar (Fig. 2). Mounting bolt knob should be positioned to the outside of tank collar and be positioned as closely as possible directly opposite to the cylinder valve outlet.
  • Page 10 PROPANE TANK TOP HEATER CONNECTING HEATER TO PROPANE TANK FIGURE 2 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING!
  • Page 11: Checking For Leaks

    PROPANE TANK TOP HEATER CHECKING FOR LEAKS Check all gas connections with a 50/50 soap and water solution to be sure they are tight and leak proof. The formation of bubbles indicate a gas leak. Correct all leaks before using the heater. •...
  • Page 12 PROPANE TANK TOP HEATER LIGHTING INSTRUCTIONS WHEN USING MATCH (CONTINUED) FIGURE 3 1. STOP! Read all safety information first. 2. Turn heater regulator knob counterclockwise to (OFF) [ ] position. 3. Slowly Open Cylinder valve by turning counterclockwise 4. Wait five(5) minutes to clear out any gas. Then smell for gas, including near the floor.
  • Page 13 PROPANE TANK TOP HEATER TURNING OFF THE HEATER 1. Tightly close propane tank valve by turning fully clockwise 2. Turn the heater regulator knob to the (OFF) [ ] position. Wait at least 30 minutes for the heater to cool before handling heater.
  • Page 14: Storage Of Heater

    PROPANE TANK TOP HEATER LIGHTING INSTRUCTIONS FOR PIEZO IGNITION MODELS (CONTINUED) 1. Stop! Read all safety information first. 2. Turn heater regulator knob counterclockwise to (OFF) [ ] position. WARNING: Stand to the side of unit while lighting. Do not stand or have any part of your body over or near the heater while lighting.
  • Page 15: Maintenance

    PROPANE TANK TOP HEATER LIGHTING IN WINDY AREAS When using this heater indoors where there is wind, it will be necessary to use a match or long stem butane lighter to ignite the burner. It may be difficult to keep the match lit long enough under windy conditions. Follow the “Lighting instructions when Using a Match”...
  • Page 16: Troubleshooting

    PROPANE TANK TOP HEATER TROUBLESHOOTING PROBLEM POSSIBLE
CAUSE CORRECTIVE
ACTION 1. Unit
will
not
light. 1. Valve
on
propane
cylinder
not
open. 1. Open
cylinder
valve
by
turning
counterclockwise. 2. Propane
cylinder
empty 2. Have
cylinder
refilled. 3. Regulator
not
in
"Low"
position 3. Turn
regulator
to
"Low"
position. 4. Excess
flow
device
triggered. 4. Close
cylider
valve,
wait
5
minutes
and
reopen
slowly. 5. Defective
Regulator. 5. Replace
Regulator
assembly. 2. Burner
will
not
stay
lit
when
 1. Tilt
switch
open 1. Correct
alignment
of
unit
to
ensure
it
is
vertical. gas
valve
plunger
released. 2. Wiring
of
thermocouple
 2. Check
wiring
connections
are
properly
engaged. 3.
  • Page 17: Replacements Parts List

    PROPANE TANK TOP HEATER REPLACEMENT PARTS ILLUSTRATION NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING!
  • Page 18: Exploded Parts Drawing

    THIS PAGE INTENTIONALLY LEFT BLANK.
  • Page 19: Warranty

    This limited warranty is extended to the original retail purchaser of this Forced Air/Convection/Radiant Heater and warrants against any defect in materials and workmanship for a period of one (1) year from the date of retail sale. GHP Group, Inc., at it’s option, will either provide replacement parts or replace or repair the unit, when properly returned to the retailer where purchased or one of our service centers as directed by GHP Group, Inc., within one (1) year of retail purchase.
  • Page 20 6 0 0 5 3 - 3 2 0 7 Tel: ( 847 ) 324 - 5900 Fax: ( 847 ) 324 - 5901 SAVE THIS CARD! Toll Free (877) GHP Group ( 8 7 7 ) 4 4 7 - 4 7 6 8 www.ghpgroupinc.com Place...
