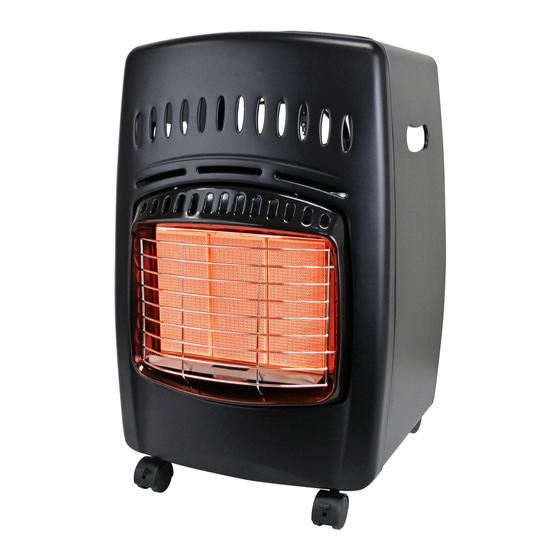

Propane construction heater

Advertisement

Quick Links

PROPANE CONSTRUCTION HEATER
USER'S MANUAL AND OPERATING INSTRUCTIONS
RA18LPDGP, RA18LPA, RA18LPB, and RA18LPC
ANS Z83.7-2011 CSA 2.14-2011
Adequate ventilation must be provided.
IMPORTANT: READ AND UNDERSTAND
THIS MANUAL BEFORE ASSEMBLING,
STARTING OR SERVICING HEATER.
IMPROPER USE OF HEATER CAN
CAUSE SERIOUS INJURY. KEEP THIS
MANUAL FOR FUTURE REFERENCE.
CALIFORNIA PROPOSITION 65: Fuels
used in gas or oil fired appliances and
the products of combustion of such fuels,
contain chemicals known to the State of
California to cause cancer, birth defects
or other reproductive harm. This product
contains chemicals, including lead and
lead compounds, known to the State of
California to cause cancer, birth defects or
other reproductive harm. Wash hands after
handling.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 877-447-4768 8:30 a.m. – 4:30 pm CST, Monday – Friday
MODEL # RA18LPDG, RA18LPDGD, RA18LPL
C
US
GHP Group, Inc.
6440 W Howard St
Niles, IL 60714-3302
CONSUMER: Retain this manual for future reference.
or email us at customerservice@ghpgroupinc.com
GENERAL HAZARD WARNING:
FAILURE TO COMPLY WITH THE
PRECAUTIONS AND INSTRUCTIONS PROVIDED
WITH THIS HEATER, CAN RESULT IN DEATH,
SERIOUS BODILY INJURY AND PROPERTY
LOSS, OR DAMAGE FROM THE HAZARDS OF
FIRE, EXPLOSION, BURN. ASPHYXIATION,
CARBON MONOXIDE POISONING, AND/OR
ELECTRICAL SHOCK.
ONLY PERSONS WHO CAN UNDERSTAND AND
FOLLOW THE INSTRUCTIONS SHOULD USE OR
SERVICE THIS HEATER.
IF YOU NEED ASSISTANCE OR HEATER
INFORMATION SUCH AS AN INSTRUCTION
MANUAL, LABELS, ETCETERA, CONTACT THE
MANUFACTURER.
Printed in China
IMC18DG - GAX
