TM
power
Model UPS9AC-1000
Uninterruptible Power Supply
User & Installation Manual
©2021 Lowell Manufacturing Co. UPS9AC-1000 (X-Rev 5/6/21)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UPS9AC-1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Lowell power UPS9AC-1000

Summary of Contents for Lowell power UPS9AC-1000

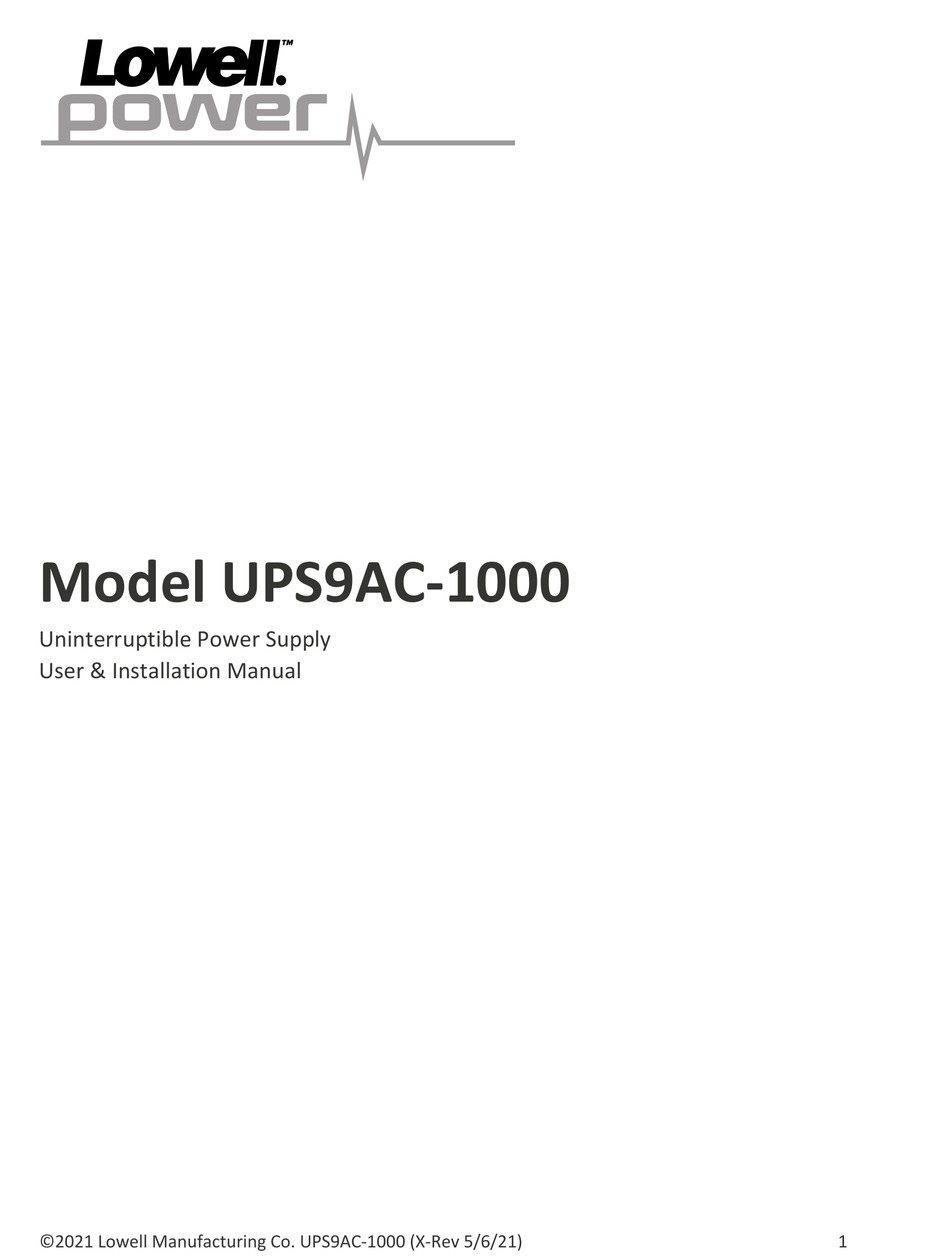

  • Page 1 Model UPS9AC-1000 Uninterruptible Power Supply User & Installation Manual ©2021 Lowell Manufacturing Co. UPS9AC-1000 (X-Rev 5/6/21)

  • Page 2: Table Of Contents

    Setup the UPS ............................6 Operations ……… ............................8 Button operation ............................. 8 LED panel ..............................9 Troubleshooting ............................11 Storage and Maintenance ..........................12 Specifications ............................... 13 Obtaining Service ............................14 Limited Warranty ............................15 ©2021 Lowell Manufacturing Co. UPS9AC-1000 (X-Rev 5/6/21)

  • Page 3: Important Safety Warning

    The UPS system features its own internal current source (batteries). The UPS output receptacles or output may be electrically live even if the UPS system is not connected to the building wiring outlet. • Prevent fluids or other foreign objects from getting inside the UPS system. ©2021 Lowell Manufacturing Co. UPS9AC-1000 (X-Rev 5/6/21)

  • Page 4: Maintenance, Service And Fault

    • WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. ©2021 Lowell Manufacturing Co. UPS9AC-1000 (X-Rev 5/6/21)

  • Page 5: Installation And Setup

    Rear panel view AC input power cord Output receptacle: connect to mission-critical loads. Programmable outlets: connect to non-critical loads USB serial communication port ROO/RPO function connector Intelligent slot ©2021 Lowell Manufacturing Co. UPS9AC-1000 (X-Rev 5/6/21)

  • Page 6: Setup The Ups

    ------------------------------------------------------------ Contact open: UPS shuts down and Fault LED (3) will be ON. To return to normal operation, de-activate external remote contact (Fault LED (3) will be OFF) and restart. ©2021 Lowell Manufacturing Co. UPS9AC-1000 (X-Rev 5/6/21)
  • Page 7 Click ViewPower software icon and then choose your required OS to download the software. Follow the on-screen instructions to install the software. When your computer restarts, the monitoring software will appear as an orange plug icon located in the system tray, near the clock. ©2021 Lowell Manufacturing Co. UPS9AC-1000 (X-Rev 5/6/21)

  • Page 8: Operations

    Turn off the UPS: Press and hold this button at least 2 seconds to turn off the UPS in battery mode. UPS will be in standby mode under power normal or transfer to Bypass mode if the Bypass enable setting by pressing this button. ©2021 Lowell Manufacturing Co. UPS9AC-1000 (X-Rev 5/6/21)

  • Page 9: Led Panel

    Green LED3 Battery replacement LED3 Flashing Fault LED3 On/off status of LED 8: indicating on/off status of Green general output receptacles (2) output receptacles LED 9: indicating on/off status of programmable outlet (3) ©2021 Lowell Manufacturing Co. UPS9AC-1000 (X-Rev 5/6/21)
  • Page 10 Red LED lighting. Off-mode charging. Green LED flashing. Audible Alarm: Battery Mode Sounding every 4 seconds Low Battery Sounding every second Overload Sounding twice every second Fault Continuously sounding Bypass Mode Sounding every 10 seconds ©2021 Lowell Manufacturing Co. UPS9AC-1000 (X-Rev 5/6/21)

  • Page 11: Troubleshooting

    Battery defect. Replace the battery with the same type of battery. Red LED is on and alarm is sounding UPS fault. Please contact local dealer continuously. directly. ©2021 Lowell Manufacturing Co. UPS9AC-1000 (X-Rev 5/6/21)

  • Page 12: Storage And Maintenance

    Before storing, charge the UPS 5 hours. Store the UPS covered and upright in a cool, dry location. During storage, recharge the battery in accordance with the following table: Model Storage Temperature Recharge Frequency Charging Duration UPS9AC-1000 -25°C -50°C Every 3 months 1-2 hours 50°C -55°C Every 2 months 1-2 hours ©2021 Lowell Manufacturing Co. UPS9AC-1000 (X-Rev 5/6/21)

  • Page 13: Specifications

    3 years electronics, 3 years battery warranty (USA and Canada) COMMUNICATIONS INTERFACE USB, EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact) INCLUDED IN BOX ViewPower software CD, horizontal brackets, tower pedestals, 4-pt. rail kit ©2021 Lowell Manufacturing Co. UPS9AC-1000 (X-Rev 5/6/21)

  • Page 14: Obtaining Service

    RMA number marked on the outside of the boxes. 4. Return the UPS by insured, prepaid carrier to the address provided by the Lowell representative. 5. Refer to the Warranty statements in this manual for additional details on what is covered. ©2021 Lowell Manufacturing Co. UPS9AC-1000 (X-Rev 5/6/21)

  • Page 15: Limited Warranty

    Lowell Manufacturing Company warrants Lowell UPS equipment, when properly applied and operated within specified conditions, against faulty materials or workmanship for a period of three years for model UPS9AC-1000 from the date of purchase. Lowell Manufacturing Company warrants internal batteries for a period of three years from the date of purchase.
