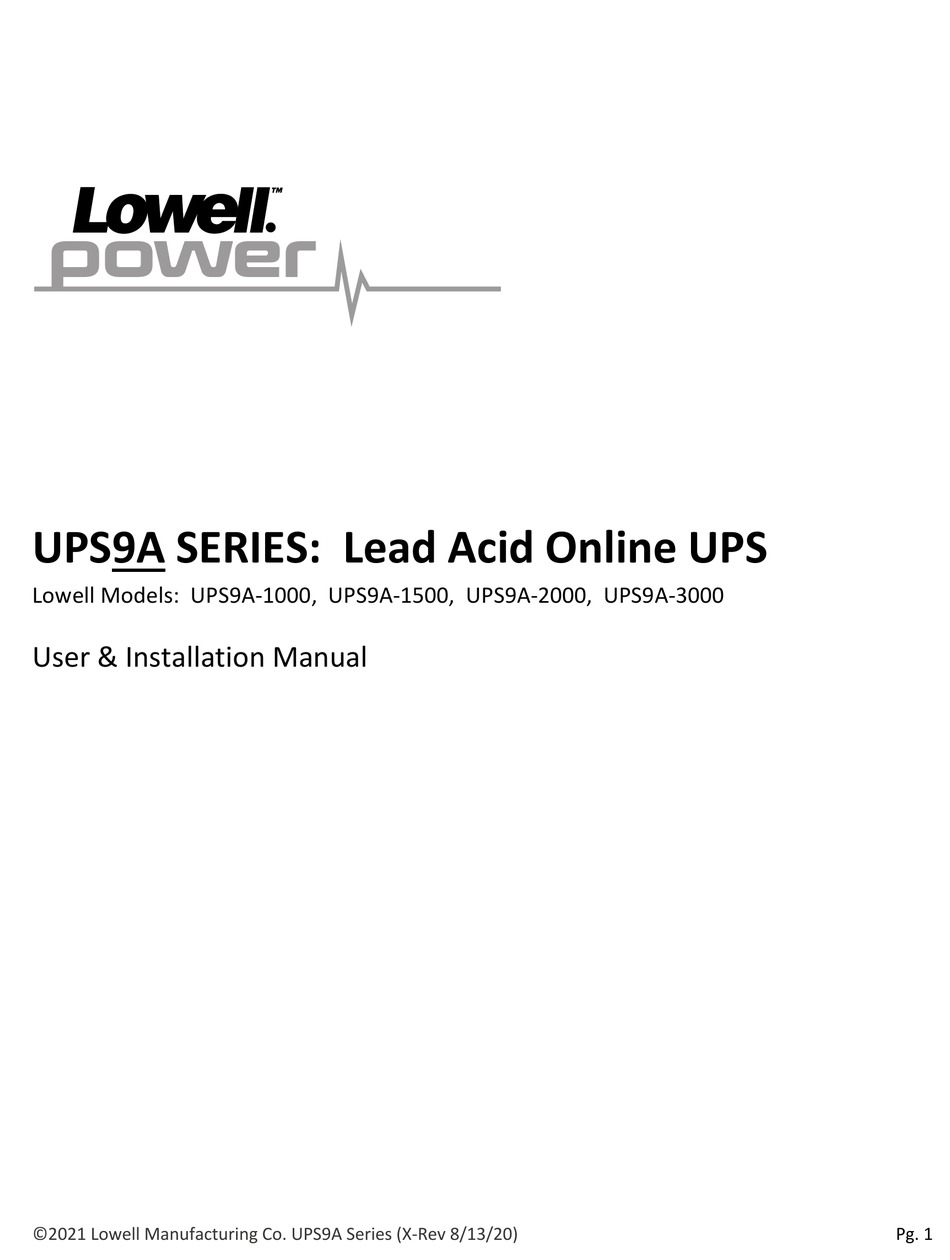

UPS9A SERIES: Lead Acid Online UPS
Lowell Models: UPS9A-1000, UPS9A-1500, UPS9A-2000, UPS9A-3000
User & Installation Manual
©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20)
Pg. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UPS9A Series and is the answer not in the manual?

Questions and answers

Related Manuals for Lowell power UPS9A Series

Summary of Contents for Lowell power UPS9A Series

  • Page 1 UPS9A SERIES: Lead Acid Online UPS Lowell Models: UPS9A-1000, UPS9A-1500, UPS9A-2000, UPS9A-3000 User & Installation Manual ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 1...

  • Page 2: Table Of Contents

    3-7. Faults reference code ......................27 3-8. Warning indicator ........................27 4. Troubleshooting ..........................28 5. Storage and Maintenance ........................30 6. Specifications ............................31 7. Obtaining Service ..........................34 8. Limited Warranty ..........................35 ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 2...

  • Page 3: Important Safety Warning

    Batteries with minimum case flame rating V-2 are intended for use in a computer room as defined in the Standard for the Protection of Information Technology Equipment, ANSI/NFAP 75. Batteries with case flame rating HB are not intended for use in a computer room. (US installations only.) ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 3...

  • Page 4: Operation

    Contact with any part of a grounded battery can result in electrical shock. The likelihood of such shock can be reduced if such grounds are removed during installation and maintenance. ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 4...
  • Page 5 WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 5...

  • Page 6: Installation And Setup

    Output receptacles: connect to mission-critical loads. AC input Network/Fax/Modem surge protection USB communication port RS-232 communication port SNMP intelligent slot Emergency power off function connector (EPO) External battery connection Output circuit breaker ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 6...

  • Page 7: Operating Principle

    Rectifier Inverter Filters /PFC DC-to-DC Converter Battery Battery Charger The UPS is composed of mains input, EMI/RFI filters, rectifier/PFC, inverter, battery charger, DC-to-DC converter, battery, dynamic bypass and UPS output. ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 7...

  • Page 8: Install The Ups

    Step 3: Place UPS on the support rails and secure in place with front screws, allowing the horizontal rails to support the weight of the UPS. ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 8...
  • Page 9 UPS Tower Installation Step 1 Step 2 Step 3 Tower Installation with battery pack Step 1 Step 2 ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 9...

  • Page 10: Setup The Ups

    Note: If you have multiple battery packs available, connect them serially. An example is shown in the diagram below (connecting the second battery connector of the first battery pack to the first battery connector of the second battery pack). ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 10...
  • Page 11 (@) a maximum branch circuit overcurrent protection in accordance with the National Electrical Code, ANSI/NFPA 70 and the Canadian Electrical Code, Part I, C22.1. Model UPS9A-1000 UPS9A-1500 UPS9A-2000 UPS9A-3000 ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 11...
  • Page 12 Note: The EPO function logic can be set up via LCD setting. Please refer to program 16 in UPS setting for the details. It’s in closed status for UPS To activate EPO normal opera tion as default . function, remove these two screws. ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 12...
  • Page 13 Follow the on-screen instructions to install the software. When your computer restarts, the monitoring software will appear as an orange plug icon located in the system tray, near the clock. ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 13...

  • Page 14: Battery Replacement

    Re-connect the battery wires. the battery box back to original box and replace the inside location and screw it tightly. batteries. Step 7 Put the front panel back to the unit. ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 14...

  • Page 15: Battery Kit Assembly

    Step 1: Remove adhesive tapes. Step 2: Connect all battery terminals by following below chart. Tapes Tapes Step 3: Put assembled battery packs on Step 4: Cover the other side of plastic shell as ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 15...
  • Page 16 Then, battery kit is assembled well. 6-battery kit Step 1: Remove adhesive tapes. Step 2: Connect all battery terminals by following below chart. Tapes Tapes ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 16...

  • Page 17: Operations

    ON/Mute and Select buttons simultaneously for 0.2 seconds to return to the upper menu. If it’s already in top menu, press these two buttons at the same time to exit the setting mode. ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 17...

  • Page 18: Lcd Panel

    Mode operation information Indicates the UPS connects to the mains. Indicates the battery is working. Indicates charging status Indicates the bypass circuit is working. Indicates the ECO mode is enabled. ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 18...

  • Page 19: Audible Alarm

    Indicates low battery. 3-3. Audible alarm Battery Mode Sounding every 5 seconds Low Battery Sounding every 2 seconds Overload Sounding every second Fault Continuously sounding Bypass Mode Sounding every 10 seconds ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 19...

  • Page 20: Lcd Display Wordings Index

    Shutdown Battery Low Over Load Over input current Battery No Connect Over Charge Site wiring fault Temperature Charger Battery Fault Bypass Out Range Bypass frequency unstable Battery Replace EEPROM error ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 20...

  • Page 21: Ups Setting

    BAT 60: presents output frequency is 60Hz If converter mode is enabled, you may choose the following output frequency: CF 50: presents output frequency is 50Hz CF 60: presents output frequency is 60Hz ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 21...
  • Page 22 • 06: Bypass enable/disable when UPS is off Interface Setting Parameter 2: Enable or disable Bypass function. You may choose the following two options: ENA: Bypass enable DIS: Bypass disable (Default) ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 22...
  • Page 23 45-49Hz: setting the frequency low loss point from 45Hz to 49HZ. (Default: 47.0Hz) For 60Hz output frequency models: 55-59Hz: setting the frequency low loss point from 55Hz to 59Hz. (Default: 57.0Hz) • 09: Programmable outlets enable/disable Interface Setting ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 23...
  • Page 24 Parameter 2: Enable or disable programmable outlets. ENA: Programmable outlets enable DIS: Programmable outlets disable (Default) ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 24...
  • Page 25 Note: Please set the appropriate charger current based on battery capacity used. The recommended charging current is 0.1C~0.3C of battery capacity as following table for reference. Battery capacity (AH) Total charging current (A) 7~20 20~40 40~60 ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 25...
  • Page 26 Parameter 2: Set up the display setting for autonomy time EAT: If EAT is selected, it will display the remaining autonomy time. (Default) RAT: If RAT is selected, it will show accumulated autonomy time so far. ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 26...

  • Page 27: Operating Mode Description

    UPS is powered off and no output supply power, but still Standby mode can charge batteries. Fault mode When a fault has occurred, the ERROR icon and the fault code will be displayed. ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 27...

  • Page 28: Faults Reference Code

    Sounding every 2 seconds Battery replacement Sounding every 2 seconds EEPROM error Sounding every 2 seconds NOTE: “Site Wiring Fault” function can be enabled/disabled via software. Please check software manual for the details. ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 28...
  • Page 29 ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 29...

  • Page 30: Troubleshooting

    The UPS shut down Remove excess loads from automatically because of UPS output and restart it. is lighting on LCD display. overload at the UPS output. Alarm is continuously sounding. ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 30...
  • Page 31 Fault code is shown as 45 on LCD The charger does not have output Contact your dealer. display. At the same time, alarm is and battery voltage is less than continuously sounding. 10V/PC. ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 31...

  • Page 32: Storage And Maintenance

    During storage, recharge the battery in accordance with the following table: Storage Temperature Recharge Frequency Charging Duration Every 3 months 1-2 hours -25°C - 40°C 40°C - 45°C Every 2 months 1-2 hours ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 32...

  • Page 33: Specifications

    RS-232 (2U), USB, EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact, Modbus) INCLUDED IN BOX ViewPower software, horizontal brackets, tower pedestals, 4-pt. rail kit AVAILABLE OPTIONS Bypass distribution (XBDM Series) ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 33...
  • Page 34 100/110/115/120/125Vac, 50/60Hz, 1Ø 24A, 1Ø 3000VA/2850W,24A (@125Vac input) ; 3000VA/2740W,25A (@120Vac input) ; 3000VA/2650W,26.1A (@115Vac input) ; 3000VA/2500W,27.3A (@110Vac input) ; 2700VA/2300W,27A (@100Vac input) Runtime Chart (internal battery) UPS9A-1000 UPS9A-1500 UPS9A-2000 UPS9A-3000 ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 34...
  • Page 35 17.2 x 18.9 x 3.5 in 17.2 x 23.6 x 3.5 in Net Weight 58.1 lbs 104.4 lbs 74.6 lbs 104.4 lbs NOTE: Battery pack should be used with corresponding UPS. ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 35...

  • Page 36: Obtaining Service

    4. Return the UPS by insured, prepaid carrier to the address provided by the Lowell representative. 5. Refer to the Warranty statements in this manual for additional details on what is covered. ©2021 Lowell Manufacturing Co. UPS9A Series (X-Rev 8/13/20) Pg. 36...

  • Page 37: Limited Warranty

    Lowell Manufacturing Company warrants Lowell UPS equipment, when properly applied and operated within specified conditions, against faulty materials or workmanship for a period of three years for UPS9A Series products from the date of purchase. Lowell Manufacturing Company warrants internal batteries for a period of three years from the date of purchase.
