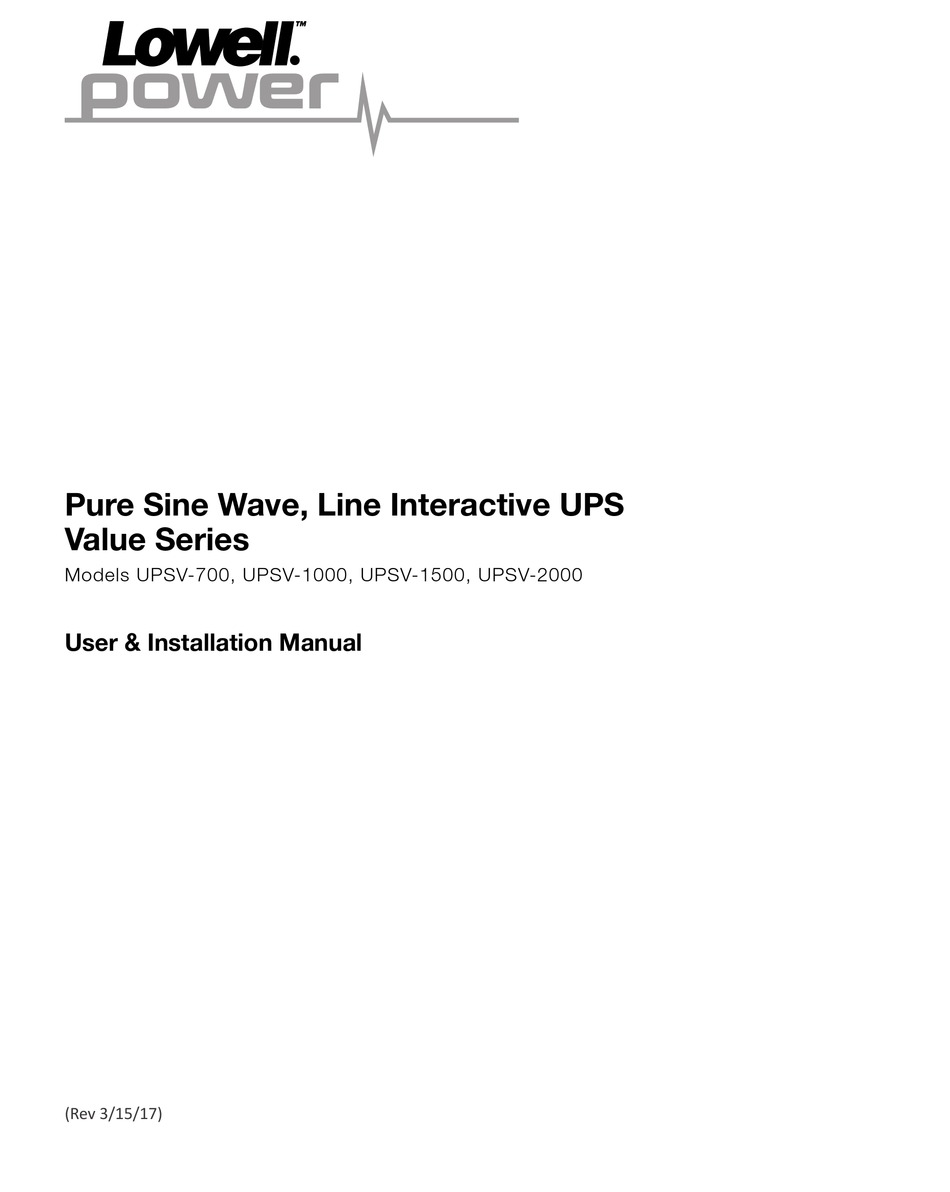

- Page 1 Pure Sine Wave, Line Interactive UPS Value Series Models UPSV-700, UPSV-1000, UPSV-1500, UPSV-2000 User & Installation Manual (Rev 3/15/17)
-
Page 2: Table Of Contents
Lowell UPSV Series Manual Table of Contents Important Safety Warning................3 Transportation..........................3 Preparation............................3 Installation............................3 Hardware Installation........................3 Maintenance, Service, and Faults....................4 Storage......................5 Basic Operation....................5 Front and Top Panel Description......................5 LCD Indicators..........................6 Troubleshooting...................7 Fault Reference Codes........................8 Specifications....................9 Shipping List....................9 Obtaining Service..................10 Limited Warranty..................11 Page 2... -
Page 3: Important Safety Warning
Lowell UPSV Series Manual Important Safety Warning This manual contains important safety instructions. Please read and follow all instructions carefully during installa- tion and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or operate your UPS. -
Page 4: Maintenance, Service, And Faults
Lowell UPSV Series Manual 4. Depress the power switch to turn the unit on. The LCD indicator light will illuminate and the unit will “beep”. 5. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all times. 6. -
Page 5: Storage
Lowell UPSV Series Manual Storage 1. First turn off your UPS and disconnect its power cord from the wall outlet. Disconnect all cables con- nected to the UPS to avoid battery drain. 2. The UPS should be stored in a cool dry location. 3. -
Page 6: Lcd Indicators
Lowell UPSV Series Manual Definitions for Illuminated LCD Indicators LCD Indicators AC INPUT(Voltage) OUTPUT(Voltage) Initial Line mode Bat-mode Battery capacity Load capacity Fault Sound disable (Press the setting key 3s to disable and enable the buzzer sound) Page 6... -
Page 7: Troubleshooting
Lowell UPSV Series Manual Troubleshooting Problem Possible Causes Remedy Abnormal 1. AC Input missing 1. Check AC input connection. Mains normal but not 2. Unplug the power cord of the UPS then works in AC mode 2. Input Breaker is tripped press the circuit breaker knob. -
Page 8: Fault Reference Codes
Lowell UPSV Series Manual Fault Codes Fault 1. Shut down the UPS Output Short : 2. Your attached equipment may have Fault code E09 Output circuit short. problems, please remove them and check again. Overload: Shut off non-essential equipment. If this Your equipment requires more power than Fault code E14 solves the overload problem, the UPS will... -
Page 9: Specifications
Lowell UPSV Series Manual Specifications UPSV-700 UPSV-1000 UPSV-1500 UPSV-2000 MODEL NUMBER CAPACITY Power rating 700VA (420W) 1000VA (600W) 1500VA (900W) 2000VA (1200W) INPUT Voltage nominal 120VAC Voltage range 82-148VAC Frequency 50/60Hz auto sensing OUTPUT Voltage 120VAC Waveform Pure sine wave Transfer time (typical) 2–6ms Efficiency... -
Page 10: Obtaining Service
Lowell UPSV Series Manual OBTAINING SERVICE If the UPS requires service: 1. Use the TROUBLESHOOTING section in this manual to eliminate obvious causes. 2. Verify there are no circuit breakers tripped. 3. Call your dealer for assistance. If you cannot reach the dealer or if they cannot resolve the problem, call Lowell Manufacturing Company at (800) 325-9660. -
Page 11: Limited Warranty
Lowell UPSV Series Manual LIMITED WARRANTY Lowell Manufacturing Company warrants Lowell UPS equipment, when properly applied and operated within specified conditions, against faulty materials or workmanship for a period of three years for UPSV Series products from the date of purchase. Lowell Manufacturing Company warrants internal batteries for a period of three years from the date of purchase.
