Lowell power UPS-XBPA Series User & Installation Manual

Expansion battery pack

Advertisement

Quick Links

TM
power
UPS-XBPA Series: Expansion Battery Pack

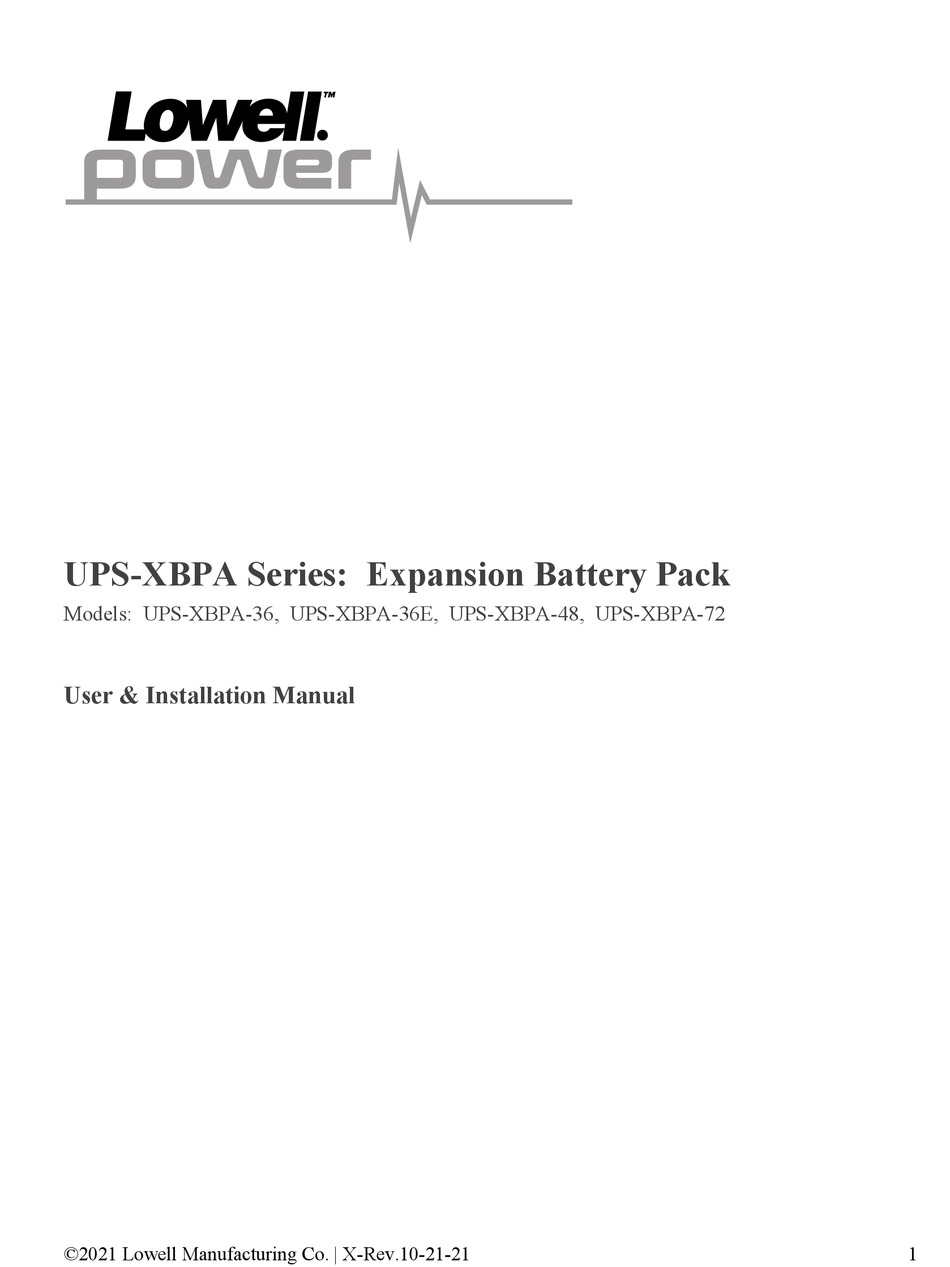

Models: UPS-XBPA-36, UPS-XBPA-36E, UPS-XBPA-48, UPS-XBPA-72
User & Installation Manual
©2021 Lowell Manufacturing Co. | X-Rev.10-21-21
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the UPS-XBPA Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Lowell power UPS-XBPA Series

  • Page 1 UPS-XBPA Series: Expansion Battery Pack Models: UPS-XBPA-36, UPS-XBPA-36E, UPS-XBPA-48, UPS-XBPA-72 User & Installation Manual ©2021 Lowell Manufacturing Co. | X-Rev.10-21-21...
  • Page 2: Table Of Contents

    Table of Contents: 1. Important Safety Warnings ..........................3 2. Product Overview & Setup ..........................4 a. Rack installation ..........................5 b. Tower installation .......................... 6 c. Connecting UPS with another Battery Box ................... 6 3. Type of Battery Required ..........................7 4.
  • Page 3: Important Safety Warnings

    Chapter 1. Important Safety Warnings Please comply with all warnings and operating instructions in this manual strictly. Save this manual properly and carefully read the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully. •...
  • Page 4: Product Overview & Setup

    Chapter 2. Product Overview and Setup NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use. 2-1: Rear panel view 1) DC connector: connects to either UPS or 2nd battery box 2) DC breaker: Battery over-current protection breaker 3) External battery numbers detection port: detects the numbers of connected batteries.
  • Page 5: Rack Installation

    2-3: Selecting installation position It is necessary to select a proper environment to install the unit, to minimize the possibility of damage to the battery box and extend the life of the batteries. Please follow the instructions below: • Keep at least 20cm (8 inches} clearance from the rear panel of the unit from the wall or other obstructions.
  • Page 6: Tower Installation

    Tower installation: Connecting with UPS and another Battery Box: Follow below installation chart to connect with UPS and another battery box with included: ©2021 Lowell Manufacturing Co. | X-Rev.10-21-21...
  • Page 7: Type Of Battery Required

    Chapter 3. Type of Battery Required This battery box has been designed to operate with the following types of batteries: • UPS-XBPA-36: 36V/18Ah Version: 6 pieces of 12V 9Ah (3+3) batteries • UPS-XBPA-36E: 36V/36Ah Version: 12 pieces of 12V 9Ah (3+3+3+3) batteries •...
  • Page 8: Battery Installation

    Chapter 4. Battery Installation If your battery box is not installed with batteries, please follow proper procedure to put batteries inside of unit. NOTE: MAKE SURE THAT THE BATTERY BOX IS DISCONNECTED FROM THE UPS BEFORE PERFORMING THE FOLLOWING SEQUENCE OF OPERATIONS. 4-1.
  • Page 9 Step 6: Now, it is possible to put the batteries inside following the picture below (in the following drawing is indicated the fasten positions for the correct batteries placing). Note: To install the second string of batteries, repeat the same procedure on the right side of battery box. Step 7: Connecting all batteries following the wiring diagram shown in chapter 5.
  • Page 10 4-2. UPS-XBPA-36E Step 1: Open the package and place the battery box on a horizontal plane. Step 2: Remove the removable front panel part by pulling it from the lower extremity. Step 3: Remove the fixed part of the front panel by removing the 2 screws. Step 4: Remove the metal top cover of the battery box by unscrewing 8 screws present on the two sides (4 on the right side and 4 on the left), 3 screws on the top and 4 screws on the back side.
  • Page 11 Step 6: Now, it is possible to put the 1 and 2 strings of batteries inside following the picture below (in the following drawing is indicated the fasten positions for the correct batteries placing). Note: To install the 3 and 4 strings of batteries, repeat the same procedure on the right side of battery box.
  • Page 12 4-3: UPS-XBPA-48 Step 1: Open the package and place the battery box on a horizontal plane. Step 2: Remove the removable front panel part by pulling it from the lower extremity. Step 3: Remove the fixed part of the front panel by removing the 2 screws. Step 4: Remove the metal top cover of the battery box by unscrewing 8 screws present on the two sides (4 on the right side and 4 on the left), 3 screws on the top and 4 screws on the back side.
  • Page 13 Step 6: Now, it is possible to put the batteries inside following the picture below (in the following drawing is indicated the fasten positions for the correct batteries placing). Note: To install the second string of batteries, repeat the same procedure on the right side of battery box. Step 7: Connecting all batteries following the wiring diagram shown in chapter 5.
  • Page 14 4-4: UPS-XBPA-72 Step 1: Open the package and place the battery box on a horizontal plane. Step 2: Remove the removable front panel part by pulling it from the lower extremity. Step 3: Remove the fixed part of the front panel by removing the 2 screws. Step 4: Remove the metal top cover of the battery box by unscrewing 8 screws present on the two sides (4 on the right side and 4 on the left), 3 screws on the top and 4 screws on the back side.
  • Page 15 Step 6: Now, it is possible to put the batteries inside following the picture below (in the following drawing is indicated the fasten positions for the correct batteries placing). Note: To install the second string of batteries, repeat the same procedure on the right side of battery box. Step 7: Connecting all batteries following the wiring diagram shown in chapter 5.
  • Page 16: Wiring Diagrams

    Chapter 5. Wiring Diagrams Note: The cable connection from external battery connector to PCB is already present inside the battery box. All the other cable connection should be followed by wiring diagram. 5-1: UPS-XBPA-36 ©2021 Lowell Manufacturing Co. | X-Rev.10-21-21...
  • Page 17 5-2: UPS-XBPA-36E ©2021 Lowell Manufacturing Co. | X-Rev.10-21-21...
  • Page 18 5-3: UPS-XBPA-48 ©2021 Lowell Manufacturing Co. | X-Rev.10-21-21...
  • Page 19 5-4: UPS-XBPA-72 ©2021 Lowell Manufacturing Co. | X-Rev.10-21-21...
