Cellinx CamPilot MR330 User Manual

Ca mP il ot M R330

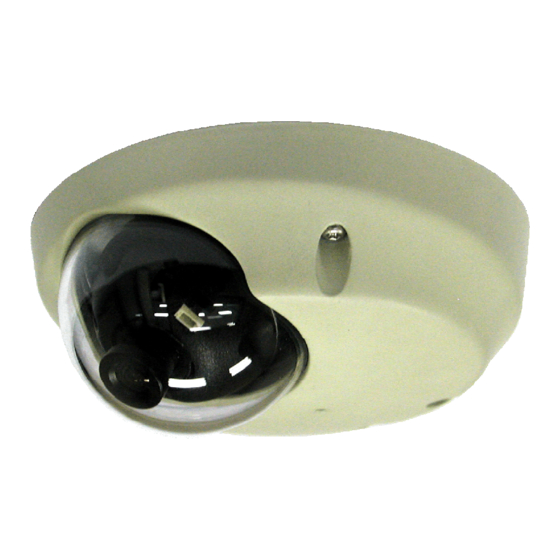

IP Flat Dome Camera
User Manual
Detail Model Name
MR330 - CBR95H
Before installing and using the product, please read
this manual carefully.
Be sure to keep it handy for later reference.
Adapter and LAN cable are not included in the package.
FEATURES
CamPilot MR330 is an IP Camera that transmits real-time high-resolution digital video
and audio data with H.264 high compression rate over Internet or Intranet.
CamPilot MR330 contains digital video/audio compressor, web server and network
interface. Users can simply connect power source and network cable for operation.
Additional operation equipments or programs are not required.

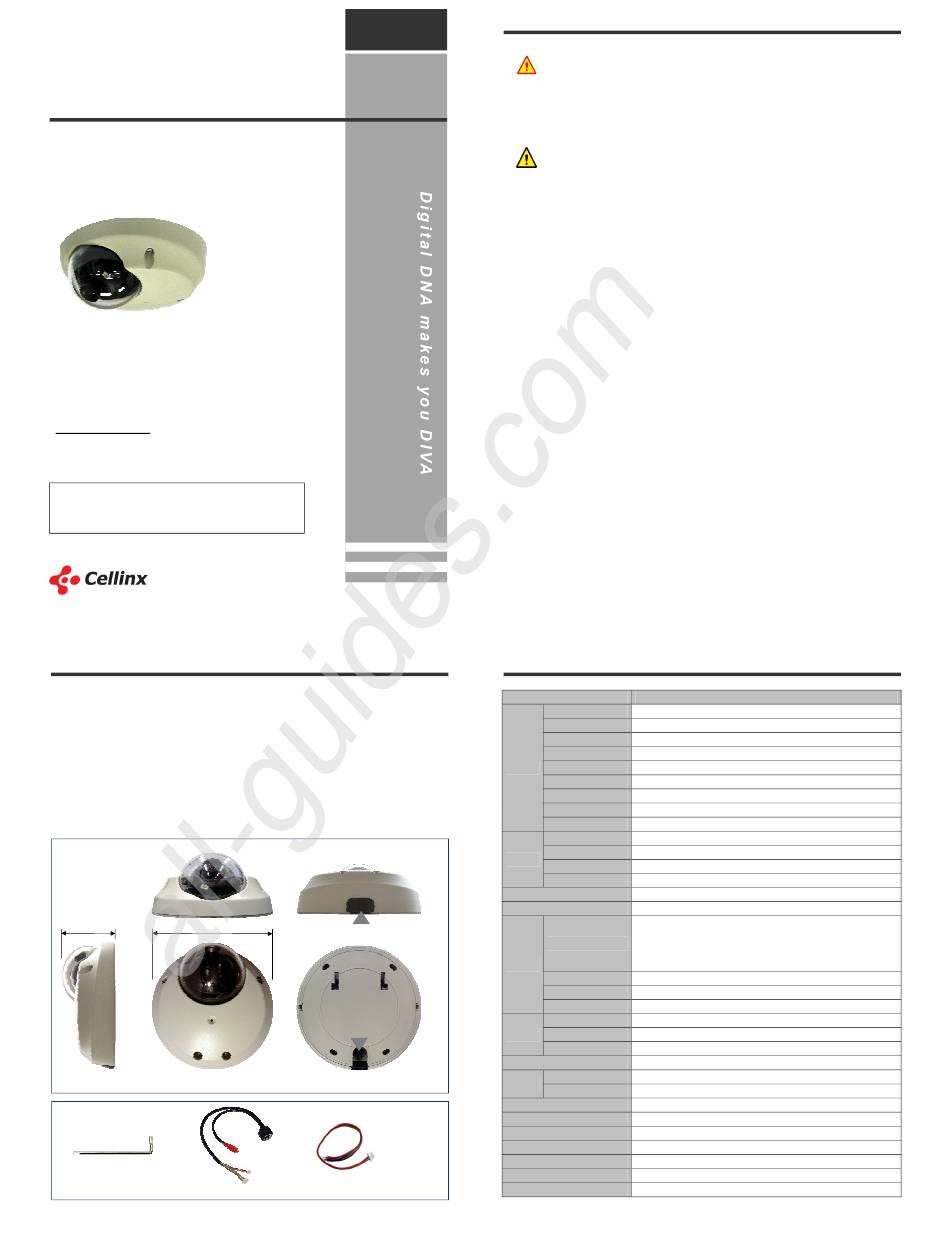

APPEARANCE
58mm 120mm
S i d e
T o p
W r e n c h f o r d o m e c o v e r P o w e r / E t h e r n e t C a b l e
▶ A c c e s s o r i e s
All manuals and user guides at all-guides.com
1
Overview
F r o n t
Cable Hole (Rubber Cover)
C a b l e H o l e
B o t t o m
T h e p i n
c o n n e c t o r s
f o r D I O ,
A u d i o O u t
a r e o p t i o n a l
i t e m o n
o r d e r
P i n c o n n e c t o r ( o p t i o n )
3
Precaution
WARNING
:
TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTIONS
■ Do not open or modify
Do not open the case, as it may be dangerous and cause damages.
■ Do not put objects inside the unit
Make sure that no metal objects or flammable substances get inside the camera. It could cause
fire, short-circuits or damages.
■ Be careful when handling the unit.
To prevent damage, do not drop the camera or subject it to strong shock or vibration.
■ Install away from electric or magnetic fields.
■ Protect from humidity, dust and high temperature.
CamPilot MR330 is for indoor use and vulnerable to water and/or moisture.
An additional case that is temperature-controllable, damp-proof and waterproof is required for
outdoor use.
■ Cleaning
Dirt can be removed from the case only by wiping it with a soft cloth moistened with a soft
detergent solution.
■ Mounting Surface
The mounting surface material must be strong enough to support the camera.
■ CamPilot MR330 can be used for surveillance purpose.
Be thoroughly informed of related regulations prior to installation to ensure compliance with such
regulations.
Specification
Items
Device
Effective Pixels
Min. Illumination
Lens Mount
Camera IR Cut Filter Remove
Electric Shutter
White Balance
BLC
S/N Ratio
CPU
Flash Memory
Encoder
RAM
R e a r
OS
Video Output
Audio Input / Output
Size
Codec
Bandwidth
Transmission
Interface
Network Connection
Protocol
Firmware Update
Password Authentication
Security
User Authentication
DIO (Digital Input / Output)
Pan / Tilt / Zoom
Motion Detection
Dynamic IP support
Recording
FTP, Email Transmission
Power
2
CamPilot MR330-CBR95
SONY 1/3" Interline Transfer CCD
NTSC : 380K Pixels [768(H) x 494(V)] / PAL : 440K Pixels [752(H) x 582(V)]
0.1 Lux (f1.2)
Fixed Lens
TDN5 (Optional)
1/60~1/100,000 (NTSC) / 1/50~1/100,000 (PAL)
Manual / Auto
Low / Middle / High / Off
50 dB
ARM9
8MB
DDR2, 256MB
Embedded Linux
N/A
MIC Input / 1ch Line Level Output (option pin connector)
NTSC : D1(720X480), 4CIF(704X480), VGA(640x480), CIF(352x240),
QVGA (320x240), QCIF(176x112), QQVGA(160x112)
PAL : D1(720X576), 4CIF(704X576), VGA(640x480), CIF(352x288),
QVGA (320x240), QCIF(176x144), QQVGA(160x112)
H.264, MJPEG
32Kb~4Mb
Up to 30fps (at 720X480)
RJ45 (10/100 Base-T)
Up to 10
TCP/IP, ICMP, HTTP, ARP, SMTP, FTP, PPP, PPPoE, DHCP, NTP, SNMP, UPnP
Available on Web browser
O
O
1 in / 1out (option pin connector)
N/A
O
O (DHCP, PPPoE support)
Micro SD/SDHC card support (less than 32GB, SD card is sold separately)
O
PoE support, DC 12V 1A (sold seperately)
4
