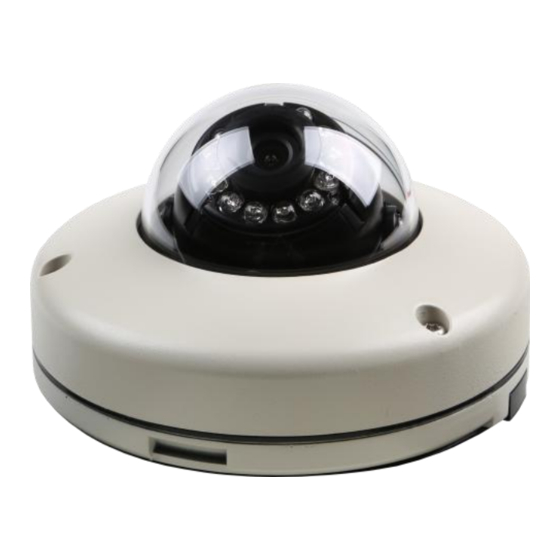

IP 2MP Dome Camera
CamPilot URH350D-2M
User Manual
Overview
CamPilot URH350D
Accessories
Wrench
(Disassembling ans
assembling camera)
Screw, Anchor
- An adaptor and a LAN cable are not included in the product.
1
Before installing and using the product,
please read this manual carefully.
Be sure to keep it handy for later reference.
1/3" Panasonic MN34220
Fixed Lens
Day & Night (ICR) / WDR / DNR
IR LED (12 EA)
2MP resolution at 30 FPS
Multi-codec support : H.265 / H.264 / MJPEG
Multi-stream with variable resolution & frame
1st stream : H.265 or H.264 or MJPEG @ 2M~VGA
2nd stream : H.265 or H.264 or MJPEG @ D1~CIF
Stream based motion detection
Multi-codec audio support : G.711
Two-way audio supported (Full Duplex)
Alarm Input (1ch) / Output (1ch)
micro SD / SDHC card support
Power : DC 12V / PoE (IEEE802.3af)
Mount
Plate
Template
(for plate)
Mount
Bolts and Nuts
Template
(for bolts and nuts)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Cellinx CamPilot URH350D-2M
Summary of Contents for Cellinx CamPilot URH350D-2M
- Page 1 IP 2MP Dome Camera CamPilot URH350D-2M Before installing and using the product, please read this manual carefully. User Manual Be sure to keep it handy for later reference. Overview 1/3" Panasonic MN34220 Fixed Lens Day & Night (ICR) / WDR / DNR...
- Page 2 Precaution WARNING TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTIONS ■ Do not modify Do not modify the case, as it may be dangerous and cause damages. ■ Do not put objects inside the unit Make sure that no metal objects or flammable substances get inside the camera.
- Page 3 Overview Features and Appearances URH350D is an IP camera that transmits real-time high-resolution digital video and audio data with H.265 high compression rate over Internet or Intranet. Top view Side view...
- Page 4 RTP/RTSP, Onvif, Genetec Protocol ▌Softw are Embedded OS (Linux) Web Brow ser IE 8.0 or above Onvif, Genetec Protocol, Cellinx SDK 4.0 Security MD5 Passw ord / iptables (firew all) ▌General Operating Temperature -10°C ~ 55°C / 14°F ~ 131°F Pow er Requirement DC 12V / PoE (IEEE802.3af)
- Page 5 Connection 1. Mounting and Assembling • Mount and assemble in one of three ways below. Fig.1. Mounting directly Fig.2. Using the mount plate Fig.3. Using the mount bolts & nuts on the fixed side Adjusting the direction of camera (Rotating the 3-axis gimbal)
-
Page 6: Ip Address Setup
Connection 2. Connectors • Power: DC12V 1 A (or above) adaptor (Ø 5.5x2.1 jack) - If a PoE network device( by IEE802.3af) is used, it is not necessary to connect the power. • Network: connect to a switching hub (RJ45 connector) Network Power 3. -
Page 7: Setting An Ip Address
Network Setting an IP address Change the network setting value with the program “NVTManagement” 1. NVTManagement execution • Execute the file “NVTManagement.exe” 2. IP address setup • Click the button “NVT Scan”, select the model. • Input the IP address, Subnet Mask, Gateway and DNS Server IP address, click the button “Apply”... - Page 8 Network 3. Accessing to CamPilot URH350D with a web browser Open a web browser on a monitoring PC and enter the IP address assigned to a CamPilot URH350D as following Example> http://192.168.1.2 • The page as below shows up after the connection is completed. ID / Password : root / pass (Initial Value)
