Full HD IP Speed Dome Camera
CamPilot STH780
User Manual
The product shapes are different by
the housing option.

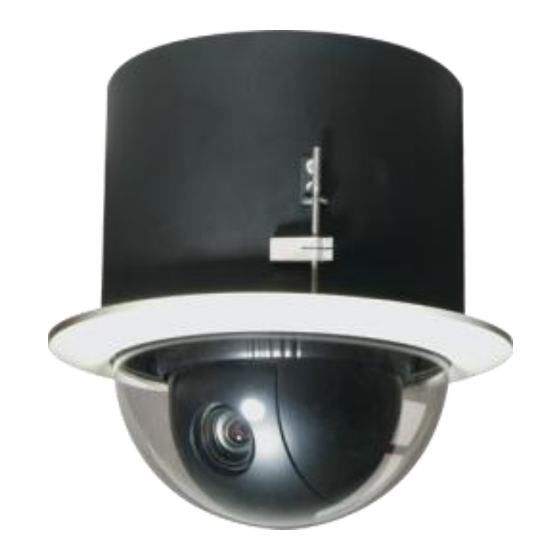

In-Ceiling Type
Accessories
The adaptor and LAN cable are
sold separately.
Before installing and using the product,
please read this manual carefully.
Be sure to keep it handy for later reference.
(+Ceiling Mount Bracket)
Outdoor Housing
(+Wall Mount Bracket)
Quick Manual
1
Outdoor Housing
Advertisement
Table of Contents
Related Manuals for Cellinx CamPilot STH780
Summary of Contents for Cellinx CamPilot STH780
- Page 1 Full HD IP Speed Dome Camera CamPilot STH780 Before installing and using the product, please read this manual carefully. User Manual Be sure to keep it handy for later reference. Overview The product shapes are different by Outdoor Housing the housing option.
- Page 2 ■ Mounting Surface The mounting surface material must be strong enough to support the camera. ■ CamPilot STH780 can be used for surveillance purpose. Be thoroughly informed of related regulations prior to installation to ensure compliance with such regulations.
- Page 3 Overview Features and Appearance is an IP Camera that transmits real-time high-resolution digital video CamPilot STH780 and audio data with H.264 high compression rate over Internet or Intranet. ▶ Outdoor Housing ▶ In-Ceiling Type ▶ Outdoor Housing (w/ Sunshield) ((w/o Sunshield) ▶...
- Page 4 TCP, IP, HTTP, DHCP, FTP, DNS, DDNS, NTP, ICMP, Protocol SNMP, SMTPE, UPnP, RTP, RTSP, Onvif Web Browser IE 8.0 or above Software Cellinx SDK 4.0 Security MD5 Password / iptables (firewall) / SSL Operating Temperature -20°C ~ 60°C / 4°F ~ 140°F...
- Page 5 Connection 1. Mounting the bracket • Mount the bracket on the wall or ceiling 2. Assembly • Hook the safety wire of the housing on the hole of the bracket. • Push the cables to the hole of the housing and extract on the opposite side. (Fig.A) •...
- Page 6 Outdoor Type Item Color Account AC24V AC24V 2.5A AC24V BLACK AC24V 2.5A RJ45 Connecting to the switching HUB of LAN Video Output (CVBS) RCA (MIC_IN) WHITE Audio Input (Line level input. Nominal 0-dB input level is 1.0 VRMS) RCA (SP_OUT) Audio Output (Line level output.
- Page 7 Network Setting an IP address Change the network setting value with the program “NVTManagement” 1. NVTManagement execution • Execute the file “NVTManagement.exe” 2. IP address set-up • Click the button “NVT Scan”, select the model. • Input the IP address, Subnet Mask, Gateway and DNS Server IP address, click the button “Apply”...
- Page 8 Network 3. Accessing to CamPilot STH780 with a web browser Open a web browser on a monitoring PC and enter the IP address assigned to a CamPilot STH780 as following Example> http://192.168.1.2 • The page as below shows up after the connection is completed.
