Full HD IP IR Dome Camera
CamPilot STH320
User Manual
Overview
CamPilot STH320

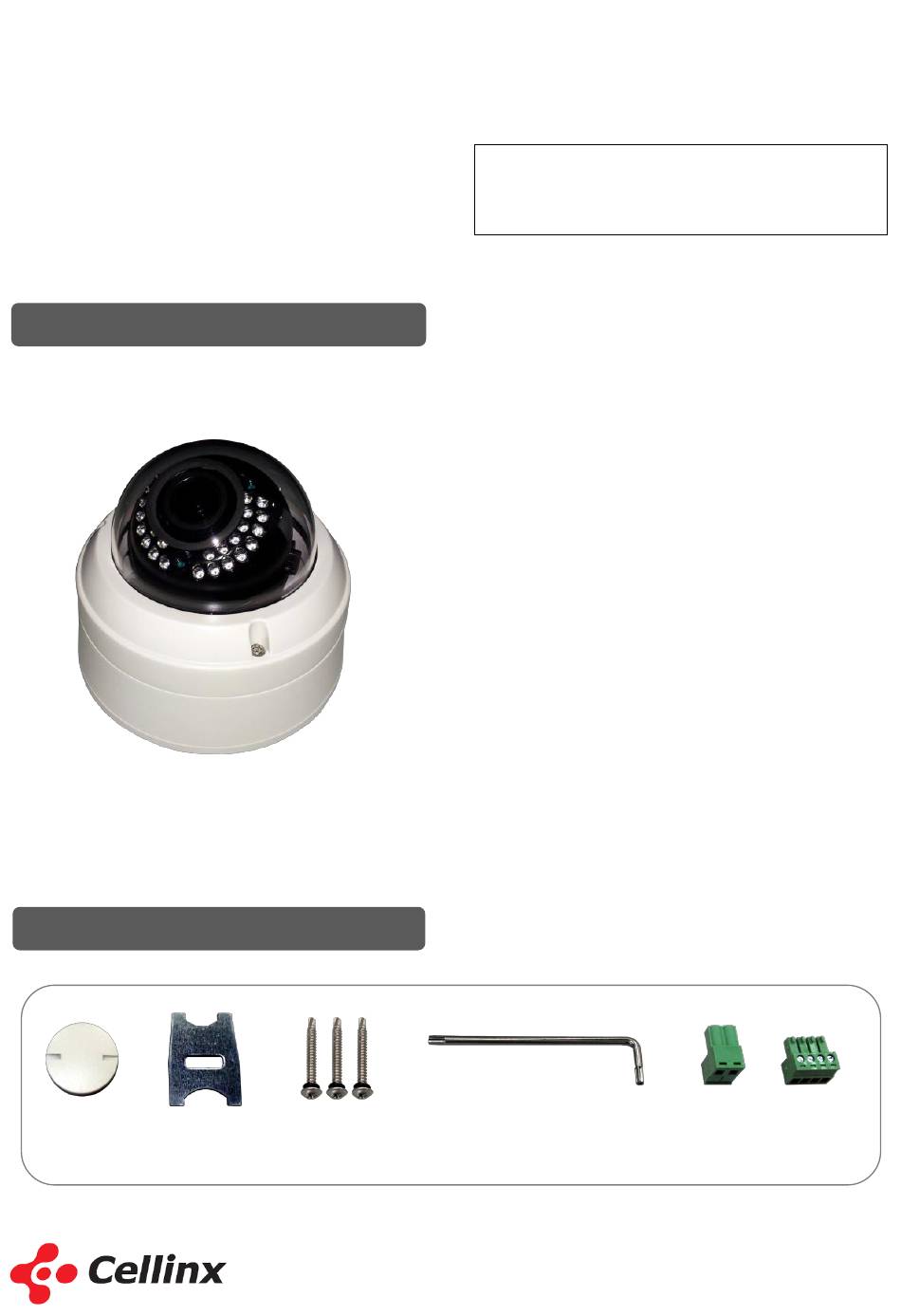

Accessories
Cable hole cover and
assembly hardware
•
•
•
•
•
•
•
•
•
•
•
•
•
3 screws
for mounting
An adaptor and a LAN cable are not included in the product
1
Before installing and using the product,
please read this manual carefully.
Be sure to keep it handy for later reference.
1/3" Sony Exmor CMOS sensor
x3 Optical Zoom Auto Focus(3mm~9mm)
Day & Night (ICR) / WDR / DNR / HLC / De-Fog
IR LED ( 22 EA)
1920x1080 resolution at 30 FPS
Multi-codec support : H.264 / MJPEG / MPEG4
Multi-stream with variable resolution & frame
- 1st stream : H.264 or MJPEG @ 1080p~VGA
- 2nd stream : H.264, MPEG4 or MJPEG @ D1~CIF
- 3rd stream : H.264, MPEG4 or MJPEG @ CIF~QCIF
Stream based motion detection
Multi-codec audio support : G.711 / G.726
Two-way audio supported (Full Duplex)
Alarm Input (1ch) / Output (1ch)
SD / SDHC card support
Power : DC 12V / PoE (IEEE802.3af)
Dome cover
wrench
Pin connector
(2pins-power, 4pins-DIO)
Advertisement
Related Manuals for Cellinx CamPilot STH320
Summary of Contents for Cellinx CamPilot STH320
- Page 1 Full HD IP IR Dome Camera CamPilot STH320 User Manual Before installing and using the product, please read this manual carefully. Be sure to keep it handy for later reference. Overview • 1/3" Sony Exmor CMOS sensor • x3 Optical Zoom Auto Focus(3mm~9mm) •...
- Page 2 ■ Mounting Surface The mounting surface material must be strong enough to support the camera. ■ CamPilot STH320 can be used for surveillance purpose. Be thoroughly informed of related regulations prior to installation to ensure compliance with such regulations...
- Page 3 Overview Features STH320 is an IP camera that transmits real-time high-resolution digital video and audio data with H.264 high compression rate over Internet or Intranet. ▶ Body ▶ Ceiling Mount Bracket In case that the In case that the cables are cables are installed inside installed along...
-
Page 4: Specification
TCP, IP, HTTP, DHCP, FTP, DNS, DDNS, NTP, ICMP, Protocol SNMP, SMTPE, UPnP, RTP, RTSP, Onvif Embedded OS (Linux) Web Brow ser IE 8.0 or above Softw are Cellinx SDK 4.0 Security MD5 Passw ord / iptables (firew all) / SSL Operating Temperature Pow er Pow er Requirement DC 12V / PoE (IEEE802.3af) - Page 5 Connection 1. Mounting and Assembling Wall Mount Bracket 1 (DSB-210) Wall Mount Bracket 2 (DSB-310) Ceiling Mount Bracket (CPA-310) Insert the cable onto the mount and attach it on the wall. Attached the mount on to the wall and insert the cable into Assemble the dome-camera the mount and pipe.
-
Page 6: Ip Address Setup
Connection 2. Connectors ▶ Connectors • DC12V : Power (DC12V 1 A (or above) adaptor) (If a PoE network device( by IEE802.3af) is used, it is not necessary to connect the power.) • ETHERNET : LAN cable (RJ45 jack), The opposite side is connected to the PC or network device like HUB. -
Page 7: Setting An Ip Address
Network Setting an IP address Change the network setting value with the program “NVTManagement” 1. NVTManagement execution • Execute the file “NVTManagement.exe” 2. IP address setup • Click the button “NVT Scan”, select the model. • Input the IP address, Subnet Mask, Gateway and DNS Server IP address, click the button “Apply”... - Page 8 Network 3. Accessing to CamPilot STH320 with a web browser Open a web browser on a monitoring PC and enter the IP address assigned to a CamPilot STH320 as following Example> http://192.168.1.2 • The page as below shows up after the connection is completed.
