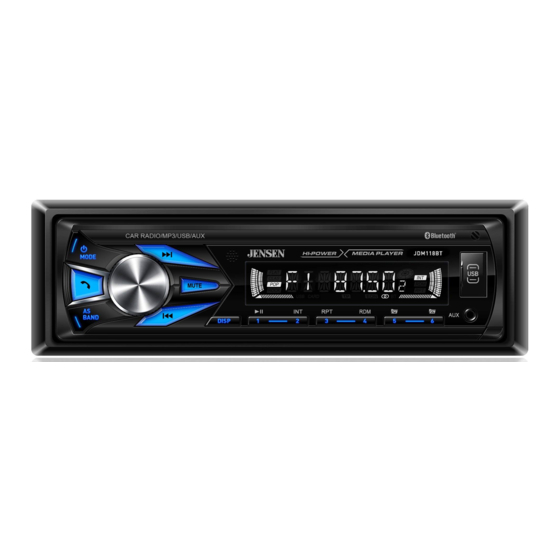

Am/fm receiver with bluetooth and fixed face
Hide thumbs Also See for JDM118BT:
Table of Contents

Advertisement

Quick Links

Download this manual
JDM118BT
INSTALLATION/OWNER'S MANUAL
AM/FM Receiver with Bluetooth and Fixed Face

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JDM118BT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jensen JDM118BT

Summary of Contents for Jensen JDM118BT

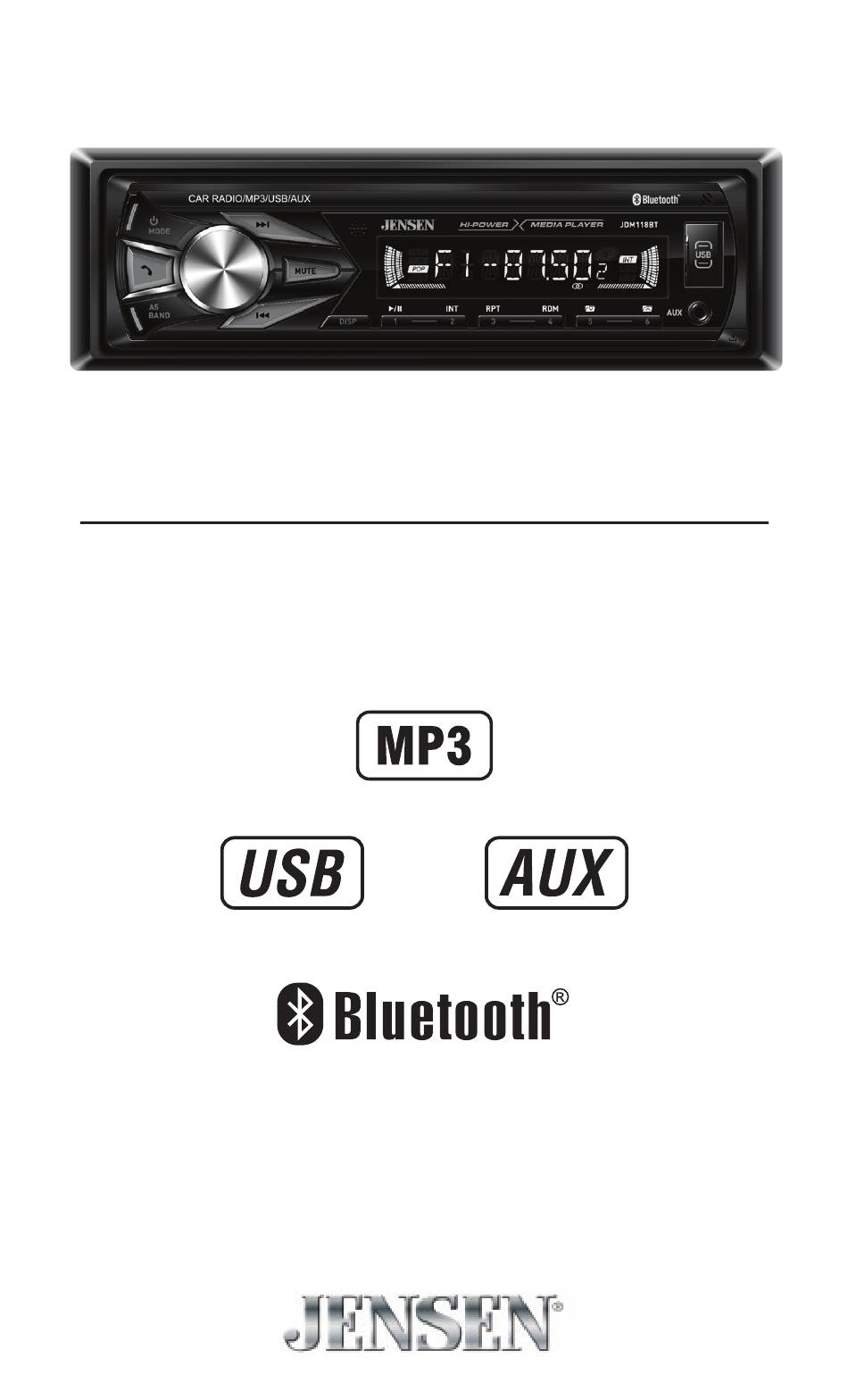

  • Page 1 JDM118BT INSTALLATION/OWNER'S MANUAL AM/FM Receiver with Bluetooth and Fixed Face...

  • Page 2: Installation

    JDM118BT INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

  • Page 3: Wiring Diagram

    JDM118BT INSTALLATION Wiring Diagram FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The unit uses one 10 amp ATM fuse located beside the Heat Sink...

  • Page 4: Operation

    JDM118BT OPERATION Control Locations Power / Mode Preset 6 / Folder Up Display Preset 5 / Folder Down Volume Knob Tune/Track Down Preset 4 / Random Tune/Track Up Automatically Store / Band Mute Preset 3 / Repeat Bluetooth Talk USB Port...

  • Page 5: General Operation

    JDM118BT OPERATION General Operation Press the button to turn the unit on. Press again to Power On/Off turn the unit off. Press MODE to select between Radio, USB, Auxiliary Input Changing Modes and Bluetooth. Modes of operation are shown in the display. Volume Adjust volume using the volume knob (00-43).
  • Page 6 JDM118BT OPERATION AM/FM Tuner Operation Seek Tuning Press TUNE or TUNE  to seek to the previous or next strong station. Manual Tuning Press and hold TUNE or TUNE  to enter manual tuning mode, then press TUNE or TUNE  momentarily to change radio frequency up or down one step at a time.

  • Page 7: Usb Operation

    JDM118BT OPERATION USB Operation Playing MP3 Files To play MP3 files, insert a USB device containing MP3 files. Track Select Press TUNE  to skip to the beginning of the next track. Press TUNE to skip to the beginning of the previous track. Fast Forward Press and hold TUNE ...

  • Page 8: Bluetooth Operation

    JDM118BT OPERATION Bluetooth Operation Preparation Before using a Bluetooth device, it must be paired and connected. Ensure that Bluetooth is activated on your device before beginning the pairing process. Pairing a New The head unit broadcasts the pairing signal constantly when Device no devices are connected. Complete the pairing sequence from your Bluetooth device.

  • Page 9: Troubleshooting

    JDM118BT OPERATION Troubleshooting  Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on  voltage (11~16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground Fuse blown Replace fuse...

  • Page 10: Limited One Year Warranty

    JDM118BT OPERATION Limited One Year Warranty This warranty gives you specific legal What to do? rights. You may also have other rights 1. Before you call for service, check the which vary from state to state. troubleshooting guide in your owner’s manual. A slight adjustment of any Dual Electronics Corp.

  • Page 11: Fcc Compliance

    JDM118BT OPERATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 12: Specifications

    JDM118BT OPERATION Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: >30dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: <42dBu Frequency response: 30Hz-2.2kHz General Speaker output impedance: 4~8 ohms Line output voltage: 2 Volts RMS...
  • Page 13 JDM118BT OPERATION Notes...
  • Page 14 Dual Electronics Corp. Toll Free: 888-921-4088 www.jensenmobile.com ©2017 Dual Electronics Corp. All rights reserved. Other trademarks and trade names are those of their respective owners. NSA0917-V01...
