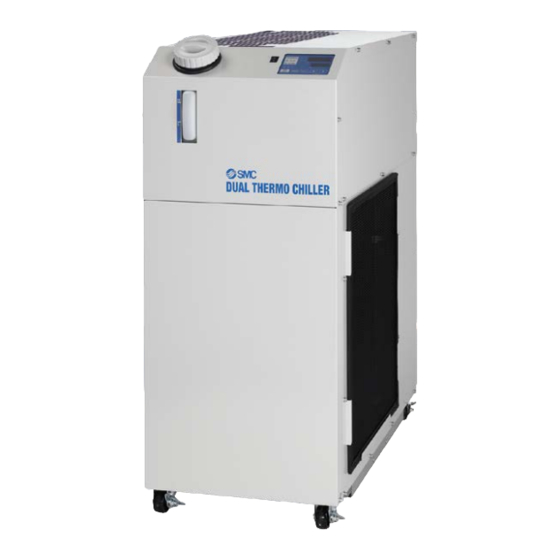

Circulating Fluid Temperature Controller
Thermo-chiller
Air-cooled Refrigeration
With functions narrowed down,
temperature control systems
a single compressor
Optical
system
Oscillator
Space saving
1
Dual thermo-chiller
unit
Optical
Oscillator
system
HRLE090
Energy saving
HRLE
Series
Water-cooled Refrigeration
a single pump
,
CH2
Laser oscillator
CH1
reduced by
Footprint
Reduced by
0.13
0.43
m
2
965
mm
445
mm
Power consumption
reduced by 17%
Compact Dual/Basic Type for Lasers
2 independent
have been achieved with only
a single tank
, and
Laser optical system
Cooling capacity [kW]
Temperature stability [°C]
Set temperature range [°C]
21
%
Oscillator
HRS090
m
2
0.37
m
2
377
mm
Globally compatible power supplies
3-phase 200 VAC
3-phase 200 to 230 VAC
3-phase 380 to 415 VAC
3-phase 460 to 480 VAC
Scheduled to acquire UL
Standards (Only 400 V)
.
Oscillator
Optical system
CH1
CH2
Total 9.5
±0.1
±0.5
15 to 25
CH1+0 to 15
2
Thermo-chiller
units
Optical
system
HRS012
+
+
0.19
m
2
970
mm
377
mm
50 Hz
60 Hz
CAT.ES40-75A
500
mm
50/60 Hz
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SCM HRLE Series
Summary of Contents for SCM HRLE Series
- Page 1 Circulating Fluid Temperature Controller Thermo-chiller Compact Dual/Basic Type for Lasers Air-cooled Refrigeration Water-cooled Refrigeration Scheduled to acquire UL Standards (Only 400 V) 2 independent With functions narrowed down, temperature control systems have been achieved with only a single compressor a single pump a single tank , and Laser optical system...
- Page 2 Circulating Fluid Temperature Controller Thermo-chiller HRLE Compact Dual/Basic Type for Lasers Air-cooled Refrigeration Water-cooled Refrigeration Series Space saving Reduced wiring/labor The temperatures of 2 fluid channel One power supply system for temperature systems can be controlled individually. control of 2 channels Compact Less work-hour for wiring Height...
- Page 3 Circulating Fluid Temperature Controller Thermo-chiller HRLE Compact Dual/Basic Type for Lasers Air-cooled Refrigeration Water-cooled Refrigeration Series One compressor controls 2 channels. Temperature of CH1: Oscillator CH2: Optical system Circulating fluid circuit controlled individually. Refrigeration circuit Facility water circuit Water-cooled refrigeration Air-cooled refrigeration Air release valve Water-...
- Page 4 Circulating Fluid Temperature Controller Thermo-chiller HRLE Compact Dual/Basic Type for Lasers Air-cooled Refrigeration Water-cooled Refrigeration Series Electric conductivity control set Simple operation (With DI filter + Solenoid valve kit for control) CH1 Circulating The electric conductivity of the fluid return port circulating fluid can be set with CH2 Circulating the controller monitor arbitrarily.
- Page 5 Circulating Fluid Temperature Controller Thermo-chiller HRLE Compact Dual/Basic Type for Lasers Air-cooled Refrigeration Water-cooled Refrigeration Series Shaped for easy supply of circulating fluid Globally compatible power supplies (Europe, Asia, Oceania, Central and South America) The angled supply port facilitates the easy supply No transformers required of circulating fluid.
- Page 6 Circulating Fluid Temperature Controller Thermo-chiller HRLE Compact Dual/Basic Type for Lasers Air-cooled Refrigeration Water-cooled Refrigeration Series Convenient functions (Refer to the Operation Manual for details.) Anti-freezing operation function Key-lock function If the circulating fluid approaches its freezing point, for example, on a cold Can be set in advance to protect the set values from being winter night, the pump operates automatically, and the heat generated by changed by pressing keys by mistake...
- Page 7 Circulating Fluid Temperature Controller Thermo-chiller HRLE Compact Dual/Basic Type for Lasers Air-cooled Refrigeration Water-cooled Refrigeration Series Global Supply Network SMC has a comprehensive network in the global market. We now have a presence of more than 560 branch offices and distributors in 83 countries and regions worldwide, such as Asia, Oceania, North/ Central/South America, and Europe.
- Page 8 Circulating Fluid Temperature Controller Thermo-chiller HRLE Compact Dual/Basic Type for Lasers Air-cooled Refrigeration Water-cooled Refrigeration Series Circulating Fluid Line Equipment Flow Switch: Refer to the Web Catalog for details. Monitors the flow rate and temperature of the circulating fluid 3-Color Display 3-Color Display Digital Flow Switch for PF3W...
-
Page 9: Table Of Contents
C O N T E N T S HRLE Series Compact Dual/Basic Type for Lasers Air-cooled refrigeration Water-cooled refrigeration HRLE Thermo-chiller Series How to Order/Specifications ............p. 9 Air-cooled refrigeration ............p. 11 Water-cooled refrigeration Cooling Capacity ................p. 13 Pump Capacity ................ -
Page 10: Thermo-Chiller Hrle
Thermo-chiller Compact Dual/Basic Type for Lasers HRLE Series Power 3-phase 200 VAC (50 Hz) supply 3-phase 200 to 230 VAC (60 Hz) How to Order HRLE A 20 Air-cooled refrigeration Cooling capacity CH1, 2 total 9.5 kW Air-cooled refrigeration Option Cooling method None Air-cooled refrigeration... - Page 11 HRLE Series Thermo-chiller Compact Dual/Basic Type for Lasers Scheduled to acquire UL Standards Power 3-phase 380 to 415 VAC (50/60 Hz) supply 3-phase 460 to 480 VAC (60 Hz) How to Order HRLE A 40 Air-cooled refrigeration Cooling capacity CH1, 2 total 9.5 kW Option Air-cooled refrigeration...
-
Page 12: Water-Cooled Refrigeration
Thermo-chiller Compact Dual/Basic Type for Lasers HRLE Series Power 3-phase 200 VAC (50 Hz) supply 3-phase 200 to 230 VAC (60 Hz) How to Order HRLE W 20 Water-cooled refrigeration Cooling capacity CH1, 2 total 9.5 kW Option Water-cooled refrigeration Cooling method None Water-cooled refrigeration... - Page 13 HRLE Series Thermo-chiller Compact Dual/Basic Type for Lasers Scheduled to acquire UL Standards Power 3-phase 380 to 415 VAC (50/60 Hz) supply 3-phase 460 to 480 VAC (60 Hz) How to Order HRLE W 40 Water-cooled refrigeration Cooling capacity CH1, 2 total 9.5 kW Option Water-cooled refrigeration...
-
Page 14: Cooling Capacity
HRLE Series Compact Dual/Basic Type for Lasers Cooling Capacity HRLE090-A-20/40 HRLE090-A-20/40 [50 Hz] [60 Hz] Ambient temperature 32°C Ambient temperature 32°C Ambient temperature 40°C Ambient temperature 40°C Ambient temperature 45°C Ambient temperature 45°C Circulating fluid temperature [°C] Circulating fluid temperature [°C] * The cooling capacity is the sum of the capacities of CH1 and CH2. -
Page 15: Dimensions
HRLE Series Thermo-chiller Compact Dual/Basic Type for Lasers Dimensions HRLE090-A-20/40 Anchor bolt mounting position Ventilation air outlet Ventilation air inlet Ventilation air outlet Parts Description Circulating fluid fill port lid Power supply switch Circulating fluid return port Operation display panel Dustproof filter Circulating fluid outlet (CH2) (CH1) - Page 16 HRLE Series Compact Dual/Basic Type for Lasers Dimensions HRLE090-W-20/40 Anchor bolt mounting position Parts Description Circulating fluid fill port lid Power supply switch Circulating fluid return Operation display panel port (CH1) Circulating fluid outlet (CH2) Rc1/2 Fluid level indicator Circulating fluid return port (CH2) Rc1/2 Power cable entry...
-
Page 17: Recommended External Piping Flow
HRLE Series Thermo-chiller Compact Dual/Basic Type for Lasers Recommended External Piping Flow External piping circuit is recommended as shown below. Product side Facility water outlet (For water-cooled refrigeration) Facility water equipment Facility water inlet (For water-cooled refrigeration) Customer system side Circulating fluid return port Oscillator Circulating fluid outlet... -
Page 18: Operation Display Panel
HRLE Series Compact Dual/Basic Type for Lasers Operation Display Panel The basic operation of this unit is controlled through the operation panel on the front of the product. w e r t y !6 !8 !7 Item Function PV (Upper line) Displays the circulating fluid current discharge temperature and pressure and alarm codes and other menu items (codes) Digital display (7 segments, 4 digits) -
Page 19: Communication Functions
HRLE Series Thermo-chiller Compact Dual/Basic Type for Lasers Communication Functions Contact Input/Output Item Specifications Connector type M4 terminal block Insulation method Photo coupler Rated input voltage 24 VDC Input signal Operating voltage range 21.6 to 26.4 VDC Rated input current 5 mA TYP Input impedance 4.7 kW... -
Page 20: Options
HRLE Series Options Option symbol With Inverter for Compressor HRLE090 With inverter for compressor The inverter for compressor increases the cooling capacity of the 50 Hz area to that of the 60 Hz area. (Refer to the 60 Hz graph under “Cooling Capacity”... -
Page 21: Optional Accessories
HRLE Series Optional Accessories q Piping Conversion Fitting This is a fitting to change the port from Rc to G or NPT. Circulating fluid inlet/outlet Facility water inlet/outlet Part no. Description Applicable model Drain port ∗ For the water-cooled type HRL-EP003 G thread conversion fitting set G1/2... - Page 22 HRLE Series e Electric Conductivity Control Set This set can be used to display and control the electric conductivity of the circulating fluid. Refer to the Operation Manual for details. Part no. Applicable model HRL-DI001 HRLE090-m-m Measurement range of electric conductivity 2.0 to 48.0 µS/cm Set range of target electric conductivity 0.5 to 45.0 µS/cm Set range of electric 0.1 to 10.0 µS/cm...
- Page 23 HRLE Series Optional Accessories r Particle Filter Set This set can be used to remove foreign matter from the circulating fluid. If foreign matter such as scales in the piping enter the circulating fluid, this may cause the pump to malfunction. Therefore, it is strongly recommended to install the particle filter set. This set cannot be directly connected to the thermo-chiller.
- Page 24 HRLE Series t Filter for Circulating Fluid Fill Port Prevents foreign matter from entering the tank when supplying the circulating fluid. Can be used just by fitting into the circulating fluid fill port. Tank lid M Filter for circulating fluid fill port Filter for circulating fluid fill port HRS-PF007 Circulating fluid fill port...
-
Page 25: Cooling Capacity Calculation
HRLE Series Cooling Capacity Calculation Required Cooling Capacity Calculation Example 1: When the heat generation amount in the customer equipment is known. The heat generation amount can be determined based on the power consumption or output of the heat generating area — i.e. the area requiring cooling — within the customer equipment. * q Derive the heat generation amount from the w Derive the heat generation amount from the power supply output. -
Page 26: Precautions On Cooling Capacity Calculation
HRLE Series Required Cooling Capacity Calculation Example 3: When there is no heat generation, and when cooling the object below a certain temperature and period of time. Heat quantity by cooled substance (per unit time) Q : Unknown [W] ([J/s]) Example of conventional units (Reference) Cooled substance : Water... -
Page 27: Specific Product Precautions 1
HRLE Series Specific Product Precautions 1 Be sure to read this before handling the products. Refer to the back cover for safety instructions. For temperature control equipment precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Design Operating Environment / Storage Environment Warning... - Page 28 HRLE Series Specific Product Precautions 2 Be sure to read this before handling the products. Refer to the back cover for safety instructions. For temperature control equipment precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Transportation / Carriage / Movement Installation Warning...
- Page 29 HRLE Series Specific Product Precautions 3 Be sure to read this before handling the products. Refer to the back cover for safety instructions. For temperature control equipment precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Piping Electrical Wiring Caution...
- Page 30 HRLE Series Specific Product Precautions 4 Be sure to read this before handling the products. Refer to the back cover for safety instructions. For temperature control equipment precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Facility Water Supply Operation Restart Time / Operation and Suspension Frequency Warning...
- Page 31 HRLE Series Specific Product Precautions 5 Be sure to read this before handling the products. Refer to the back cover for safety instructions. For temperature control equipment precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com ...
- Page 32 These safety instructions are intended to prevent hazardous situations and/or Safety Instructions equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC), and other safety regulations.
