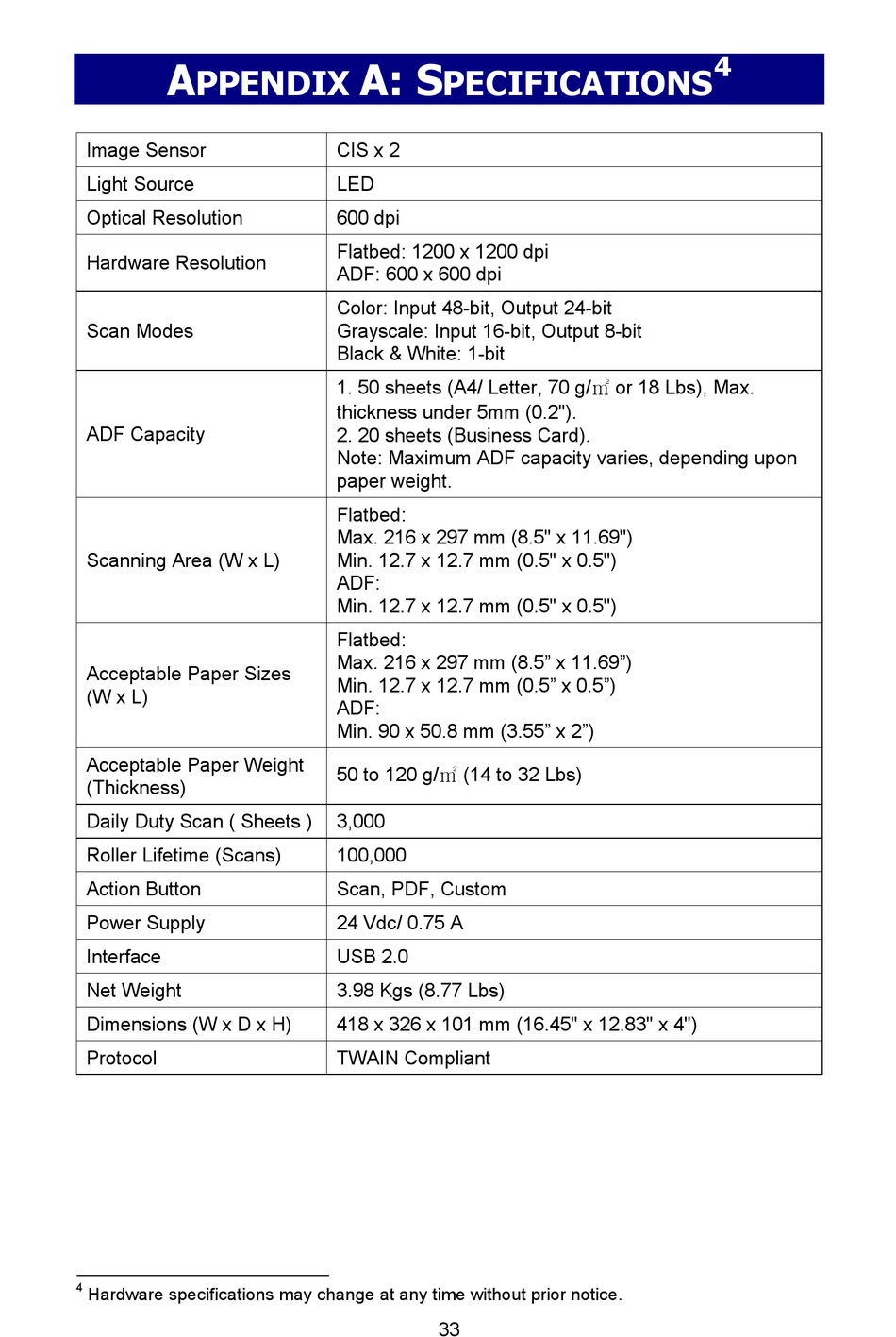

Appendix A: Specifications - Plustek SmartOffice PL4080 User Manual

A
PPENDIX
Image Sensor
Light Source
Optical Resolution
Hardware Resolution
Scan Modes
ADF Capacity
Scanning Area (W x L)
Acceptable Paper Sizes
(W x L)
Acceptable Paper Weight
(Thickness)
Daily Duty Scan ( Sheets )
Roller Lifetime (Scans)
Action Button
Power Supply
Interface
Net Weight
Dimensions (W x D x H)
Protocol
4
Hardware specifications may change at any time without prior notice.
A: S
PECIFICATIONS
CIS x 2
LED
600 dpi
Flatbed: 1200 x 1200 dpi
ADF: 600 x 600 dpi
Color: Input 48-bit, Output 24-bit
Grayscale: Input 16-bit, Output 8-bit
Black & White: 1-bit
1. 50 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs), Max.
thickness under 5mm (0.2").
2. 20 sheets (Business Card).
Note: Maximum ADF capacity varies, depending upon
paper weight.
Flatbed:
Max. 216 x 297 mm (8.5" x 11.69")
Min. 12.7 x 12.7 mm (0.5" x 0.5")
ADF:
Min. 12.7 x 12.7 mm (0.5" x 0.5")
Flatbed:
Max. 216 x 297 mm (8.5" x 11.69")
Min. 12.7 x 12.7 mm (0.5" x 0.5")
ADF:
Min. 90 x 50.8 mm (3.55" x 2")
50 to 120 g/㎡ (14 to 32 Lbs)
3,000
100,000
Scan, PDF, Custom
24 Vdc/ 0.75 A
USB 2.0
3.98 Kgs (8.77 Lbs)
418 x 326 x 101 mm (16.45" x 12.83" x 4")
TWAIN Compliant
33
4
