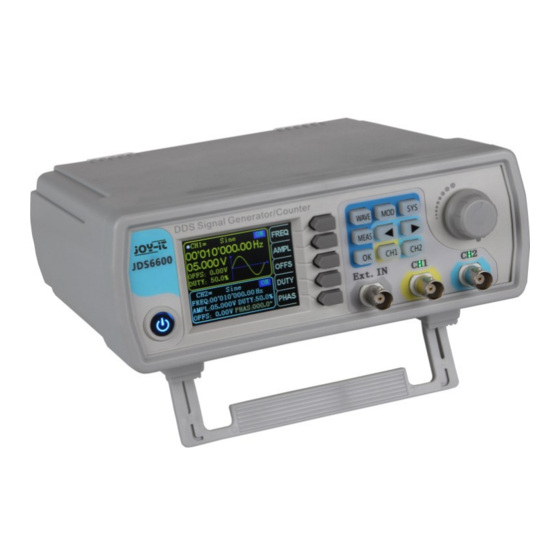

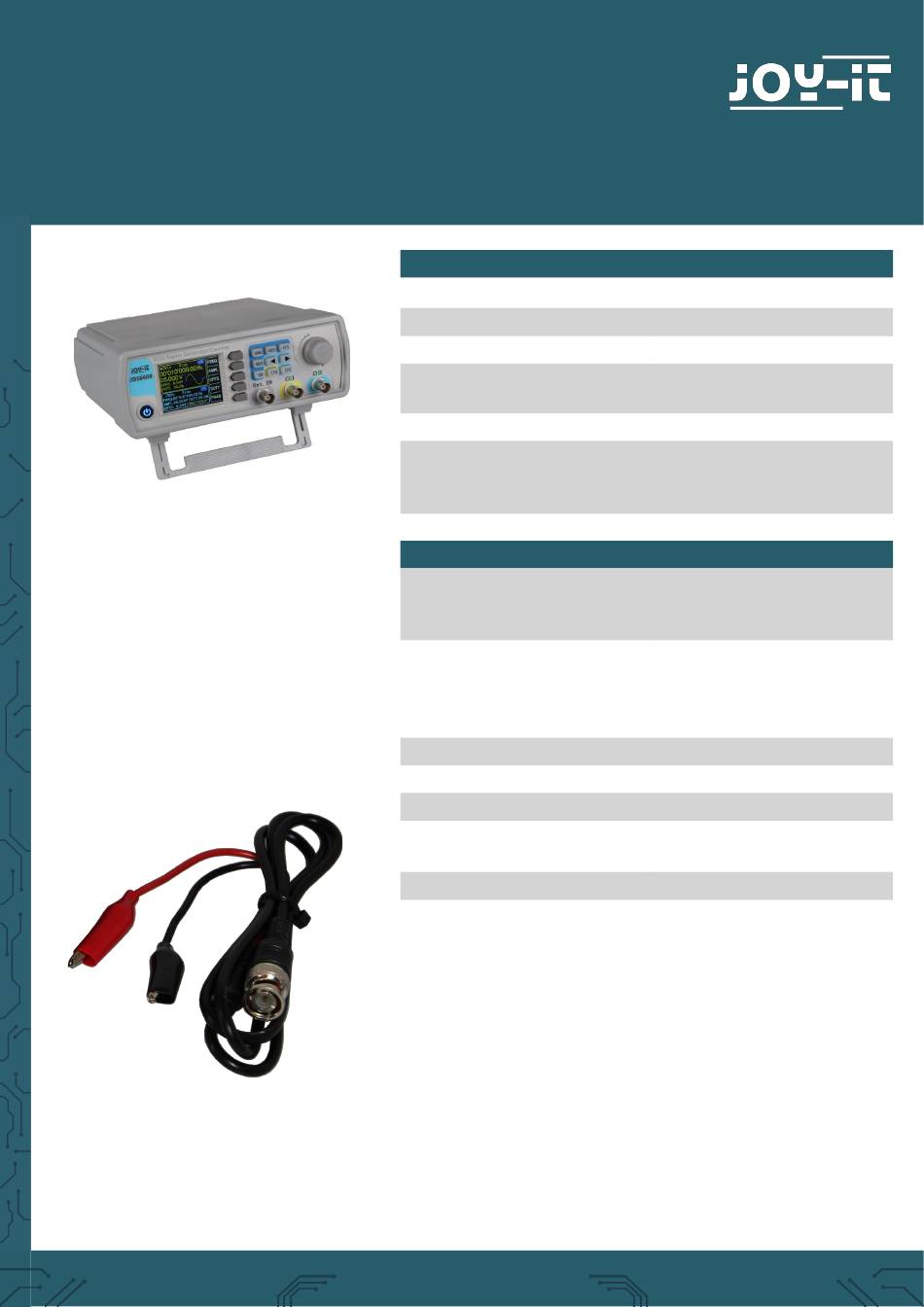

JT-DPS6600
Signal generator and frequency counter
The JT-JDS6600 Signal generator
and frequency meter can generate
signals up to 60 MHz in different
waveforms and offers an outstanding
quality with its frequency counter.
The control panel with its buttons is
very intuitive. Further, the Menu can
be displayed in German, English and
French language.
Published: 10.03.2021
MAIN FEATURES
Display type
Display size
Connection
Features
Size
Items delivered
FURTHER SPECIFICATIONS
Signal waveforms
Frequency range:
sine
square, triangle
PWM, CMOS, TTL, arbitrary
Min. frequency resolution
Frequency accuracy
Frequency stability
Load capability of the
outputs
Operation temperature
Operation humidity
TFT color LCD
2,4 Inch
BCN Signal terminals
2 channel Signal generator
1 channel frequency counter
194 x 178 x 69 mm
signal generator,
2x BNC signal terminals,
power supply
Lorentz pulse, pulse, half-
wave, noise, exponential
rise/ fall, CMOS, a. m. m.
0 - 60 MHz
0 - 15 MHz
0 - 6 MHz
0,01 µHz
± 20 ppm
± 1 ppm/ 3 hours
150 mA max.
0 - 40 °C
< 80 %

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JT-DPS6600 and is the answer not in the manual?

Questions and answers

Related Manuals for Joy-it JT-DPS6600

Summary of Contents for Joy-it JT-DPS6600

  • Page 1 JT-DPS6600 Signal generator and frequency counter MAIN FEATURES Display type TFT color LCD Display size 2,4 Inch Connection BCN Signal terminals Features 2 channel Signal generator 1 channel frequency counter Size 194 x 178 x 69 mm Items delivered signal generator,...

  • Page 2: General Information

    JDS6600 Dual-Channel Signal Generator 1. GENERAL INFORMATION Dear customer, thank you for purchasing our product. In the following, we have listed what you should consider during commissioning. Should you encounter any unexpected problems during use, please do not hesitate to contact us.

  • Page 3: Device Overview

    2. DEVICE OVERVIEW function rotary switch 2,4“ TFT LCD keys short cuts Output on- / off switch Input TTL-interface for DC 5 V PC-connection USB-interface for PC-connection status of output waveform channel display CH1 parameter menu bar CH2 parameter difference of phase between CH1 and CH2...

  • Page 4: Shortcut-Overview

    3. SHORTCUT-OVERVIEW Configuration of wave form WAVE MEAS Configuration of measuring mode Activation of the modulation mode System settings Control of the output from CH1 and CH2 - It is used in other menus as control and confirmation (on / off) Moving the position of the cursor Selection of channel 1 - Hold down to set channel 1 as the main channel...

  • Page 5: Modulation Mode

    5. MEASURING AND COUNTING FUNCTION FUNC MEAS Press the button and after that the multifunctional button in the measuring mode to switch between the measuring function and the counting function. It can be measured the input frequency, period, positive pulse width, duty cycle and other parameters.

  • Page 6: System Configuration

    Pulse function: With this option, it is possible to configure the pulse wave width and the pulse time. Press the multifunctional buttons within the pulse function to select the pulse width, period, offset and amplitude. As soon as a parameter is highlighted, you can adjust it with the arrow keys. The pulse width and time can be set using the rotary button.

  • Page 7: Pc Software Installation

    Language settings: The English, German and French languages are available. Synchronization: The channel CH1 is used as the target during the synchronization. The parameters of the channel CH2 will change according to the parameters of CH1. If the synchronization point is highlighted, presst the buttons to select the point which has to be synchronized.
  • Page 8 Next, enter the installation path and confirm with Next >>. The selection of the modules to be installed must also be confirmed with Next >>.
  • Page 9 If you do not want the automatic search for updates enabled, you can now disable it by unchecking the option. Then continue with Next >> again. The system quick start introduced in Windows 8 occasionally causes problems in connection with the installation and removal of new hardware and should therefore be disabled.

  • Page 10: Using The Software

    9. USING THE SOFTWARE You can connect the signal generator to your computer either with a USB cable or with a USB-TTL cable. Now start the JDS6600 software. Here you can first select the port where you have connected the signal generator to your computer. If you are not sure which COM port you have connected your signal generator to, open the Device Manager and check the connection in the Connections tab (COM &...
  • Page 11 At Extend Function you will find the measuring, counting, burst, sweep and pulse functions. In Abitrary, you can create various custom waveforms and store up to 15 on the device.

  • Page 12: Further Information

    We send you a parcel stamp with which you can send us your old appliance free of charge. For this possibility, you must contact us via e-mail at service@joy-it.net or via telephone. Information about packaging: Please package your old appliance safe during transport. Should you not have a suitable packaging material or you do not want to use your own material, you can contact us and we will send you an appropriate package.
