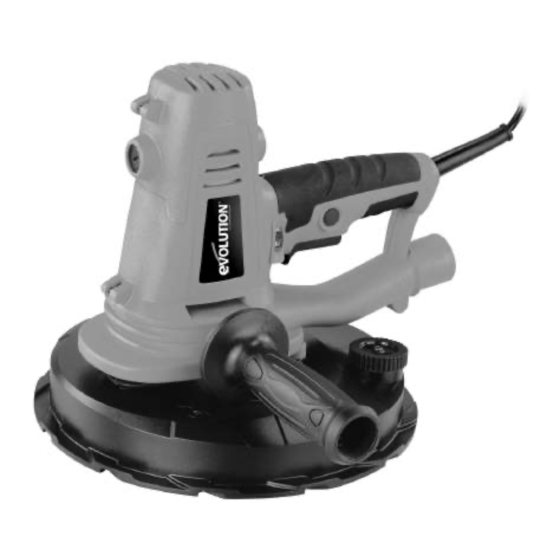

225mm HAND-HELD DRYWALL SANDER
Instruction
Manual
Read instructions before operating this tool.
Original written in UK English
Date Published: 01/03/2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R185CCSL and is the answer not in the manual?

Questions and answers

Summary of Contents for Evolution R185CCSL

  • Page 1 225mm HAND-HELD DRYWALL SANDER Instruction Manual Read instructions before operating this tool. Original written in UK English Date Published: 01/03/2016...
  • Page 2 BUILD ® Evolution Power Tools reserves the right to make improvements and modifications to the design and technical specification of this product without prior notification. DRYWALL SANDER - SPECIFICATIONS Power (230V ~ 50Hz) (Watts): 1050 RPM Rated speed (min -1 ):...
  • Page 3: Evolution Limited Guarantee

    (following list not exhaustive) blades, cutters, www.evolutionpowertools.com/register drills, chisels or paddles etc. In no event shall Evolution Power Tools be liable for loss or Congratulations on your purchase of an damage resulting directly or indirectly from Evolution Power Tools Machine. Please the use of our merchandise or from any other complete your product registration ‘online’...
  • Page 4 BUILD ® WARNING: When using electric tools wet conditions. Water entering a power basic safety precautions should always be tool will increase the risk of electric shock. followed to reduce the risk of fire, electric d) Do not abuse the cord. Never use the shock and personal injury.
  • Page 5: Health Advice

    HAND HELD DRYWALL SANDER clothing and gloves away from moving could result in a hazardous situation. parts. Loose clothes, jewellery or long hair can be caught in moving parts. 5) General Power Tool Safety Warnings g) If devices are provided for the [Service] connection of dust extraction and a) Have your power tool serviced by a...
  • Page 6 BUILD ® may result in electric shock, fire and/or VIBRATION serious personal injury. WARNING: When using this machine the operator can be exposed to high levels 1. Know your power tool. Read operator’s of vibration transmitted to the hand and manual carefully.
  • Page 7 HAND HELD DRYWALL SANDER increase the risk of electric shock. SAFETY INSTRUCTIONS FOR ALL OPERATIONS 8. Always make sure that any extension cord you use is in good condition, and if Safety Warnings Common for Sanding Operations: used outdoors is of a suitable type, and so labelled.
  • Page 8 BUILD ® for damage or install an undamaged your clothing, pulling the accessory into accessory. After inspecting and your body. installing an accessory, position yourself n) Regularly clean the power tool’s and bystanders away from the plane air vents. The motor’s fan will draw the of the rotating accessory and run the dust inside the housing and excessive power tool at maximum no-load speed...
  • Page 9: Intended Use Of This Power Tool

    WARNING: Do not operate this machine WARNING: This product is not intended if warning and/or instruction labels are for use by persons (including children) missing or damaged. Contact Evolution with reduced physical, sensory or mental Power Tools for replacement labels.
  • Page 10: Getting Started

    BUILD ® capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the safe use of the product by a person responsible for their safety and who is competent in its safe use. GETTING STARTED GETTING STARTED UNPACKING Caution: This packaging contains sharp...
  • Page 11 HAND HELD DRYWALL SANDER OVERALL VIEW OF DRYWALL SANDER 1. Sprung Sanding Head 6. Trigger Locking Button 2. Power 7. Dust Extraction Hose 3. Side Assist Handle 8. Dust Collection Bag 4. Power On/Off Trigger 9. Suction Regulator 5. Power rated speed control 10.
  • Page 12: Operation

    BUILD ® ASSEMBLY ASSEMBLY Some minor assembly is required to prepare the EB225DWSHH for use. • Attach the Side Assist Handle to the machine by screwing it into the preferred boss on the left hand or right hand side of the machine. (Fig. 1) Fig.
  • Page 13 HAND HELD DRYWALL SANDER To remove an Abrasive Sanding Disc: Sanding Head Suction Regulator Control • Lift the abrasive disc at any point along (Fig. 7) its edge, and gently peel upwards and away from the Backing Pad. To switch the machine ‘On’: •...
  • Page 14 BUILD ® OPERATION Caution: If ‘reach’ or access considerations OPERATION necessitate the use by the operator of a Holding the Drywall Sander ‘stand – on’ platform, such a platform must The Drywall Sander should always be held be suitable and stable in use e.g. a folding with both hands, one on the Trigger Switch inside scaffold or ‘hop on’...
  • Page 15: Maintenance

    HAND HELD DRYWALL SANDER • Keep the Sander in constant motion Slide this fastener from the Dust Collection whilst the abrasive disc is in contact with Bag to open the seam. the work surface. Use a steady, sweeping motion, allowing the rotating abrasive disc Dispose of the contents of the Dust to ‘float’...
  • Page 16 BUILD ® Checking and replacing the To replace the Power Driven Backing Pad Carbon Brushes WARNING: Only attempt this procedure WARNING: Disconnect the machine from with the machine disconnected from the the power supply before attempting to power supply. check or replace the Carbon Brushes. •...
  • Page 17: Ec Declaration Of Conformity

    ® The manufacturer of the product covered by this Declaration is: UK: Evolution Power Tools Ltd, Venture One, Longacre Close, Holbrook Industrial Estate, Sheffield, S20 3FR. FR: Evolution Power Tools SAS, 61 Avenue Lafontaine, 33560, Carbon-Blanc, Bordeaux, France. The manufacturer hereby declares that the machine as detailed in this declaration fulfils all the relevant provisions of the Machinery Directive and other appropriate directives as detailed below.
