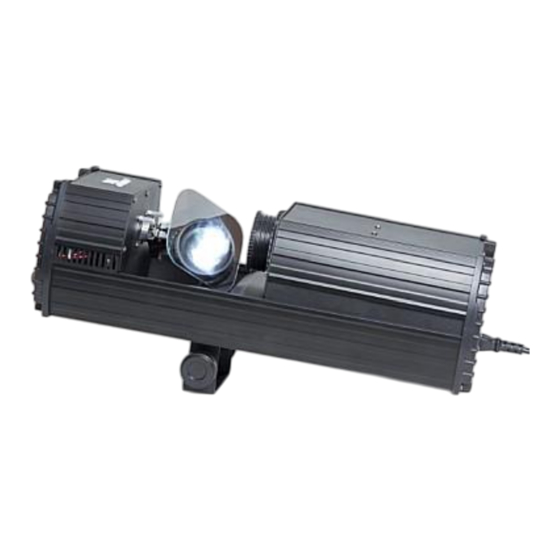

Summary of Contents for Lightmaxx Platinum EXEO Scan LED

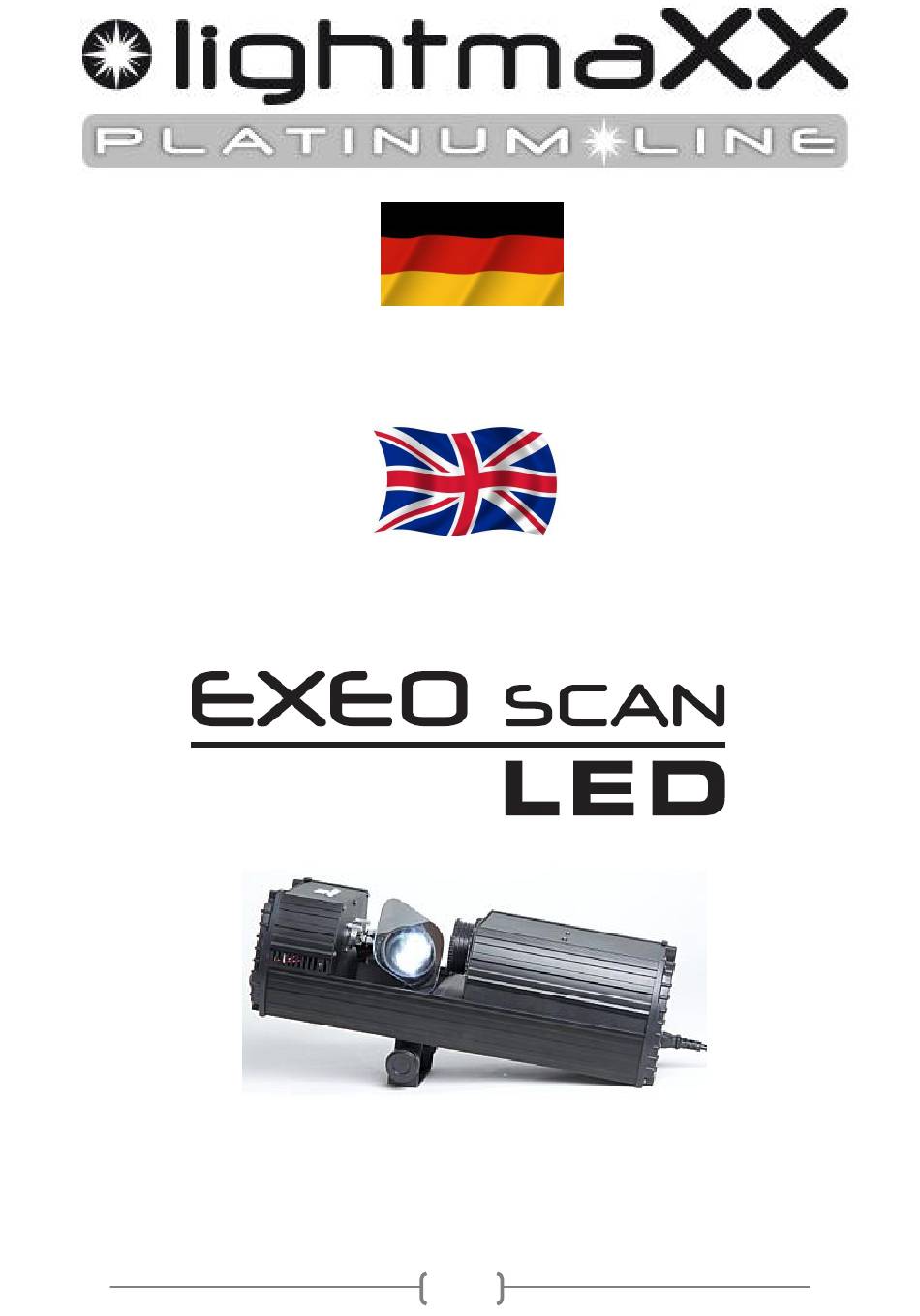

- Page 1 Bedienungsanleitung Seite: 1-4 User Manual Page: 5 - 10 LIG0009235-000 Lieber Kunde, vielen Dank das Sie sich für ein Produkt von LightmaXX entschieden haben. In der folgenden Anleitung erhalten Sie wichtige Informationen über dieses Produkt sowie deren Eigenschaften und Funktionen.
- Page 2 Technische Daten: Spannungsversorgung: 230 V AC, 50Hz Leistung: 90 Watt LED System: 1x 60 Watt Weisslicht LED Features: 10 DMX Kanäle 8 Farben + Weiss 7 Gobos + offen Motorischer Fokus 3-fach Prisma Betriebsfunktionen: ADDR A001 – A512 DMX Start-Adresse MAST (SO-M) Sound Aktiv als Mastergerät...
- Page 3 DMX Protokoll: Kanal Name DMX Wert Funktion 0-255 Pan Bewegung 0-255 Tilt Bewegung TILT 0-13 Weiss 14-27 Gelb 28-41 Rose Pink 42-55 Grün 56-69 Pink 70-83 Blau Farb Rad 84-97 Grün/Yellow 98-111 Deep Straw 112-127 Pink 128-190 Regenbogeneffekt, Vorwärts 191-255 Regenbogeneffekt, Rückwärts Offen 10-19...
- Page 4 Offen 4-127 Prisma aktiv Prisma 128-255 Rotation 0-59 Reserved 60-79 Farbrad und Goborad Reset 80-99 Komplett Reset 100-119 Start internes Programm 1 120-139 Start internes Programm 2 140-159 Start internes Programm 3 Function/Program 160-179 Start internes Programm 4 180-199 Start internes Programm 5 200-219 Start internes Programm 6 220-239...
-
Page 5: Safety Instructions
CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! For your own safety, please read this user manual carefully before you initial start-up. Every person involved with the installation, operation and maintenance of this device has to - be qualified - follow the instructions of this manual - keep this manual for the entire service life of the product... -
Page 6: Operating Determinations
If extension cords are used, make sure that the core diameter is sufficient for the required power consumption of the device. All warnings concerning the power cords are also valid for possible extension cords. Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power-cord by the plug. - Page 7 Never use the device during thunderstorms. Over voltage could destroy the device. Always disconnect the device during thunderstorms. The symbol determines the minimum distance from lighted objects. The minimum distance between light- output and the illuminated surface must be more than 0.5 meters. This device is only allowed for an installation via the mounting bracket.
-
Page 8: Operation
Connection with the mains Connect the device to the mains with the enclosed power supply cable. The occupation of the connection-cables is as follows: Cable International Brown Live Blue Neutral Yellow/Green Earth The earth has to be connected OPERATION After you connected the effect to the mains, the DMX LED SCANNER starts running. During the Reset, the motors are trimmed and the device is ready for use within approximately 20 seconds. - Page 9 DMX Protocol: Channel Name VALUE 0-255 Pan Movement By 540/360 0-255 Tilt Movement By 270 TILT 0-13 White 14-27 Yellow 28-41 Rose Pink 42-55 Green 56-69 Pink Carnation 70-83 Blue Colour Wheel 84-97 Spring Yellow 98-111 Deep Straw 112-127 Pink 128-190 Forwards rainbow effect with increasing speed 191-255...
-
Page 10: Cleaning And Maintenance
0-59 Reserved 60-79 colour Motor and gobo Motor reset 80-99 all Motor reset 100-119 Run with Internal program 1 built-in 120-139 Run with Internal program 2 built-in 140-159 Run with Internal program 3 built-in Function/Program 160-179 Run with Internal program 4 built-in 180-199 Run with Internal program 5 built-in 200-219...
