3 Operation and indication components
3.1

Overview Display

Pos. in Description
Fig. 1
1 State of charge Battery
(max. 10 bars, 1 bar
corresponds 10 %)
2 State of charge range
extender (max. 5 bars,
1 bar corresponds 20 %)
3 Display panel for
different screen views
with riding informa-
tion (see section 6 on
page 10)
4 Assist mode
(OFF, I, II, III)
5 Button
3.2

Overview Remote

Pos. in Description
Fig. 2
1 UP Button
2 DOWN Button
2
4

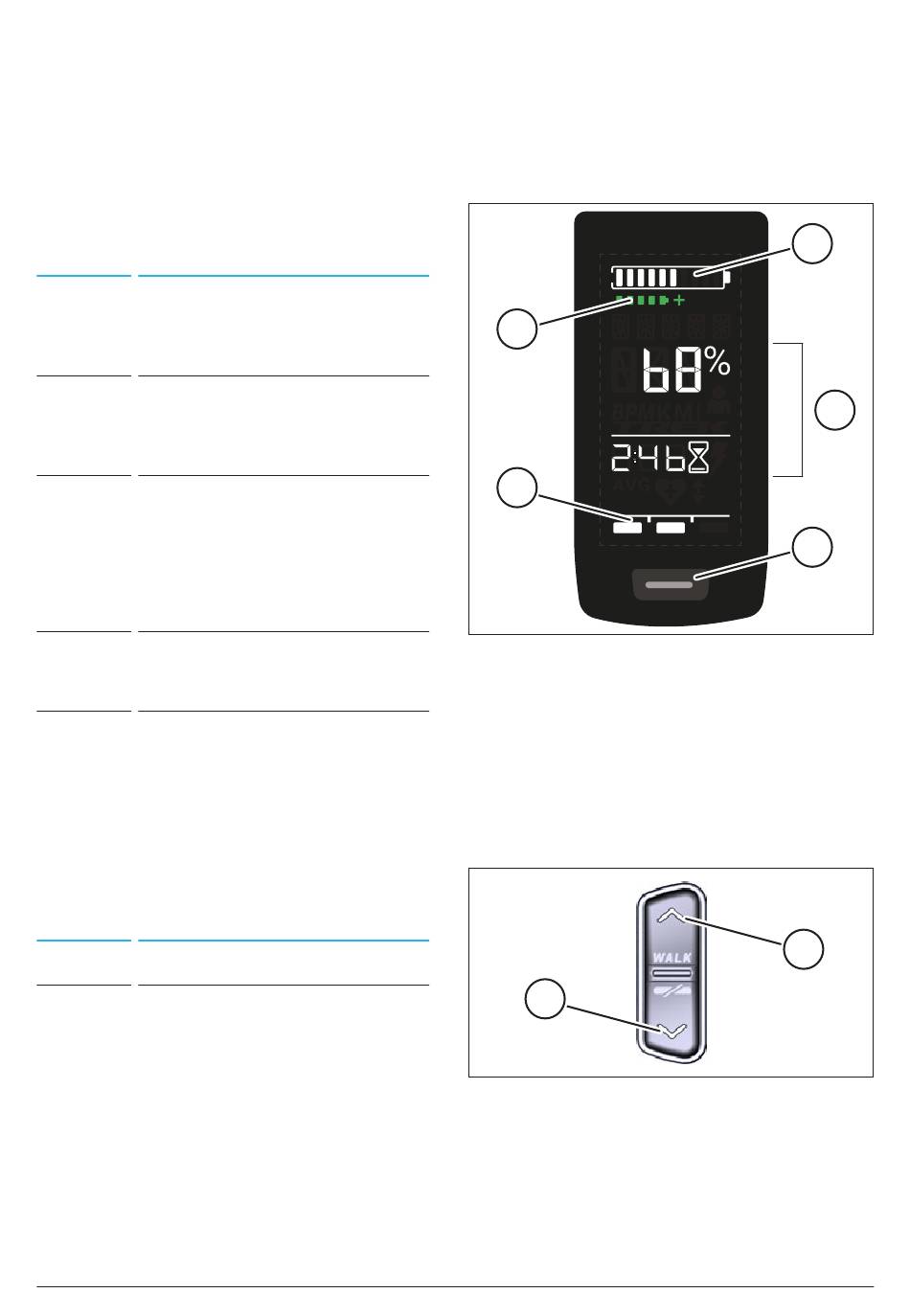

Fig. 1: Operation and indicaton
components on Display
2
Fig. 2: Operation on the Remote
1
3
5
1
EN - 7
