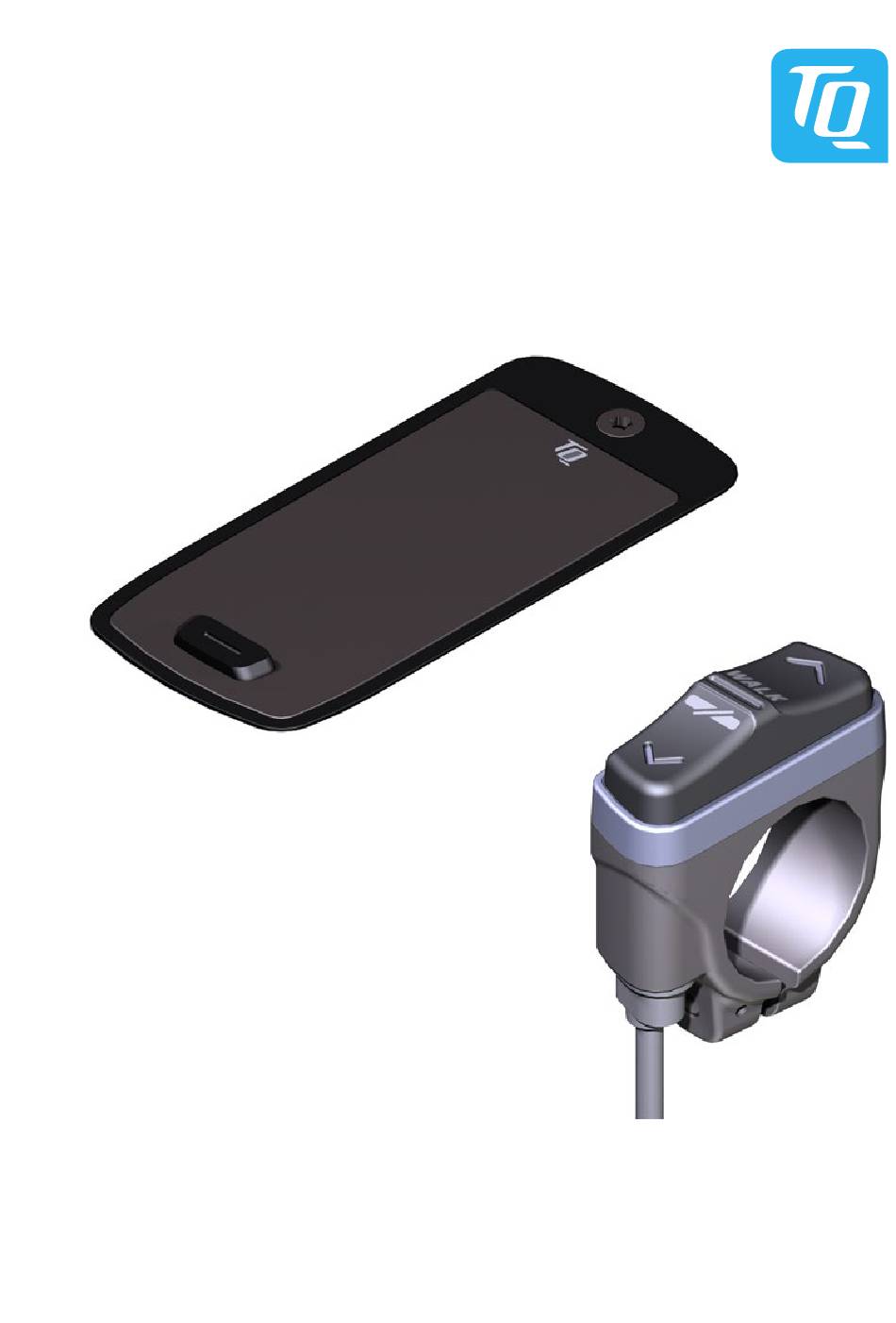

- Page 1 Display V02 & Remote V01 User Manual...
-
Page 2: Hazard Classification
Safety This instruction contains information that you must observe for your personal safety and to prevent personal injury and damage to property. They are highlighted by warning triangles and shown below according to the degree of danger. ► Read the instructions completely before start-up and use. This will help you to avoid hazards and errors. - Page 3 Intended Use The Display V02 and the Remote V01 of the drive system are intended exclu- sively for Displaying information and operating your e-bike and must not be used for other purposes. Any other use or use that goes beyond this is considered improper and will result in the loss of the warranty.
- Page 4 Riding safety instructions Observe the following points to avoid injuries due to a fall when starting with high torque: — We recommend that you wear a suitable helmet and protective clothing every time you ride. Please observe the regulations of your country. —...
- Page 5 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. No changes shall be made to the equipment without the manufacturer’s permission as this may void the user’s authority to operate the equipment.
-
Page 6: Technical Data
Declaration of Conformity We, TQ-Systems GmbH, Gut Delling, Mühlstr. 2, 82229 Seefeld, Germany, declare that the HPR Display V02 bicycle computer, when used in accordance with its intended purpose, complies with the essential requirements of RED Directive 2014/53/EU and RoHS Directive 2011/65/EU. The CE statement can be found at: www.tq-ebike.com/en/support/manuals/... -
Page 7: Overview Display
Operation and indication components Overview Display Pos. in Description Fig. 1 State of charge Battery (max. 10 bars, 1 bar corresponds 10 %) State of charge range extender (max. 5 bars, 1 bar corresponds 20 %) Display panel for different screen views with riding informa- tion (see section 6 on page 10) -
Page 8: Operation
Operation ► Make sure that the Battery is sufficiently charged before operation. Switch on drive system: ► Switch on the drive unit by shortly pressing the button (see Fig. 3) on the Display. Switch off drive system: ► Switch off the drive unit by long pressing the button (see Fig. - Page 9 Setup-Mode Setup-Mode activate ► Switch off the drive system. ► Press and hold the button on the Display (pos. 5 in Fig. 1) and the DOWN button on the Remote (pos. 2 in Fig. 2) for at least 5 seconds. >5 s >5 s Settings...
- Page 10 Riding information In the center of the Display, riding information can be shown on 4 different screen views. Regardless of the currently selected view, the state of charge of the Battery and optional range extender is Displayed at the top edge and the selected assistance mode is Displayed at the bottom edge.
- Page 11 Screen view Riding information — Current rider power in watt (163 W in this example). — Current drive unit power in watts (203 W in this example). — Current speed (36 km/h in this example) in kilometers per hour (KPH) or miles per hour (MPH).
- Page 12 Screen view Riding information — Activated light (LIGHT ON) — Switch on the light by pressing the UP button and DOWN button at the same time. Depending on wheter the e-bike is equipped with light and TQ smartbox (please see the smartbox manual for more information).
- Page 13 Select assist mode You can choose between 3 assist modes or switch off the assist from the drive unit. The selected assist mode I, II or III is shown on the Display with the corresponding number of bars (see pos. 1 in Fig. 5). —...
- Page 14 Set connections Connection e-bike to smartphone NOTE — You can download the Trek Connect app from the Appstore for IOS and the Google Play Store for Android. — Download the Trek Connect app. — Select your bike (you only need to pair your smartphone the first time).
- Page 15 Connection e-bike to bicycle computers NOTE — To make a connection with the bicycle computer, the e-bike and bicycle computer must be within radio range (maximum distance approx. 10 meters). — Pair your bicycle computer (Bluetooth or ANT+). — Select at least the three shown sensors (see Fig.
-
Page 16: Walk Assist
Walk assist The walk assist makes it easier to push the e-bike, e.g. off-road. NOTE — The availability and characteristics of the walk assist are subject to coun- try-specific laws and regulations. For example, the assistance provided by the push assist is limited to a speed of max. 6 km/h in Europe. —... -
Page 17: Reset To Factory Settings
Reset to factory settings ► Switch on the drive system. ► Press and hold the button on the Display and the DOWN button on the Remote for at least 10 s, the Setup-Mode is indicated first and RESET is followed (see Fig. 10). ►... - Page 18 General riding notes 11.1 Functionality of the drive system The drive system supports you when riding up to a speed limit permitted by law which may vary depending on your country. The precondition for Drive Unit assistance is that the rider pedals. At speeds above the permitted speed limit, the drive system turns off the assistance until the speed is back within the permitted range.
-
Page 19: Maintenance And Service
Cleaning — The components of the drive system must not be cleaned with a high-pressure cleaner. — Clean the Display and the Remote only with a soft, damp cloth. Maintenance and Service All service, repair or maintenance work performed by a TQ authorized bicycle dealer. -
Page 20: Error Codes
Error codes The drive system is continuously monitored. In the event of an error, a corre- sponding error code is shown on the Display. Error code Cause Corrective measures ERR 401 DRV SW General software error ERR 403 DRV COMM Peripheral communication Restart the system. - Page 21 Error code Cause Corrective measures ERR 453 DRV SW Drive Unit initalization Restart the system. Contact error your TQ dealer if the error still occurs. ERR 457 BATT CONN Drive Unit voltage error ERR 458 BATT CONN Drive Unit overvoltage Replace the Charger and use error only original Charger.
- Page 22 Error code Cause Corrective measures ERR 481 BATT COMM Battery communication error ERR 482 DRV SW Drive Unit configuration error ERR 483 DRV SW ERR 484 DRV SW ERR 485 DRV SW ERR 486 DRV SW ERR 487 DRV SW ERR 488 DRV SW ERR 489 DRV SW Restart the system.
- Page 23 Error code Cause Corrective measures ERR 49C DRV SENS Restart the system and avoid ERR 49D DRV SENS Torquesensor error unintended use. Contact your ERR 49E DRV SENS TQ dealer if the error still occurs. ERR 49F DRV SENS ERR 4A0 DRV COMM Check the charging port for CAN-Bus communication dirt.
- Page 24 Error code Cause Corrective measures WRN 601 SPD SENS Speedsensor problem Check the distance between magnet and Speedsensor. Restart the system. Contact your TQ dealer if the error still occurs. WRN 602 DRV HOT Drive Unit overtempera- Permissible operating tempera- ture ture exceeded.
- Page 25 EN - 25...
- Page 26 The information in this publication is reviewed regularly and any necessary corrections are included in subsequent editions. All trademarks mentioned in this manual are the property of their respective owners. Copyright © TQ-Systems GmbH TQ-Systems GmbH | TQ-E-Mobility Art.-No.: HPR50-DISV02-UM Gut Delling l Mühlstraße 2 l 82229 Seefeld l Germany...
