HPR Range Extender V01 160 Wh
User Manual
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V01 and is the answer not in the manual?

Questions and answers

Related Manuals for TQ-Systems V01

Summary of Contents for TQ-Systems V01

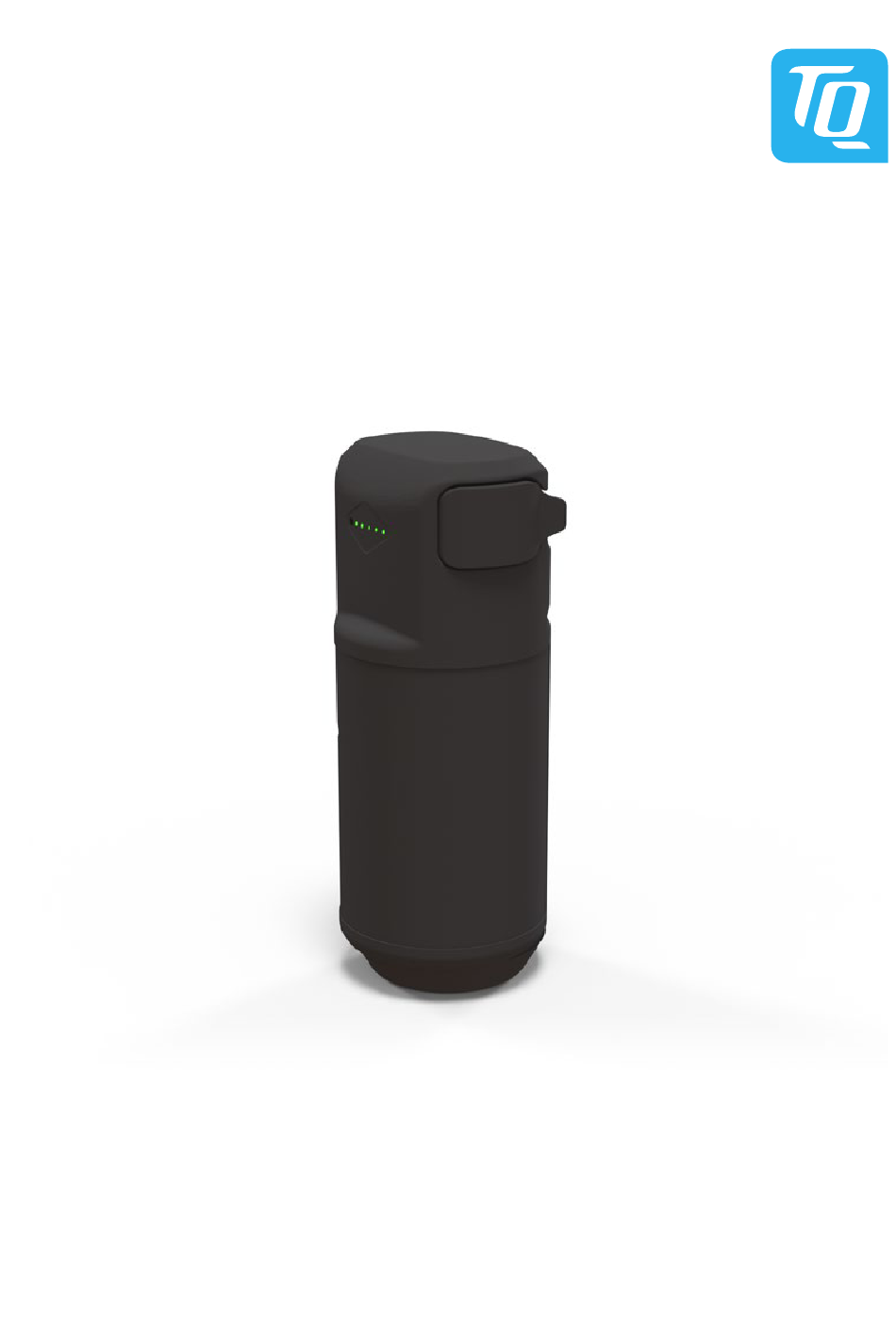

  • Page 1 HPR Range Extender V01 160 Wh User Manual...

  • Page 2: Hazard Classification

    Safety These instruction contains information that you must observe for your personal safety and to prevent personal injury and damage to property. They are highlighted by warning triangles and shown below according to the degree of danger. ► Read the instructions completely before start-up and use. This will help you to avoid hazards and errors.

  • Page 3: Intended Use

    Any other use or use that goes beyond this is considered improper and will result in the loss of the warranty. In case of non-intended use, TQ-Systems GmbH assumes no liability for any damage that may occur and no warranty for proper and functional operation of the product.
  • Page 4 • Ensure good ventilation and consult a doctor if you notice any unde- sirable effects on the respiratory organs. The vapors may irritate the respiratory organs. — Liquid may leak from the battery if used improperly. Avoid any contact with this liquid. Wash it off with water if you do come into contact with the liquid.

  • Page 5: Technical Data

    Technical data Nominal voltage 50.4 V Nominal capacity 2.8 Ah Nominal energy 160 Wh Discharge logic When operating the e-bike, the Range Extender is discharged first afterwards the battery. Dimensions ∅ 76 mm, length 185 mm / ∅ 3”, length 7.3” Protection class IP66 Charging temperature...

  • Page 6: Operation

    Operation Installing the Range Extender on the e-bike The design of the mounting system for the Range Extender on the e-bike depends on the manufacturer. This section shows how to mount the Range Extender on the down tube of the e-bike using the FIDLOCK® system. Make sure especially in case of retrofit that no components of the e-bike such as the battery or wiring harness are damaged when...
  • Page 7 CAUTION Risk of accident due to release of the Range Extender from the locking mechanism ► Only use the two flat head screws provided by the bicycle manufacturer or included in the scope of delivery to fix the FIDLOCK® Bike Base. Screws with a higher head mean that the FIDLOCK®...
  • Page 8 3.1.2 Fasten FIDLOCK® Force Connector to Range Extender WARNING Fire hazard due to damage to the Range Extender by using screws that are too long ► Only use the screws provided by the bicycle manufacturer or the screws included in the scope of delivery to fasten the FIDLOCK® Force Connector.
  • Page 9 3.1.4 Locking the Range Extender into the FIDLOCK® Bike Base Fig. 5: FIDLOCK® system unlocked Fig. 6: FIDLOCK® system locked The FIDLOCK® system is still unlocked after inserting the Range Extender. This condition is indicated by the red field (Pos. 1 in Fig. 5) on the locking tab. ►...
  • Page 10 3.1.5 Connect the connection cable to the Range Extender ► Connect the plug (Pos. 1 in Fig. 7) of the connection cable to the socket (Pos. 2 in Fig. 7) in the Range Extender. ► Fasten the connector to the Range Extender with the M3 x 8 socket head screw (Pos.
  • Page 11 CAUTION Risk of accident due to free hanging connection cable on the Range Ex- tender ► Always connect the Range Extender to the charging port of the battery in the bicycle frame when you have installed the Range Extender on the bicycle.
  • Page 12 CAUTION Risk of accident due to activated drive system during the charging pro- cess ► Always connect the Range Extender to the charging port of the battery in the bicycle frame when you have installed the Range Extender on the bicycle.

  • Page 13: Notes On Charging

    Notes on Charging NOTE The temperature of the Range Extender must be within the permissible charging temperature range (0 °C to 40 °C / 32 °F to 104 °F). Otherwise the charging process will not start. — The Range Extender can be charged directly on the e-bike or separately. —...
  • Page 14 Transport — The transport of lithium batteries is subject to country-specific laws and regulations. Inform yourself about the respective regional regulations and observe them during transport. — For transport observe the special requirements for packaging and labeling that apply in your country. —...

  • Page 15: Maintenance And Service

    Maintenance and Service All service, repair or maintenance work performed by a TQ authorized bicycle dealer. Your bicycle dealer can also help you with questions about bicycle use, service, repair or maintenance. Environmentally friendly disposal The components of the drive system and the batteries must not be disposed of in the residual waste garbage can.
  • Page 16 The information in this publication is reviewed regularly and any necessary corrections are included in subsequent editions. All trademarks mentioned in this manual are the property of their respective owners. Copyright © TQ-Systems GmbH TQ-Systems GmbH | TQ-E-Mobility Art.-No.: HPR50-RE01-UM Gut Delling l Mühlstraße 2 l 82229 Seefeld l Germany...
