Summary of Contents for Scania AUS4STD

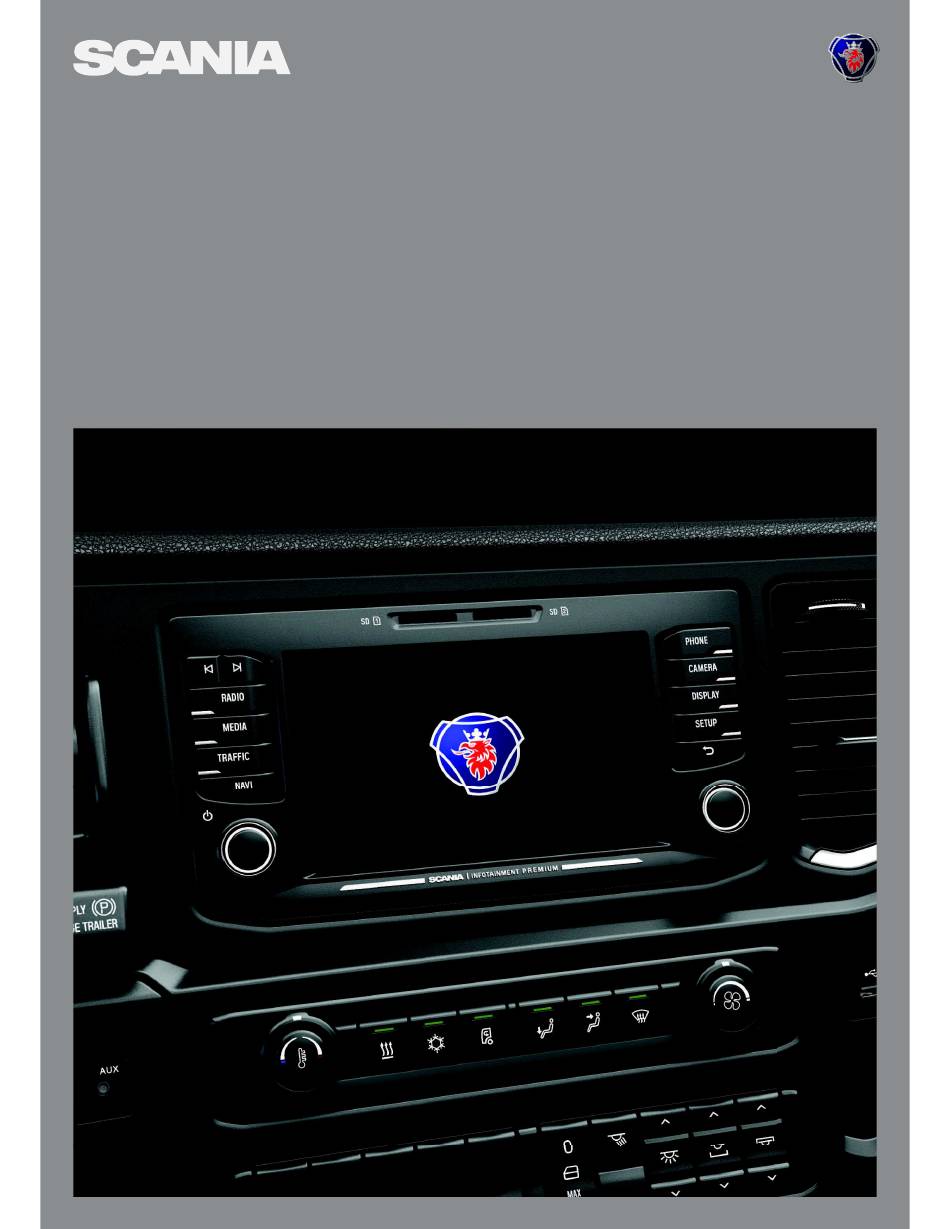

- Page 1 Truck Infotainment with 7” screen Radio with navigation system This manual can be downloaded at: www.scania.com/manuals...
-
Page 2: Buttons And Controls
BUTTONS AND CONTROLS Buttons Button In radio mode: Return to previous view Short press: Switch to next/previous Right rotary encoder/press button preset (radio) or next track (media) Select menu item, change setting (rotate); Long press: Switch to next/previous call up menu station on station list (radio) Confirm setting (press) In media mode:... -
Page 3: Table Of Contents
Media sources............30 CONTENT Audio files on an MP3 player or USB drive ..30 Playing audio files from an SD card ....30 Buttons and controls ..........2 Playing files from a USB mass storage device ..30 Important information ..........5 Connecting a TV/EXT device on AUX 2*..... - Page 4 LAUNCH CARPLAY APPS ........88 Launch voice recognition (Siri) ........88 Eyes Free Function (Siri) ........88 Fleet Management Services* ........89 Start Scania Fleet ............89 Appendix ..............90 Optional features/settings ......... 90 Wi-Fi connection ..........90 Sound settings - Subwoofer level ......91...
-
Page 5: Important Information
IMPORTANT INFORMATION This radio navigation device was manufactured with the latest technology and in accordance with recognised safety regulations. However, it may be dangerous if you do not observe the safety information in these instructions. Note Read these instructions carefully and completely before first use. Keep these instructions where they will be accessible to all users at all times. -
Page 6: Notes On Handling Sd Cards
Only insert or remove the SD card when the unit is switched off. USABLE NAVIGATION SD CARDS This radio-navigation device may only be used with original data storage SCANIA media. Note The radio-navigation unit is not designed for the use of third-party navigation SD cards. -
Page 7: Formatting Conventions
Formatting conventions Safety instructions are highlighted with a grey bar and the symbol: Helpful hints are highlighted with a grey bar and the symbol: You will also find items in these instructions, clearly marked as illustrated here: Action steps: · Press ... Device buttons: e.g. -
Page 8: Introduction
INTRODUCTION FEATURE LIST Mode Feature Radio FM (18 stations) AM (18 stations) LW (6 stations) MW (6 stations) SW (6 stations) DAB (18 stations)* *) DAB may not be receivable in every region. USB port 2 USB ports: Media data Charging external media USB port 1: Provides current up to 1.5 A... -
Page 9: Radio Reception
RADIO RECEPTION Radio reception can be affected by atmospheric interference, noise, distortion or other reception interference, such as: Increased distance from the transmitter Multipath reception due to reflection or shadowing In such conditions the radio reception is affected. However, this not due to faulty behaviour of the unit. -
Page 10: Multifunction Knob
Touch screen Risk of damage to the touch screen The unit is equipped with a capacitive touch display. Only use your fingers. Do not use sharp or hard objects such as pens or pencils to operate the touch screen. The screen of the system has a sensory interface that enables direct selection of displayed menu options. -
Page 11: Scroll Through A List Of Menu Items
Scroll through a list of menu items With the touch screen: · Tap on the button at the top or bottom of the slider. · Move the slider of the slider bar up or down with your finger. · Swipe your finger up or down to scroll through the list of menu items. With the right rotary encoder/push button ·... -
Page 12: Customise Settings
CUSTOMISE SETTINGS The following examples describe the method of changing the settings available in the different menus using the menu options on the screen or the right rotary encoder/push button Sound settings · Press the SETUP button. · Tap on the icon. - Page 13 Mid: Use this setting to modify the middle frequencies of the audio source. Treble: Use this setting to modify the high frequencies of the audio source. · Tap on Advanced to open the Advanced Equalizer. Advanced Equalizer: The Advanced Equalizer includes ten sliders (-9 to 9) to edit audio frequency ranges. Customised settings can be stored.
-
Page 14: Volume Settings
Note If the setting for speed-dependent volume is set to "Off", the volume does not increase at higher vehicle speeds. If the setting for speed-dependent volume is set to "High", the volume is increased to the maximum at higher vehicle speeds. Change settings Via touch screen: ·... - Page 15 Adjusting the phone volume Note The phone volume can also be adjusted during a call using the left rotary encoder/push button Once the volume is set, the customised setting is saved by the system and is used as a default for all future calls until the setting is changed again. If the volume of the phone is changed, the ringtone volume also changes.
-
Page 16: System Settings
SYSTEM SETTINGS The default settings for the system can be changed via the SYSTEM SETTINGS menu. · Press the SETUP button and tap on the icon. With the touch screen: · Tap on a menu item to change the setting. With the right rotary encoder/push button ·... -
Page 17: Units
Units · Select the menu item Units. > A list of the Units is displayed. · Select the desired system of units: Automatic Metric (km, m, t, kmh) Imperial (mi, yd, t, mph) Note If Automatic is selected, the units are set via the instrument cluster. Automatic text scrolling ·... -
Page 18: Bluetooth And Phone
Factory reset This menu entry allows the deletion of all personal data. · Select the menu item Factory reset. > A popup requests user acknowledgement. = Deletes all personal data Another popup informs the user that all personal data has been deleted = Cancels the query Goes back to the menu SW vers. -
Page 19: Display Settings
DISPLAY SETTINGS Customising the display · Press the SETUP button and tap the icon. · Tap on Brightness. · Select the appropriate option to adjust the Brightness of the screen and to adjust the display to match the light conditions of your surroundings. Note There are one automatic and two manual modes ( day or... -
Page 20: Theft Protection
Theft protection is activated when the vehicle identification number (VIN) of the vehicle does not match the device VIN number. > A popup appears. Please contact your local SCANIA dealer SPEECH DIALOGUE SYSTEM – SDS* *) The voice recognition feature is dependent on vehicle configuration, the language set and the region in which the vehicle was sold. -
Page 21: Supported Commands
Supported commands Navigation, Media, Phone and Radio are the four major areas supported by the speech dialogue system. Below is the list of major commands supported by the on- board Voice Recognition system. Europe: The following commands are supported by the on-board voice recognition system: Commands Album <Name>... -
Page 22: Dialogue Session
Other regions (outside Europe): The following commands are supported by the on-board voice recognition system: Commands Tune to < Frequency > Seek Up Seek Down Next preset Previous preset FM/AM Next Track Previous Track Album <Name> Genre <Name> Artist <Name> Playlist <Name>... - Page 23 Example 1: Disambiguation between two similar artists: Example 2: To select an album and play it: · Press the Push to Talk button on the steering wheel to initiate voice recognition > A beep is heard. The speech session has started. >...
-
Page 24: Radio
RADIO You can only use the touch screen to select or activate the menu items in the Radio menu. ACTIVATING THE RADIO · Turn on the system. Press the RADIO button. · > The radio function is activated. The last station you listened to is played after activating the radio. Note If an RDS station is being played, information about the station name and the programme will be displayed. -
Page 25: Traffic Announcements (Ta)
> The last station played on the selected band is played. Note If the band is changed from FM to DAB, to AM or vice versa, the currently received station remains active. There is a FM band menu. You can store 18 FM stations. There is an AM band menu. -
Page 26: Station Search
STATION SEARCH You can set the desired radio station either automatically or manually. Via the touch screen: Auto seek to previous available station Auto seek to next available station Manual tune to previous frequency by specific step Manual tune to next frequency by specific step. -
Page 27: Manual Tuning
Manual tuning Using the right rotary encoder/push button · Rotate the rotary encoder/push button in the RADIO menu; clockwise or anti-clockwise to change the receiving frequency. Using the frequency display: · Tap on the icon. > A frequency scale is displayed. Perform one of the following steps to set the desired station manually. -
Page 28: Radio Settings
RADIO SETTINGS · Press the RADIO button and tap on the icon. > The Radio settings menu is displayed. The following menu items are available: Traffic news Enables or disables traffic announcements. Sound settings SOUND SETTINGS Menu opens. For more details see the "Introduction" chapter, sub-chapter "Sound settings". -
Page 29: Media
MEDIA The last selected Media source can always be selected by pressing the MEDIA button. GENERAL INFORMATION For the position of the USB port, see the vehicle documentation. Note The USB port must always be kept clean and dry. An MP3 player, USB drive or an SD card (via the USB port/adapter) can be connected to the USB port. -
Page 30: Media Sources
MEDIA SOURCES Audio files on an MP3 player or USB drive · Connect the MP3 player/USB drive to the USB port via a USB cable. > Audio files are played automatically. Supported media files: MP3, WMA, AAC, Flac Playing audio files from an SD card ·... -
Page 31: Media Player
Media Player Picture Viewer The orientation of each picture depends on the source medium. There is no option for the user to rotate pictures. The user can select an image from within the USB browsing menu, then the picture viewer will be shown. Buttons are shown on the picture viewer to switch to the previous and next picture and to close the picture viewer. -
Page 32: Bluetooth Audio Connection
Supported Media Files Media Containers FLAC MP3 (MPEG-1 Layer 3, MPEG-2 Layer 3) WMA 9 (standard; lossless; voice), WMA9.1, WMA9.2 Audio Codec Waveform (WAV – PCM Windows format) AAC (MPEG-4 AAC, Low Complexity Profile) HE-AAC H.263 (v1) MPEG-4 Part 2 (ISO/IEC 14496-2; profiles: simple, advanced) Video Codec MPEG-4 Part 10 / H.264 (ISO/IEC 14496-10;... -
Page 33: Connecting A Bluetooth Device
Connecting a Bluetooth device Important information A maximum of 2 devices can be connected to the system at the same time. A maximum of 10 devices can be paired to the system. Only one connected device can be attached to the system at any given time. Perform the following procedure to pair a Bluetooth device with the system. -
Page 34: Bluetooth Music Mode
BLUETOOTH MUSIC MODE Activating Bluetooth music mode · Press the MEDIA button. · Tap on the SRC button. · Select the Bluetooth button to activate Bluetooth music mode. > The external audio source can now be operated via the system. ·... - Page 35 Requirements The following requirements must be met to use the Bluetooth music mode of the system: Bluetooth functionality of the system must be activated. Bluetooth functionality of the external Bluetooth audio source must be activated (see user handbook for the Bluetooth device). Depending on the external Bluetooth audio source, it may be necessary to set the Bluetooth device to "visible", see user instructions of the Bluetooth device).
-
Page 36: Aux Port
AUX PORT You can connect external audio sources at the AUX jack. Look at the vehicle documents to find the location of the AUX port. Note Not all vehicles have an AUX port. The AUX socket must always be kept clean and dry. For example, you can connect a portable CD player to the AUX input with a 3.5 mm plug. -
Page 37: Media Settings
MEDIA SETTINGS · Press the MEDIA button and tap on the icon. > The Media settings menu is displayed. The following menu items are available: Traffic news Enables or disables traffic announcements. Sound settings SOUND SETTINGS Menu opens. For more details see the "Introduction" chapter, sub-chapter "Sound settings"... -
Page 38: Phone
PHONE* *) Phone and related settings are optional features for your device. The phone function is also related to media streaming via Bluetooth. Note You can only connect Bluetooth mobile phones to the system when a hands-free device is installed in the vehicle. You can use your mobile phone through the system. -
Page 39: Bluetooth Connection
Bluetooth connection Bluetooth is a radio standard for the wireless connection of devices such as a mobile phone or an MP3 player. To establish a Bluetooth connection to the system, the Bluetooth function of the Bluetooth device must be activated and the Bluetooth device is set to visible (detection mode). -
Page 40: Pairing A Bluetooth Device
Pairing a Bluetooth device For details, see the "Media" chapter, sub-chapter "Bluetooth audio connection”, “Connecting a Bluetooth device". Connection to another paired device · Tap on List of paired devices in the BLUETOOTH SETTINGS menu. > A list of all Bluetooth devices paired with the system is displayed. >... -
Page 41: Disconnecting A Paired Device
Disconnecting a paired device · Tap on List of paired devices in the BLUETOOTH SETTINGS menu. > A list of all Bluetooth devices paired with the system is displayed. · Select the desired Bluetooth device. · Tap on Delete pairing. ·... -
Page 42: Operation
OPERATION When the Bluetooth connection has been established, you can perform the functions using your phone through the system. Note You can use the mobile phone in hands-free mode. When Bluetooth connection is established between the mobile phone and the system, the mobile phone data is sent to the system. -
Page 43: Using The Phone Book
Using the phone book The contacts in the phone book are stored with multiple phone numbers (up to 4), address, notes and images. To make a call using the phone book: · Tap the PHONE menu in the phone book. >... -
Page 44: Enter A Phone Number
Enter a phone number Tap on the button in the PHONE menu. > The following screen is displayed. · To initiate a call, enter the desired phone number. · Use the icon to delete incorrect entries. · Tap on Call. >... - Page 45 A second incoming call If you receive a second call during an active call, a message with the phone number or name (if available) is displayed. Note If your provider offers this service, you can hear call waiting for the second call.
-
Page 46: Functions During The Call
FUNCTIONS DURING THE CALL The PHONE menu is displayed during the current call. Temporarily deactivate hands-free mode · Tap on the icon > The call can only be continued through the mobile phone. To return to hands-free mode, · Tap again on the icon. -
Page 47: Phone Book Setup
PHONE BOOK SETUP If you have connected a mobile phone with the system, your mobile phone book with phone numbers and names (if available) is downloaded to the system automatically. Depending on how many numbers are in your phone book and the connected phone, this may take several minutes. -
Page 48: Add Favourites
Note Some mobile phones do not allow access to the phone book of the SIM card and/or the mobile phone. Add favourites You can add 20 contacts from the phone book as favourites. · Press the PHONE button. · Tap on Favourites. ·... -
Page 49: Read Text Messages
Read text messages · Press the PHONE button. · Tap on Text messages. > The TEXT MESSAGES menu is displayed. · Select a text message from the list. > The text message is displayed. · Tap on the icon. > The text message is read aloud. -
Page 50: Phone Settings
PHONE SETTINGS Note The PHONE SETTINGS menu is only available if a Bluetooth device is connected to the radio with navigation system. · Press the PHONE button and tap on the icon. > The PHONE SETTINGS menu is displayed. Following menu items are available: Bluetooth BLUETOOTH SETTINGS menu opens. -
Page 51: Navigation
NAVIGATION* *) Available functionality of the navigation system is dependent on the map data content and may differ depending on the respective region. Road safety This unit is designed for use in commercial vehicles. Specifications that are required for route guidance of commercial vehicles, such as height restrictions or maximum permissible loads, are considered in the route calculations, to the extent that these specifications are stored in the navigation data. -
Page 52: Advantages Of Tmc/Tpeg
TMC/TPEG coverage is constantly increasing. MAP DATA The map data is stored on a SD card delivered with the navigation system. Note A 5-year subscription to SCANIA Map Updater is included. Visit http://scania.com/ for more information. Map data of additional regions is available commercially. -
Page 53: Information On The Map Display
INFORMATION ON THE MAP DISPLAY If the navigation system is activated, the following information is displayed: Navigation menu Destination/ next stopover Remaining distance to the destination/next stopover Estimated time of arrival or remaining travel time to destination/next stopover. Tap the time display to toggle between the arrival time and the remaining travel time. - Page 54 Button to open the ROUTE OVERVIEW: The Route Overview button opens a screen which shows the entire route on the map. This screen is zoomable and scrollable. Pressing the Resume button goes back to the normal map view. Status of the current road for your vehicle Vehicle profile is compared with the route data.
-
Page 55: Navi Button And Menu Navigation
NAVI BUTTON AND MENU NAVIGATION · Press on the NAVI button to open the Navigation Screen. > The Navigation Screen provides access to all system functions for destination entry and navigation. Destination entry · Tap on the icon. > The following screen is displayed: The following menu options are available: ·... - Page 56 · Fill in all address fields using the letter keys. Note The system only displays the letters which can be used for destination input. If there are different keyboard pages available for additional/special letters, they are selectable by using the lower page selection button (e.g. 1/4, 2/4 etc.).
- Page 57 Note If you do not enter any characters in the street name, you can skip the address input. · Tap on OK. > The destination is then set to the city centre. · Enter the desired house number or intersection. Note If you do not enter a house number, you can skip the address input.
-
Page 58: Alternative Routes
Options This menu is available for an entered destination address or a selected POI. · Tap the CONFIRM DESTINATION menu in Options. > The destination or POI Options is shown. · Save destination Tap this option to save the displayed destination data in the address book. ·... -
Page 59: Poi - Point Of Interest
· Truck Use this option to display truck specific POIs (e.g. truck parking, truck repair shops, petrol/gasoline stations etc.). · Dealer Use this option to display Scania dealer specific POIs. > POIs will be displayed in the POI RESULTS menu. -
Page 60: Geo Coordinates
· Tap on By Name or By Distance to sort the determined POIs. · Select a POI from the list. > The system displays a map view of the area around the previously-entered address. The new destination is indicated by a red marker. The information bar contains the POI name, street name and city of the destination. -
Page 61: Home Address
Home address You can use this option to save your own address and/or select the already stored home address as a new destination. Create home address · In Navigation Screen press the NAVI button and tap on the icon. > The DESTINATION INPUT menu is displayed. ·... -
Page 62: Contacts
Contacts Note Only if a mobile phone is connected to the system via Bluetooth and contains contact address data in a valid format such as: · Street + House number e.g.: Granparksvägen 10 · Postal code and/or City name 151 48 Södertälje ·... -
Page 63: Save Position Information
Save position information Select this option to store the address/GPS coordinates of your current position. · Press the NAVI button. · Tap on the icon. · Tap on Save current position. Map view when route guidance is inactive The following elements are shown on the map when no route guidance is active: ·... -
Page 64: Destination Memory
DESTINATION MEMORY Use this option to manage your destinations. Selecting a destination from the memory · In Navigation Screen press the NAVI or Navigation menu button. · Tap on the icon. · The destination memory appears RECENT DESTINATIONS · Tap on Recent destinations. ·... -
Page 65: Options During Route Guidance
Note The system receives text, address and geo-coordinates. Depending on whether the address is available, the list entry will show either the address or the geo-coordinates. If a text string is available for the address or geo-coordinates, this will be shown on the left-hand side of the destination options screen. -
Page 66: Add Destination
The following menu options are available: · Stop RG Tap on this option to cancel the current route guidance or remove a stopover from route. · Add destination Tap on this option to add a stopover or a new destination. ·... -
Page 67: Vehicle Profiles
> The CONFIRM ROUTE menu is shown. > Stopovers are indicated by a yellow flag. · Tap on Confirm route to start route guidance Vehicle profiles The navigation system is optimised for heavy vehicles. The vehicle profiles can be changed all the time, even during active route guidance. You can store the characteristics of different vehicle combinations in up to 4 different profiles (e.g. - Page 68 The navigation system is optimised for heavy vehicles. Therefore the supported navigation map data contains truck-related street limitations. Set the following vehicle properties: · Width · Height · Length · Number of axles · Single axle weight · Current weight ·...
-
Page 69: Avoid Options
Note You can also find the vehicle characteristics in the NAVIGATION menu under the settings icon > Vehicle profiles. Hazardous Load In the HAZARDOUS LOAD menu you can select hazardous material by classes. Tapping an icon opens a description of the respective hazardous material class. If your vehicle is carrying a hazardous load, activate the respective checkboxes. -
Page 70: Blocking
Note Toll and vignette roads are a form of road pricing for vehicles in addition to road tax. · Toll roads: Road pricing calculated on distance travelled · Vignette: Permission to use a road for a certain period of time Note Sometimes (depending on the route) it is not possible to match every set truck profile and avoidance option. -
Page 71: Voice Guidance
Note A blocked route will be marked on the map. After the blocked route has been avoided, the block road function will be automatically deactivated. Voice guidance Use this menu to turn voice guidance on and off. · Press the NAVI button during a running route. - Page 72 The Manoeuvre list displays all manoeuvres in the calculated route, starting from the current location. The following information can be displayed on each list: · Name of street, motorway or slip road · Directional arrow or motorway symbol · Border crossings ·...
-
Page 73: Setup Button And Menu Navigation And Traffic
· Change the sequence of the list entries by tapping on the Arrow buttons. · Tap on the icon to go back to route guidance. > The route will be recalculated. SETUP BUTTON AND MENU NAVIGATION AND TRAFFIC · Press on the SETUP button to open the SETTINGS menu. -
Page 74: Route Guidance
3D map view driving direction In 3D mode the terrain is rendered with height/elevation-data included (3D terrain) and the angle of the camera is adjusted to ground level. · Auto-zoom If you select this option, the map scale is adjusted automatically by the navigation system (increases and decreases) in order to ensure reliable navigation. - Page 75 · Show lane guidance Use this menu to display lane guidance. · Show speed limit Use this menu to display speed limits and warnings · Arrival information Use this option to toggle between displaying the estimated time of arrival and the estimated remaining travel time.
-
Page 76: Import Pois
Import POIs You can define special destinations in addition to the special destinations stored on map database SD card. Your created special destinations (POIs) can be downloaded to the system. You can create the following: · Destination contact points Create POIs: To create special destinations, perform the following steps: ·... -
Page 77: Map Version
Example: <kml> <Document> <name>My POIs</name> <Placemark> <name>My POI 1</name> <metadata> <telephone>1234567890</telephone> </metadata> <Point> <coordinates>Longitude,Lattitude</coordinates> </Point> </Placemark> <Placemark> <name>My POI 2</name> <metadata> <telephone>1234567890</telephone> </metadata> <Point> <coordinates>Longitude,Lattitude</coordinates> </Point> </Placemark> <Placemark> <name>My POI 3</name> <metadata> <telephone>1234567890</telephone> </metadata> <Point> <coordinates>Longitude,Lattitude</coordinates> </Point> </Placemark> </Document> </kml> Storing text files on a USB mass storage device or SD card ·... -
Page 78: Navigation Database
NAVIGATION DATABASE The map data required for navigation is stored on an SD card that comes with the system. Navigation SD card You can order new navigation SD cards to obtain the most recent map data. Risks to the unit Do not use a SD card which has cracks, is deformed or has been repaired with tape. -
Page 79: Traffic Messages
TRAFFIC MESSAGES* *) Only available if navigation map data is inserted. Note Traffic messages shows you information about events received by RDS- TMC or (available with optional DAB radio function) DAB-TPEG. Based on this information, the system is capable of recalculating routes avoiding traffic. - Page 80 · Show traffic events You can enable or disable the visibility of selected event types in the navigation screen. The following options, among others, are possible: Lane restrictions Traffic flow Accidents Closures Other The Show traffic info navigation setup option completely enables/disables visibility. Traffic flow information In active route guidance the route may be displayed in different colours.
-
Page 81: Camera
CAMERA Note The camera system is optional and depends on the vehicle configuration. Please contact dealer for more information. Traffic safety The camera system is used to support visibility during forward and backward movement of your vehicle. But the camera can also be configured as a general camera and install it at a reasonable location around the vehicle. -
Page 82: Camera Settings
Camera settings You can use this option to select a camera, to change the names of the cameras, and to display a preview of the two cameras. · Press the CAMERA button and tap on the icon. > The Camera settings menu is displayed. ·... -
Page 83: Steering Wheel Remote Control
STEERING WHEEL REMOTE CONTROL* *) Steering wheel remote control is dependent on vehicle configuration. Note The steering wheel remote control function is optional and depends on the vehicle configuration. See the separate remote control unit manual for connection details. You can operate the unit with the buttons on the steering wheel. FUNCTIONS OF THE STEERING WHEEL REMOTE CONTROL Button + ·... - Page 84 Button · Settings Button · Back OK button · Confirm Button · Up Button · Down Button · Left · Reject an incoming call Button · Right · Ignore an incoming call (mutes the incoming call signal)
-
Page 85: Mirrorlink
MIRRORLINK MirrorLink integrated Android devices with the vehicle, so that the screen and common Android applications are shown in the display. Note MirrorLink appears only when a MirrorLink-supported Android device is connected to the main unit via USB. A l ong press on the PHONE button activates MirrorLink. -
Page 86: Start Mirrorlink Application
START MIRRORLINK APPLICATION · Tap on the icon to open the HOME menu. · Tap on the icon in order to display the APPS menu. · Tap on the MirrorLink button. · Tap on the desired application e.g. Music, Internet Radio etc. -
Page 87: Carplay
CARPLAY ® CarPlay® enables Apple devices in the vehicle to be integrated on the screen as well as shared applications from Apple devices to be shown on the display. Note CarPlay® only appears when an Apple device is connected to the device's USB connection via a Lightning connection. -
Page 88: Launch Carplay Apps
CarPlay® is interrupted when there are system messages (e.g. traffic information). CarPlay® is reactivated after the system message has finished. In order to exit CarPlay®, select Scania. LAUNCH CARPLAY APPS · Tap on the icon to open the HOME menu. -
Page 89: Fleet Management Services
On the Fleet Management Portal your estimated time of arrival (ETA) will be displayed in the Fleet Position service. Note The Scania Fleet popup is not shown on top of incoming call popups. It will be shown after the call has ended. Scania Fleet START ·... -
Page 90: Appendix
APPENDIX OPTIONAL FEATURES/SETTINGS Optional features and settings might not be supported by your vehicle configuration and the state of your device. Wi-Fi connection · Press the SETUP button and tap on the icon. · Tap on the menu item Wi-Fi. >... -
Page 91: Sound Settings - Subwoofer Level
Note Special characters can be selected by using the lower page selection button (1/4, 2/4 etc.) It also predicts the input and simplifies input by interpreting an “o”, for example, as an “ö” and “a” as “å” or “ä”, depending on the input options selected . -
Page 92: End User License Agreement
END USER LICENSE AGREEMENT FOR THE USE OF THE TRAVEL AND TRAFFIC INFORMATION SERVICES PROVIDED IN EUROPE SCOPE 1.1 This End User License Agreement ("EULA") contains the terms and conditions regarding your use of the Services (as defined below in section 2.6) provided by the Service Provider (as defined below in section 2.7) in the Territory (as defined below in section 2.8) and material limitations to your rights in that regard. - Page 93 3.2 There are no implied licenses granted under this EULA, and all rights save for those expressly granted to you above, shall remain with the Service Provider. INTELLECTUAL PROPERTY AND OTHER RIGHTS Title and all Intellectual Property Rights to or associated with the Services and/or the Data shall always be vested in the Service Provider, its licensors or other suppliers.
- Page 94 GENERAL TERMS 7.1 This EULA constitutes the entire agreement and understanding by and between you and the Service Provider. This EULA supersedes any prior and contemporaneous proposals, purchase orders, advertisements, and all other communications in relation to the subject matter of this EULA, whether oral or written.
-
Page 95: Certification Information
CERTIFICATION INFORMATION EC-Declaration of Conformity Harman Becker Automotive Systems GmbH hereby declares that this unit, AUS4 , is in compliance with the essential requirements and other relevant provisions of Directive ECE type approval The AUS4 unit was reviewed by the directive UN/ECE R10 and registered and type approved by the SNCH authority in Luxembourg. - Page 96 Bluetooth® Qualified Design ID Number MirrorLink certification MirrorLink certification for SCANIA AUS4 MirrorLink Qualified DesignDesign ID Number CLxxxx CarPlay certification CarPlay certification for SCANIA AUS4 CarPlay Qualified Design ID Number CCNPxxxx...
