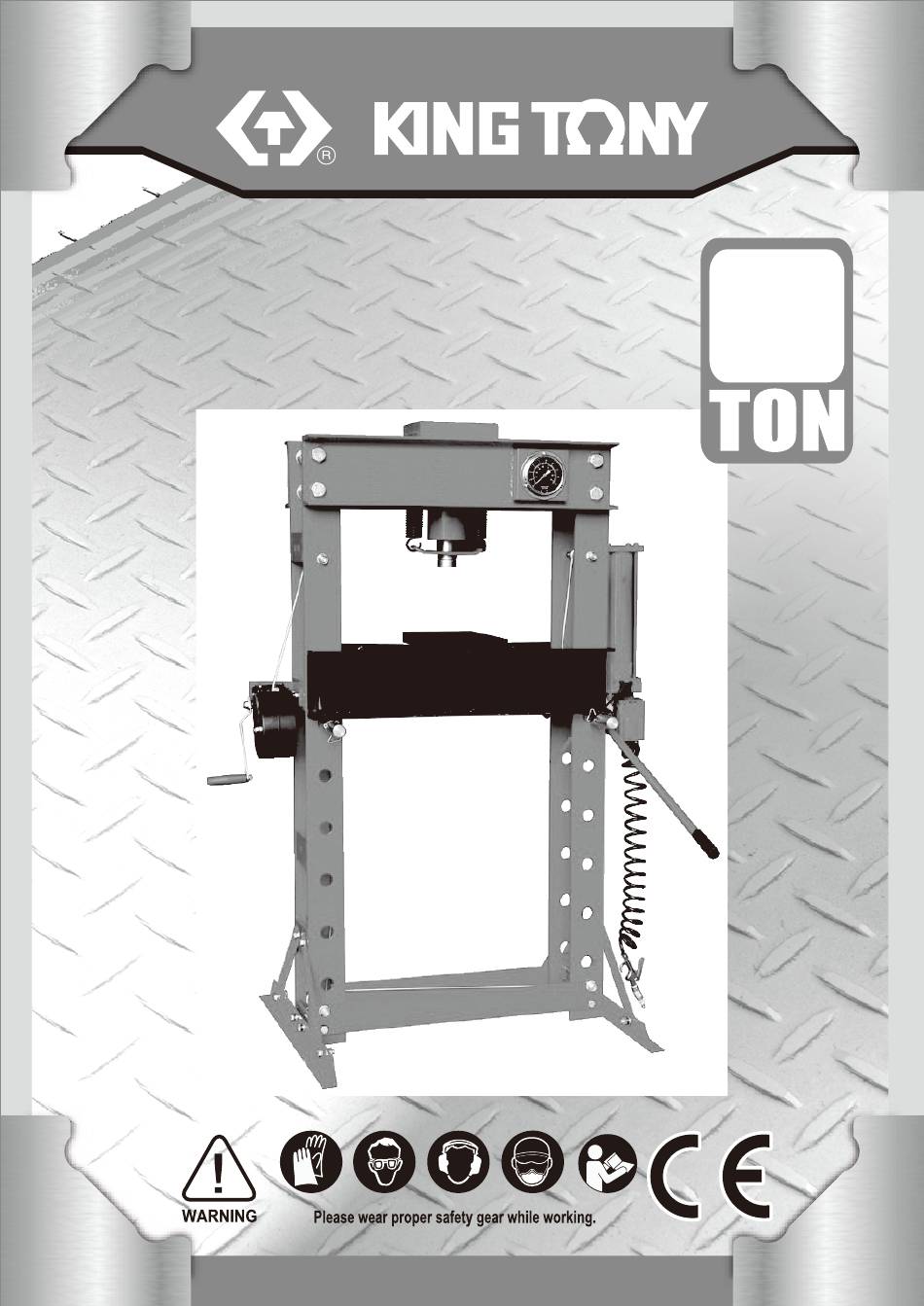

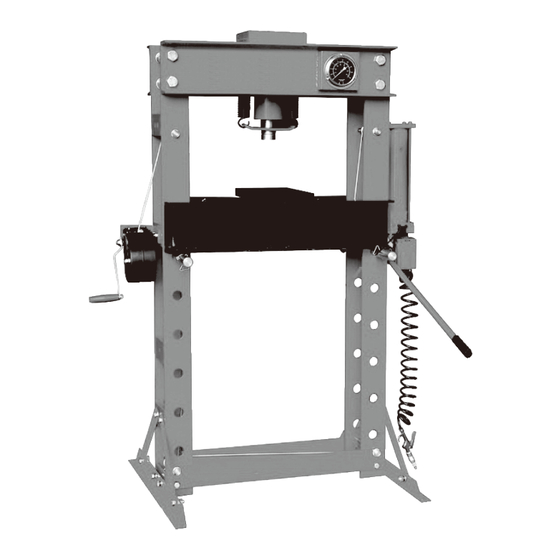

- Page 1 HYDRAULIC SHOP PRESS OPERATION MANUAL 9TY522-50 Enjoy your work...
- Page 2 Capacity (T) Stroke (mm) Work range (mm) KT NO. 9TY522-50 0-890 OPERATING INSTRUCTIONS • Place the heel block on bed frame, then insert workpiece onto the heel block. • Connect the air inlet fitting into the shop air supply hose lock fitting, turn on the valve to let the pump work until serrated saddle nears workpiece, then turn off the air valve.
- Page 3 SAFETY INSTRUCTIONS • If detect anything that may indicate imminent structural failure, stop using the press immediately and inspect it thoroughly. • Do not use press to compress springs or any other item that could disengage and cause a potential hazard.
- Page 4 PARTS LIST Part Description Part Description Part Description Part Description Take-up Nut M24 Posts Base Nut M10 Spring washer M24 Support pin Side support Washer Ø24 Round wire snap ring Ø24mm Air pump Spring washer M10 Washer M10 Gauge(0-85 TON) Pneumatic trigger switch Handle Hex head bolt M10x25mm...
