King Tony 9TY516-20 Operation Manual

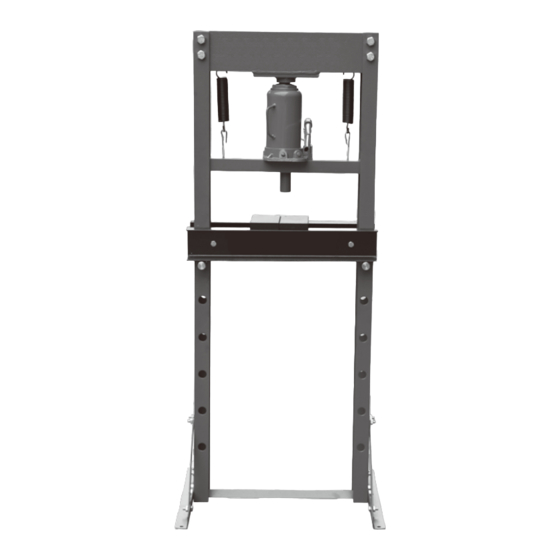

HYDRAULIC SHOP PRESS
OPERATION MANUAL
9TY516-20
NO.
Enjoy your work
• Before first use , purge away air from the hydraulic system: open the release valve by
turning it counterclockwise. Pump several full strokes to eliminate any air in the system.
• Check all parts and conditions, if there is any broken part , please stop using it
KT NO.
20
9TY516-20

OPERATING INSTRUCTIONS

• Place the heel block on bed frame, then insert workpiece onto the heel block.
• Connect the air inlet fitting into the shop air supply hose lock fitting, turn on the valve to let the pump
work until serrated saddle nears workpiece, then turn off the air valve. When air source is
unavailable, pump the handle until serrated saddle nears workpiece.
• Align workpiece and ram to ensure center-loading.
• Turn on air valve (or pump the handle) to apply load onto workpiece.
• When work is done, turn off the air valve (or stop pumping handle), slowly and carefully remove load
from workpiece by turning the release valve counterclockwise in small increments.
• Once ram has fully retracted, remove workpiece from bed frame
• Disconnect the air inlet fitting from the air source.

MAINTENANCE

• Clean the outside of the press with dry, clean and soft cloth and periodically lubricate the joints and
all moving parts with a light oil as needed.
• When not in use, store the press in a dry location with ram and piston fully retracted.
• When press efficiency drops, purge always air from hydraulic system as described before.
• Check the hydraulic oil; remove the oil filler nut on the top of the reservoir, if the oil is not adequate,
fill with high quality hydraulic jack oil as necessary, then replace the oil filler nut, purge away air
from the hydraulic system.
Capacity (T) Stroke (mm) Work range (mm)
20 150 0-710
