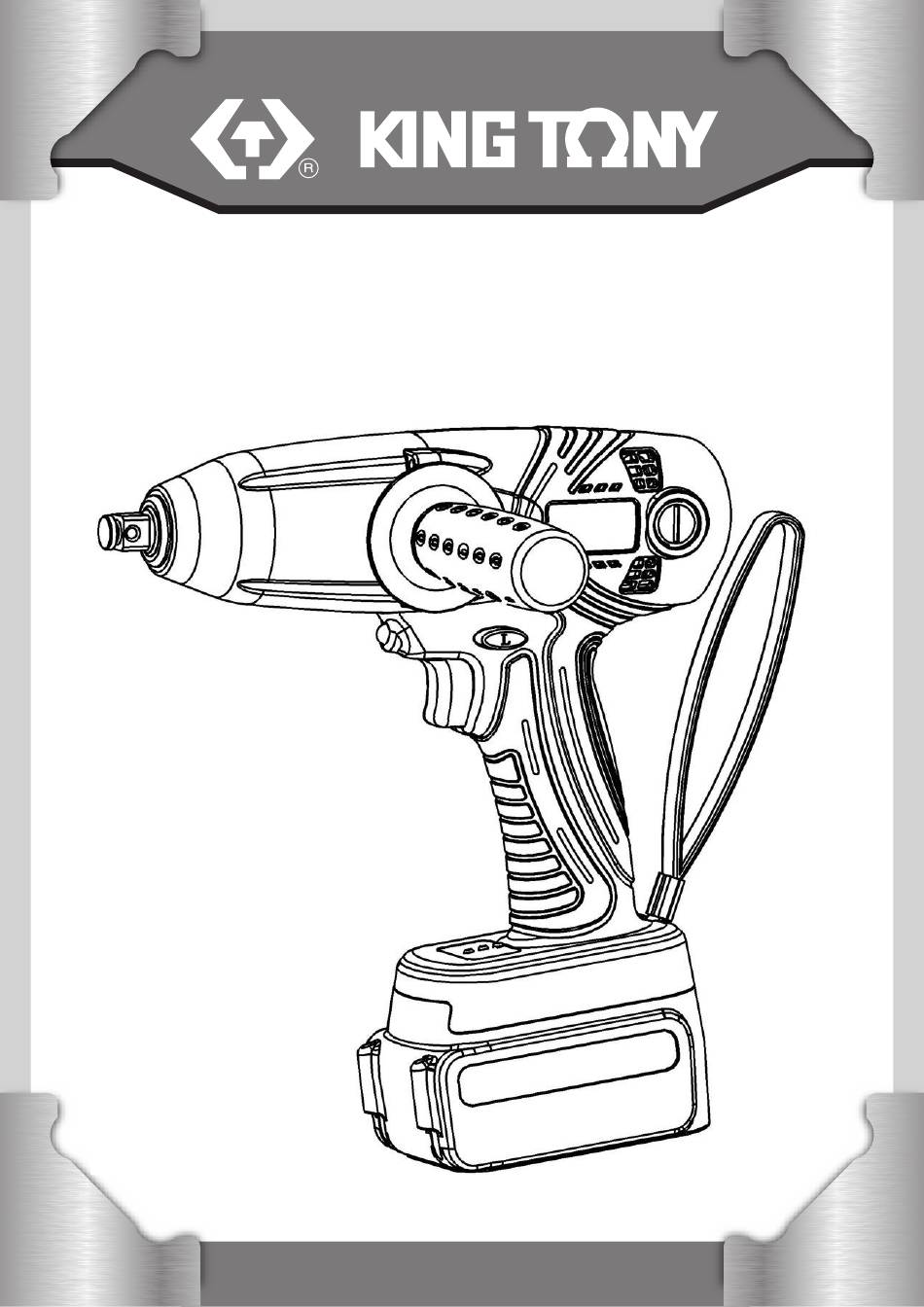

- Page 1 44704MP BL1 8 DS SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL AND INSTRUCTION MANUAL BRUSHLESS IMPACT DRIVER CORDLESS IMPACT WRENCH SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL 44704 44614MP Cordless Impact Wrench Brushless Drill Driver Enjoy your work...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS WARNING: Read all safety warnings and all instructions. 1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and, matching outlets will reduce risk of electric shock. - Page 3 CHARGER INDICATOR & BATTERY INSTALLATION Suitable charging environment: Charging temperature: 0°C ~40°C (32°F~104°F) Discharging temperature: 0°C ~40°C (32°F~104°F) Storage temperature: -20°C ~60°C (-4°F~140°F) Storage humidity: 70%RH The indicators of the charger Power On The charger is power on The battery pack is overheated.
-
Page 4: Specification
EXPLANATION OF GENERAL VIEW Handle Carbon brush cap Front Cover Shaft LED light Terminal Trigger Strap Forward/Reverse lever Grip Battery power indication Battery Pack Bottom SPECIFICATION 18V Cordless Impact Wrench Charger Model 44704MP Input Voltage AC 100-240V 50/60 Hz Voltage DC 18V Output Voltage DC 21V 3.0A... - Page 5 Operating Procedure Installing or removing socket Installing Make sure it will not come off if the socket is lightly pulled. Remove Trigger action and Lighting up the LED light 1：When the switch is depressed, the tool rotates. When the switch is released, the tool stops. 2：The rotational speed can be controlled by varying the amount that the switch is pressed.
-
Page 6: Eu Declaration Of Conformity
No11, 150 Alley, 516 Lane, 2 Sec., Hsi Nan Rd., Wu-jih shiang, Taichung Hsien, Taiwan, R.O.C. Tel:886-4-2335-3567 Fax:886-4-2335-3642 http://www.kingtony.com EU DECLARATION OF CONFORMITY FOR NON-ANNEX IV MACHINERY IN ACCORDANCE WITH MACHINERY SAFETY DIRECTIVES 2004/108/EC WE, KINGTONY TOOLS CO., LTD. HEREBY CERTIFY THAT THE MACHINERY DESCRIBED BELOW CONFORMS WITH EMC DIRECTIVES 2004/108/EC ON THE APPROXIMATION OF THE LAWS OF THE MEMBER STATES RELATING TO THE SAFETY OF MACHINERY, PRODUCT NAME : RECHARGEABLE CORDLESS IMPACT WRENCH... - Page 7 1/2" DR. CORDLESS IMPACT WRENCH ITEM NO. 44704MPA 44704MPB 44704MPD 44704MPA01 44704MPB01 44704MPD01 INDEX REQ'D INDEX REQ'D KT No. DESCRIPTION KT No. DESCRIPTION 038431-A01 Handle grip 038431-A29 Motor 038431-A02 Screw plugger 038431-A30 038431-A03 Torx screw 038431-A31 Heat shrink tube 038431-A04 Protection cover 038431-A32 Resistor 038431-A05 Front cover...
- Page 8 customer service e‐mail : service@kingtony.com ...
