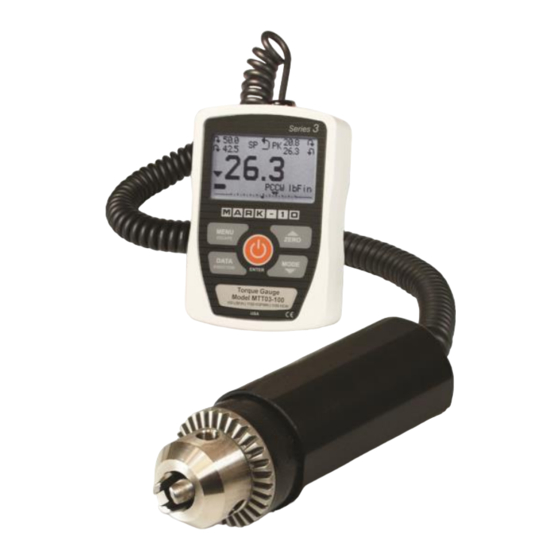

- Page 1 TT03 Series DIGITAL TORQUE GAUGES User’s Guide...
-
Page 2: Table Of Contents
User’s Guide Series TT03 Digital Torque Gauges Thank you… Thank you for purchasing a Mark-10 Series TT03 digital torque gauge, designed for handheld or test stand use. With proper usage, we are confident that you will get many years of great service with this product. -
Page 3: Overview
® USB driver, MESUR Lite software, MESUR Download at: www.mark-10.com/resources 1.2 Safety / Proper Usage Caution! Note the torque gauge’s capacity before use and ensure that the capacity is not exceeded. Producing a torque greater than 150% of the gauge’s capacity can damage the internal sensor. An overload can occur whether the gauge is powered on or off. -
Page 4: Power
User’s Guide Series TT03 Digital Torque Gauges 2 POWER The TT03 is powered either by an 8.4V NiMH rechargeable battery or by an AC adapter. Since these batteries are subject to self discharge, it may be necessary to recharge the unit after a prolonged period of storage. -
Page 5: Setup
The torque sensor portion of the gauge (shown in Figure 3.1) can be mounted directly to a Mark-10 torque test stand or tabletop mounting kit without the need for any additional adapters. Flat surfaces are provided to prevent rotation within a fixture. -
Page 6: Home Screen And Controls
User’s Guide Series TT03 Digital Torque Gauges 4 HOME SCREEN AND CONTROLS 4.1 Home Screen Name Description – indicates clockwise direction Measurement direction – indicates counter-clockwise direction indicator These indicators are used throughout the display and menu. Peaks The maximum measured clockwise and counter-clockwise readings. These readings are reset by pressing ZERO or by powering the gauge off and on. - Page 7 User’s Guide Series TT03 Digital Torque Gauges High / low limit Correspond to the programmed set points. Indicator definitions are as follows: indicators – the displayed value is greater than the upper load limit – the displayed value is between the load limits –...
-
Page 8: Operating Modes
User’s Guide Series TT03 Digital Torque Gauges 5 OPERATING MODES Caution! In any operating mode, if the capacity of the instrument has been exceeded by more than 110%, the display will show “OVER” to indicate an overload. A continuous audible tone will be sounded (if beeps are enabled) until the MENU key has been pressed or the load has been reduced to a safe level. -
Page 9: Set Point Indicators
User’s Guide Series TT03 Digital Torque Gauges DIGITAL FILTERS (1 = Fastest) Current Reading Displayed Reading 1024 Two filters are available: Current Reading – Applies to the peak capture rate of the instrument. Displayed Reading – Applies to the primary reading on the display. Available settings: 1,2,4,8,16,32,64,128,256,512,1024. -
Page 10: Communications And Outputs
User’s Guide Series TT03 Digital Torque Gauges 9 COMMUNICATIONS AND OUTPUTS 9.1 Communication Settings To set up communication settings, select USB Settings from the menu. The screen appears as follows: USB SETTINGS + Baud Rate + Data Format Communication settings are permanently set to the following: Data Bits: Stop Bits: Parity:... -
Page 11: Calibration
User’s Guide Series TT03 Digital Torque Gauges (no quotes). The command must be terminated by a CR (Carriage Return) character, 0x0D, or a CR-LF (Carriage Return – Line Feed) pair, where the Line Feed, 0x0A, is ignored. 9.3 Command Responses In response to the reading request command ‘?’... - Page 12 User’s Guide Series TT03 Digital Torque Gauges 10.2 Calibration Procedure 1. Select Calibration from the menu. The display appears as follows: CALIBRATION Enter # cal points (1 to 10) Clockwise: Counter-clockwise: The sensor can be calibrated at up to 10 points in each direction. Enter the number of calibration points for each direction.
- Page 13 User’s Guide Series TT03 Digital Torque Gauges CALIBRATION CALIBRATION OFFSET OFFSET Sensor passed Sensor failed Analog passed Analog failed If failed: 5. The following screen appears after the offsets have been calculated: CALIBRATION CLOCKWISE Attach necessary weight fixtures, then press ENTER. Keep the sensor in a vertical position, as explained in the previous sub-section.
- Page 14 User’s Guide Series TT03 Digital Torque Gauges Remove the torque applied in Step 7, leave the fixtures in place, then press ZERO. 9. The display appears as follows: CALIBRATION CLOCKWISE Apply load 1 OF 5 Enter load: 10.00 lbFin Press ENTER. Use the UP and DOWN keys to adjust the torque value as required.
-
Page 15: Other Settings
User’s Guide Series TT03 Digital Torque Gauges CALIBRATION Load not stable. Please try again. Ensure that the load is not swinging, oscillating, or vibrating in any manner. Then try again. CALIBRATION CLOCKWISE Load too low. Please try again. The calibration load does not match the set value. CALIBRATION COUNTER-CLOCKWISE Load too close... - Page 16 User’s Guide Series TT03 Digital Torque Gauges BACKLIGHT Auto Set Minutes Selection Description Backlight to be off upon powering on the gauge. Backlight to be on upon powering on the gauge. Auto Backlight to be on upon powering gauge, but will shut off after a period of inactivity (as defined in the Automatic Shutoff sub-section).
- Page 17 11.7 Information / Welcome Screen The following screen is displayed at power up and can be accessed at any time by selecting Information from the menu: Digital Torque Gauge Series TT03 Model No: MTT03-50 Serial No: 1234567 Version: 1.0 (c) Mark-10 Corp.
-
Page 18: Specifications
1.8 lb [0.8 kg] Included accessories: Carrying case, AC adapter, battery, USB cable, NIST-traceable certificate of calibration Environmental 40 - 100°F, max. 96% humidity, non-condensating requirements: Warranty: 3 years (see individual statement for further details) Literature & Software: Download at: www.mark-10.com/resources... - Page 19 User’s Guide Series TT03 Digital Torque Gauges 12.2 Factory Settings Parameter Setting Set points Upper Disabled (defaults to 80% of full scale, clockwise, when enabled) Lower Disabled (defaults to 40% of full scale, clockwise, when enabled) Filters Current Displayed Backlight Auto Minutes USB Output...
- Page 20 User’s Guide Series TT03 Digital Torque Gauges Mark-10 Corporation has been an innovator in the force and torque measurement fields since 1979. We strive to achieve 100% customer satisfaction through excellence in product design, manufacturing and customer support. In addition to our standard line of products we can provide modifications and custom designs for OEM applications.
