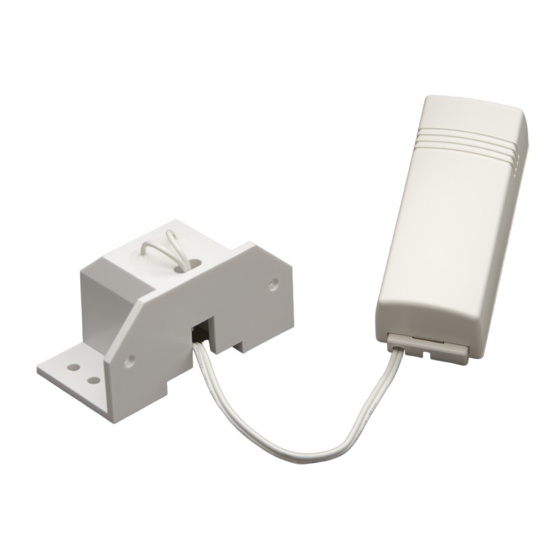

RE619
Flood/Temp Range, CryptiX™-Compatible
Home Disaster™ Sensor
Features
Tri-Mode Environmental Sensing:
•
Flood/Moisture Sensor
o
Freeze – for Furnace Failure
o
Overheat – for Furnace runaway or Air Conditioning failure.
o
Cover tamper.
•
Strong, reliable RF signal.
•
8-10 year battery life on CR123A battery.
•
Low Battery indication.
•
3.3x1.4x1.1 inches.
•
Key Instructions
Battery "+" faces towards spring.
•
Flood
•
Alarm: when liquid rises 0.040 inches above sensor bottom.
Tamper: when cover is opened.
Supervisory: every hour.
Freeze
•
Alarm: when room temperature drops below 40F.
Tamper: when cover is opened.
Supervisory: every hour.
Overheat
•
Alarm: when room temperature rises above 100F.
Tamper: when cover is opened.
Supervisory: every hour.
Enrollment
Place panel in enrollment mode.
•
Tamper the device.
•
By default the Flood will enroll first – to add just the Freeze or just the
•
overheat, or use all three, go to resolutionproducts.com/helixsetup
RE619_Cryptix_Flood_Temp_Instructions Page 1 of 3
24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
Specifications
Internal & Close-up Pictures
27-Jan-15
Flood sensing:
Titanium contacts
100K-Ohm nominal (DO NOT use an EOL resistor)
Transmitter handles 1 or 2 flood elements, no more.
0.04 inch floor spacing to eliminate floor
condensation falses.
Checks for moisture every 5 seconds: needs two
positive moisture checks to send Flood alarm.
(test mode: every second when cover is off)
Freeze Alarm:
45F +/- 2F
Restores when temp increases 4F from alarm
Overheat Alarm Temp:
100F +/- 2F
Restores when temp decreases 4F from alarm
Mounting hardware:
#6 or #8 screws
Dual Mode mounting:
Screwed to floor
Screwed to wall
Terminal wire capacity:
16 Gauge
Replacement Battery:
CR123A 1550 mAH
Temperature Range:
0F to 120F
Housing dimensions:
3.3x1.4x1.1 inches
Specifications subject to change without notice.
Temp Element
RE619_Cryptix_Flood_Temp_Instructions Page 2 of 3
24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
Strain relief for
floor mounting
27-Jan-15
