Summary of Contents for GRAND VIDEOKE Symphony SE Pro Plus

  • Page 3 Ver.1...
  • Page 4: Table Of Contents

    FCC DECLARATION OF CONFORMITY Packing Guide Quick Guide 6-10 - Basic Functions, Secondary Functions, Channel Settings Introduction How to use the keys How to take care of your GRAND VIDEOKE Package Contents Product Overview 15-19 - Main player - Remote control - Microphone...
  • Page 5 Trade Name : TJ media Model : TKR-372MP PRO PLUS Address : 23, Hwagok-ro 64-gil, Gangseo-gu, Seoul, Korea Telephone : +82-2-3663-4700 Notice for customers in the U.S.A. Use of TJ media wireless devices is regulated by the Federal Communications Commision as described in Part 74 subpart H of FCC regulations and users authorized thereby are required to obtain an appropriate license.
  • Page 6: Packing Guide

    PACKING GUIDE Top View 1. Main Unit(Player) 2. Wireless Microphone x 2 3. Remote Control 4. Song list & Manual & Quick Guide 5. Auto-Volt Power Adaptor 6. Audio/Video Cable(RCA cable) 7. HD Output Cable 8. USB Wi-Fi Adapter 9. 4 x AA Batteries(Wireless Microphone) 10.
  • Page 7 BASIC FUNCTIONS VOLUM SONG SELECTION & PLAYBACK METHOD 1. By entering song number directly. 1. Volum - Key in the song number using the alphanumeric keypad, then press 2. Type 3. Adjus METHOD 2. By searching the song. KEY, T (1) To Open the Song List : Press (2) Input the Title or Artist by typing on the alphanumeric 1.
  • Page 8 BASIC FUNCTIONS VOLUME(MUSIC, MIC, ECHO) 1. Volume : Press eypad, 2. Type selection(MUSIC, MIC, ECHO) : 3. Adjustment : KEY, TEMPO, MELODY, BGV, VOCAL meric 1. Adjustment : Press 2. Type selection(KEY, TEMPO, MELODY, BGV, VOCAL) : * VOCAL : Multiplex Only 3.
  • Page 9 SECONDARY FUNCTIONS RECORDING You can record a song in 5 ways : METHOD 1. , Select “REC”, Select“Recording Song”, Select a song, press METHOD 2. , Select“Recording Song”, Select a song, press METHOD 3. Open the Song List, Select a song, press METHOD 4.
  • Page 10 CHANNEL SETTINGS TKR-372MP PRO PLUS has eight(8) avaitable channels. Please take note that microphones and main player should be on the same channel. In case of channel interference (either one or two of the microphones cannot be detected by the main player), please follow the step by step instructions below for re-channeling.
  • Page 11 CHANNEL SETTINGS [STEP 2] Set the channel of the two microphones using the microphone's keypad. For the first(1st) microphone: 1) Turn on the microphone by pressing the button. POWER POWER 2) Press button in order. → → → The microphone LED will be turned on and off twice. 3) Press the same channel number that you set in the main player.
  • Page 12 Thank you for purchasing the GRANDVIDEOKE SYMPHONY 2 PRO PLUS (TKR-372MP PRO PLUS). The GRANDVIDEOKE SYMPHONY 2 PRO PLUS is the rst portable videoke system equipped with the highly-advanced Perfect Pitch scoring system. Experience professional-grade scoring in real-time while singing, rating your key/rhythm, vibrato, upband, and downband.
  • Page 13 You can key-in letters into the screen when searching for songs. POWER POWER in the GRAND VIDEOKE Microphone is used to power on the Microphone, while the POWER button on the GRAND VIDEOKE is used to turn the GRANDVIDEOKE on and o . Button/Key Play Standby...
  • Page 14 GRAND VIDEOKE Do not attempt to open the GRANDVIDEOKE.This will void the warranty. Use only the power adapter included with your GRANDVIDEOKE. Using other power adapters could cause serious damage to the product and there by void its warranty. Do not cover the product or any of its accessories while the GRANDVIDEOKE is turned on.
  • Page 15: Quick Guide

    GRANDVIDEOKE Main Unit(Player) & Wireless Microphone x 2 Carry Bag Quick Guide Song List & Manual Mic Cover Remote Control 2xAAA Batteries 4xAA Batteries USBWi-Fi Adapter HD Output Cable RCA Cable Auto-Volt Power Adapter www.grandvideoke.com...
  • Page 16: Product Overview

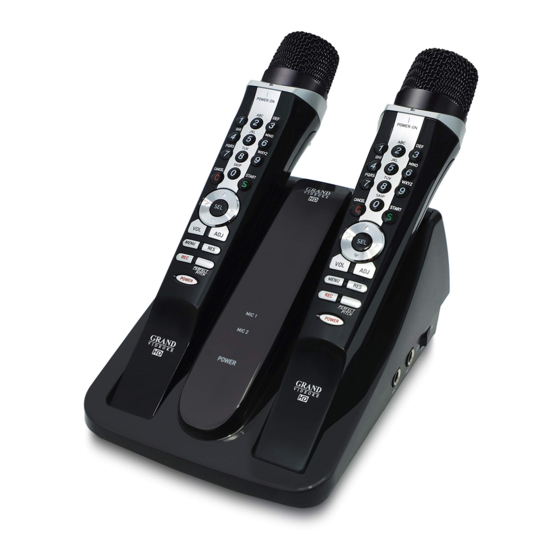

    Product Overview (Main Unit & Microphone) HD output HD output USB port(for Wi-Fi adapter) USB port(for Wi-Fi adapter) Wi-Fi PQRS PQRS WXYZ WXYZ PERFECT PITCH www.grandvideoke.com...
  • Page 17 Product Overview (Remote Control) www.grandvideoke.com...
  • Page 18 Product Overview (Remote Control) FUNCTION SUBSTANCES MENU Display menu window. Open Wi-Fi network set-up menu. Display the list of RealSound songs. CHORUS Display the list of Chorus songs. MULTIPLEX Display the list of Multiplex songs. FAVORITE Display the list of Favorite songs. Display the list of MTV songs.
  • Page 19 Product Overview (Remote Control) check if the polarities are correct (+/-). Do not mix old and new batteries. the product the remote control. When to change the batteries(2 x AAA Batteries) must be changed. 1. Push and slide the battery cover tab to open the battery compartment.
  • Page 20: Microphone

    Product Overview (Microphone) microphone, check if the polarities are correct (+/-). the product the microphone. microphone must be changed. 1. Please push down and pull up to uncover. www.grandvideoke.com...
  • Page 21: Main Unit To Hdtv Connection

    Main Unit to HDTV Connection Please connect the main unit to the HDTV using an HD Output cable as shown in the image below. TKR-372MP PRO PLUS If a speaker system is available: Please connect the audio output of the main unit to the audio input of the speaker system as shown in the image below.
  • Page 22: Main Unit To Standard Tv Connection

    Main Unit to Standard TV Connection TKR-372MP PRO PLUS TKR-372MP PRO PLUS www.grandvideoke.com...
  • Page 23: Power On/O

    Power OFF - Grand Videoke Main Unit 1. Turn the GRAND VIDEOKE microphone(s) o rst before turning o the main unit. 2. Turn the Grand Videoke main unit o through the rear panel power switch (as seen on illustration above).
  • Page 24 Title/Artist –This is the current sort mode. To change to another sort mode, press [VOL]. Song numbers – Index number of the song in GRAND VIDEOKE songbook. Type - Indicates the type of the song. 0005/0011 – Current page over the total number of pages for the whole GRANDVIDEOKE HD library.
  • Page 25 GRANDVIDEOKE is turned o . window screen. The GRAND VIDEOKE plays the reserved songs one after the other. you will cancel the reserved song. www.grandvideoke.com...
  • Page 26 GRAND VIDEOKE the song search screen and press on the You can also select songs from the song list. on the screen. Real Sound on the left side of the screen. on the left side of the screen. on the left side of the screen.
  • Page 27 GRAND VIDEOKE be set 4 in levels(None - Low - Middle - High). speed it up. to adjust the key setting. Key can be set from -6 level to +6 level. a song. The Skip function allows the user to skip the current prelude (instrumental, intro, interlude), line, or verse.
  • Page 28 See the instructions entitled“Search Screen”, “Search Function”, and “Song Reservation” on this manual for more information. GRAND VIDEOKE’ s GRAND VIDEOKE To add songs to the favorite list : Select a song on the search screen and press STAR after the artist column list.
  • Page 29: Perfect Pitch

    Both the instruments and the user’ s voice are recorded and can be played back. Recorded songs are stored in the GRAND VIDEOKE's built-in memory. Recorded time is up to 5 minutes per song. If exceeded, it may not be properly recorded.
  • Page 30 The Con guration menu enables you to change some of the settings of the GRAND VIDEOKE like lyrics alignment and di culty level of the scoring. Here is the list of the default values for each con guration option. Default...
  • Page 31 Button E ect When enabled, the GRAND VIDEOKE will output sound whenever a button is pressed. Score check This selects the di culty level of scoring. Lyric Array Lyric Array allows the two lines of the lyrics to be aligned either to the center or to the left and right.
  • Page 32 HD terminal between TV and main player. If there is an external speaker system or ampli er, or if the GRAND VIDEOKE is connected to an SD TV via RCA, check if the red and white RCA cables are correctly to the speaker system, ampli er or TV.
  • Page 33 How do you set the TV system? How to use wired microphone. It is possible to use wired microphone in case that wireless microphone is defective or lost. If you using wireless microphone 1, please use wired microphone through MIC 2 on the main unit.
  • Page 34: Product Speci Cation

    Product Speci cation Microphone Microphone Type Analog Wireless Microphone RF Frequency / RF Type 494MHz~505.2MHz / F3E Unit Type / Impedance Dynamic / 600Ω RF Transmission Range Up to 10m (30-ft) Battery Spec 1.5V(AA) x 2 Audio Frequency 50Hz ~ 15kHz Operating Temperature(L) 0 ~ 40 Weight (g)

This manual is also suitable for:

Tkr-372mp pro plus
