- Page 1 TKR-373MU manual...
- Page 2 Ver.1...
-
Page 3: Table Of Contents
FCC DECLARATION OF CONFORMITY Packing Guide Quick Guide 6-10 - Basic Functions, Secondary Functions, Channel Settings Introduction How to use the keys How to take care of your GRAND VIDEOKE Package Contents Product Overview 15-19 - Main player - Remote control - Microphone... - Page 4 Trade Name : TJ media Model : TKR-373MU Address : 23, Hwagok-ro 64-gil, Gangseo-gu, Seoul, Korea Telephone : +82-2-3663-4700 For customers in the USA FCC Notice Warning: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 5: Packing Guide
PACKING GUIDE Top View 1. Main Unit(Player) 2. Wireless Microphone x 2 3. Remote Control 4. Song List, Manual & Quick Guide 5. Auto-Volt Power Adapter 6. Audio/Video Cable(RCA cable) 7. HD Output Cable 8. 4 x AA Batteries for Wireless Microphones 9. -
Page 6: Basic Functions
BASIC FUNCTIONS SONG SELECTION & PLAYBACK METHOD 1. By entering song number directly. - Key in the song number using the alphanumeric keypad, then press METHOD 2. By searching the song. (1) To Open the Song List : Press (2) Input the Title or Artist by typing on the alphanumeric keypad. - Page 7 BASIC FUNCTIONS VOLUME(MUSIC, MIC, ECHO) 1. Volume : Press 2. Type selection(MUSIC, MIC, ECHO) : 3. Adjustment : KEY, TEMPO, MELODY, BGV, VOCAL 1. Adjustment : Press 2. Type selection(KEY, TEMPO, MELODY, BGV, VOCAL) : * VOCAL : Multiplex Only 3.
- Page 8 SECONDARY FUNCTIONS RECORDING You can record a song in 5 ways : METHOD 1. , Select “REC”, Select“Recording Song”, Select a song, press METHOD 2. , Select“Recording Song”, Select a song, press METHOD 3. Open the Song List, Select a song, press METHOD 4.
-
Page 9: Channel Settings
CHANNEL SETTINGS TKR-373MP has sixteen(16) avaitable channels. (MIC1 Ch 1~Ch 8, MIC2 Ch 1~Ch 8) Please take note that microphones and main player should be on the same channel. In case of channel interference (either one or two of the microphones cannot be detected by the main player), Please follow the step by step instruction below for re-channeling. - Page 10 CHANNEL SETTINGS Step2] Set the channel of the two microphones using the microphone's keypad. For the first(1st) microphone: 1) Turn on the microphone by pressing the button. 2) Separate the battery cover from a microphone. (Refer to “How to change batteries” in the manual) 3) Prepare a remote control and set as shown on the left and follow the below steps from 4) to 7).

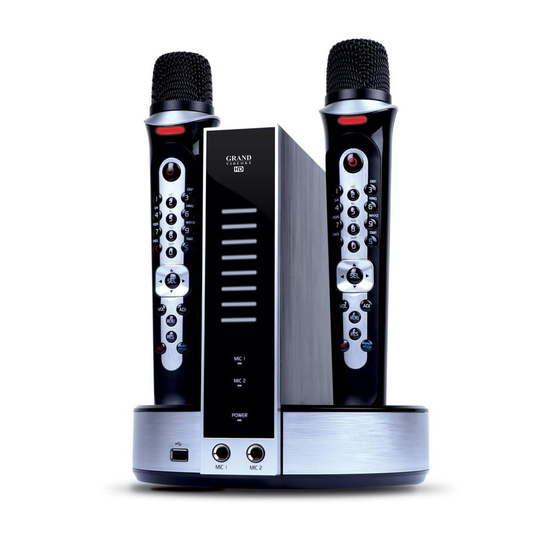

- Page 11 Thank you for purchasing the GRANDVIDEOKE SYMPHONY 3 PRO (TKR-373MP). The GRANDVIDEOKE SYMPHONY 3 PRO is the rst portable videoke system equipped with the highly-advanced Perfect Pitch scoring system. Experience professional-grade scoring in real-time while singing, rating your key/rhythm, vibrato, upband, and downband.
- Page 12 The keypad of the GRAND VIDEOKE is an alphanumeric keypad similar to a cell phone. You can key-in letters into the screen when searching for songs. in the GRANDVIDEOKE Microphone is used to power on the Microphone, while the on the GRAND VIDEOKE is used to turn the GRAND VIDEOKE on and o .
- Page 13 GRAND VIDEOKE Do not attempt to open the GRANDVIDEOKE.This will void the warranty. Use only the power adapter included with your GRANDVIDEOKE. Using other power adapters could cause serious damage to the product and there by void its warranty. Do not cover the product or any of its accessories while the GRANDVIDEOKE is turned on.
-
Page 14: Quick Guide
GRANDVIDEOKE Main Unit(Player) & Main Unit(Player) & Wireless Microphone x 2 Wireless Microphone x 2 TKR-373MU Song List&Manual MIC Cover Remote Control 2xAAA Batteries 4xAA Batteries USB Adapter HD Output Cable RCA Cable Auto-Volt Power Adaptor Carry Bag Quick Guide www.grandvideoke.com... -
Page 15: Product Overview
Product Overview (Main Unit & Microphone) MIC 1 MIC 2 POWER MIC 1 MIC 2 (for wired dynamic microphone) Power adapter input for USB Wi-Fi adapter) POWER DC IN 12V AUDIO/VIDEO HD OUT Audio/ Video output HD output Microphone Power (on/o switch) PQRS WXYZ... -
Page 16: Product Overview
Product Overview (Remote Control) www.grandvideoke.com... -
Page 17: Remote Control
Product Overview (Remote Control) FUNCTION SUBSTANCES MENU Display menu window. Open Wi-Fi network set-up menu. Display the list of RealSound songs. CHORUS Display the list of Chorus songs. MULTIPLEX Display the list of Multiplex songs. FAVORITE Display the list of Favorite songs. Display the list of MTV songs. -
Page 18: Remote Control
Product Overview (Remote Control) check if the polarities are correct (+/-). Do not mix old and new batteries. the product the remote control. When to change the batteries(2 x AAA Batteries) must be changed. 1. Push and slide the battery cover tab to open the battery compartment. -
Page 19: Microphone
Product Overview (Microphone) microphone, check if the polarities are correct (+/-). the product the microphone. microphone must be changed. 1. Push and slide the battery cover tab to open the battery compartment. www.grandvideoke.com... -
Page 20: Main Unit To Hdtv Connection
Main Unit to HDTV Connection Please connect the main unit to the HDTV using an HD Output cable as shown in the image below. If a speaker system is available: Please connect the audio output of the main unit to the audio input of the speaker system as shown in the image below. -
Page 21: Main Unit To Standard Tv Connection
Main Unit to Standard TV Connection www.grandvideoke.com... -
Page 22: Installation Guide
Power OFF - Grand Videoke Main Unit 1. Turn the GRAND VIDEOKE microphone(s) o rst before turning o the main unit. 2. Turn the Grand Videoke main unit o through the rear panel power switch (as seen on illustration above). -
Page 23: Remote Control
Title/Artist –This is the current sort mode. To change to another sort mode, press [VOL]. Song numbers – Index number of the song in GRAND VIDEOKE songbook. Type - Indicates the type of the song. 0005/0011 – Current page over the total number of pages for the whole GRANDVIDEOKE HD library. - Page 24 GRANDVIDEOKE is turned o . window screen. The GRAND VIDEOKE plays the reserved songs one after the other. you will cancel the reserved song. www.grandvideoke.com...
-
Page 25: Microphone
GRAND VIDEOKE the song search screen and press on the You can also select songs from the song list. on the screen. Real Sound on the left side of the screen. on the left side of the screen. on the left side of the screen. - Page 26 GRAND VIDEOKE be set 4 in levels(None - Low - Middle - High). speed it up. to adjust the key setting. Key can be set from -6 level to +6 level. a song. The Skip function allows the user to skip the current prelude (instrumental, intro, interlude), line, or verse.
- Page 27 See the instructions entitled“Search Screen”, “Search Function”, and “Song Reservation” on this manual for more information. GRAND VIDEOKE’ s GRAND VIDEOKE To add songs to the favorite list : Select a song on the search screen and press after the artist column STAR list.
-
Page 28: Perfect Pitch
Both the instruments and the user’ s voice are recorded and can be played back. Recorded songs are stored in the GRAND VIDEOKE's built-in memory. Recorded time is up to 5 minutes per song. If exceeded, it may not be properly recorded. -
Page 29: Microphone
The Con guration menu enables you to change some of the settings of the GRAND VIDEOKE like lyrics alignment and di culty level of the scoring. Here is the list of the default values for each con guration option. Con guration Option... -
Page 30: Remote Control
Button E ect When enabled, the GRAND VIDEOKE will output sound whenever a button is pressed. Score check This selects the di culty level of scoring. Lyric Array Lyric Array allows the two lines of the lyrics to be aligned either to the center or to the left and right. - Page 31 HD terminal between TV and main player. If there is an external speaker system or ampli er, or if the GRAND VIDEOKE is connected to an SD TV via RCA, check if the red and white RCA cables are correctly to the speaker system, ampli er or TV.
- Page 32 How do you set the TV system? How to use wired microphone. It is possible to use wired microphone in case that wireless microphone is defective or lost. If you using wireless microphone 1, please use wired microphone through MIC 2 on the main unit.
-
Page 33: Product Speci Cation
Product Speci cation Microphone Microphone Type Analog Wireless Microphone RF Frequency / RF Type 494MHz~505.2MHz / F3E Unit Type / Impedance Dynamic / 600Ω RF Transmission Range Up to 10m (30-ft) Battery Spec 1.5V(AA) x 2 Audio Frequency 50Hz ~ 15kHz Operating Temperature(L) 0 ~ 40 Weight (g)
