Wireless Receiver Module V1.0
Reference & Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spectra Omnia OMN-RCV3S and is the answer not in the manual?

Questions and answers

Summary of Contents for Paradox Spectra Omnia OMN-RCV3S

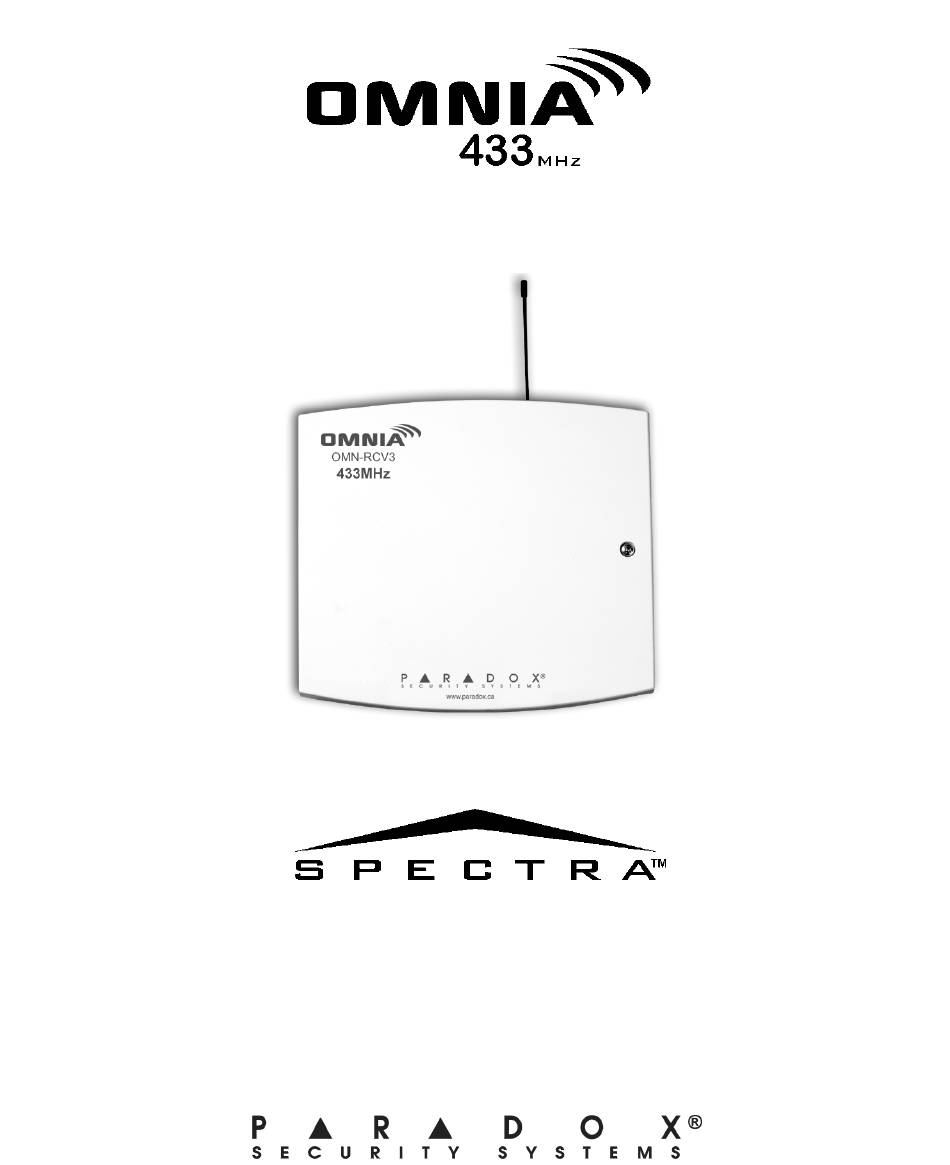

  • Page 1 Wireless Receiver Module V1.0 Reference & Installation Manual...
  • Page 2: Table Of Contents

         INTRODUCTION ..................3 Technical Specifications ...................3 System Features ....................3 INSTALLATION ..................4 Location ......................4 Connections and Mounting ................4 PROGRAMMING ..................6 How to Enter Programming Mode ..............6 Wireless Transmitter Programming ..............6 Viewing the Transmitter Signal Strength ............8 Viewing Unknown Serial Numbers ..............10 System Reset ....................10 SUPERVISION OPTIONS ................10 Check-In Supervision ..................10...
  • Page 3: Introduction

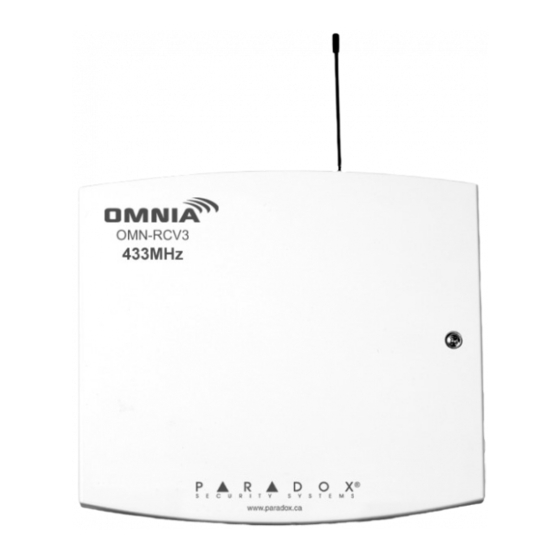

        The Omnia Wireless Receiver Module (OMN-RCV3) allows you to add up to 8 fully supervised Omnia wireless motion detectors and/or door contacts, and up to 8 programmable remote controls to the Spectra system. 1.1 TECHNICAL SPECIFICATIONS • Di-pole antenna •...
  • Page 4: Installation

        The following sections will detail how to mount and connect the Omnia Wireless Receiver Module (OMN-RCV3). 2.1 LOCATION Mount the Omnia Wireless Receiver on a wall allowing at least 5cm (2”) around the module to permit adequate ventilation and heat dissipation. Select a site that is not susceptible to drastic temperature changes.
  • Page 5 Figure 2.1: Connecting the OMN-RCV3 to the control panel Omnia 5...
  • Page 6: Programming

        To successfully install an Omnia wireless system to your Spectra system, ensure that the following steps are completed: 1. Install the Omnia Receiver. Connect the Omnia Receiver to the Spectra control panel and power up. 2. Assign the remote controls if necessary. 3.
  • Page 7 3.2.1 A SSIGNING ETECTORS AND ONTACTS TO THE ECEIVER [601] [608] SECTIONS In Spectra systems, up to 8 wireless transmitters (detectors and door contacts) can be assigned to each Receiver Module. Section [601] to [608] represent expansion inputs 1 to 8 respectively. For example, section [601] is assigned to expansion input 1, section [602] is assigned to expansion input 2, etc.
  • Page 8: Viewing The Transmitter Signal Strength

    The serial number is located on the inside of the transmitter or you can use the Unknown Serial Number Display method (refer to section 3.4 on page 10) to determine its serial number. The transmitters must be activated once having been assigned to the Receiver.
  • Page 9 acceptable. Sometimes moving the transmitter or receiver by a small amount will greatly increase the signal reception. How to view a transmitter’s signal strength. In step 3 in section 3.1 on page 6: 1. Enter the desired [ ] (631 to 638). SECTION NUMBER 2.
  • Page 10: Viewing Unknown Serial Numbers

    3.4 VIEWING UNKNOWN SERIAL NUMBERS [630] ECTION This feature will display the serial number of any Omnia motion detector or door contact on any Spectra keypad. How to view unknown transmitter serial numbers. In step 3 in section 3.1 on page 6: 1.
  • Page 11: Check-In Supervision Timer Settings

    a report code to the monitoring station. For details refer to the appropriate Spectra Reference & Installation Manual . How to enable check-in supervision. In step 3 in section 3.1 on page 6: 1. Enter section [610] . 2. Enable or disable option [1] . Option [1] OFF = Check-In Supervision disabled (default) Option [1] ON = Check-In Supervision enabled 4.2 CHECK-IN SUPERVISION TIMER SETTINGS...
  • Page 12: Low Battery Supervision

    4.3 LOW BATTERY SUPERVISION When the battery voltage of an Omnia wireless transmitter (motion detector or door contact) drops to less than 3.1V, the Spectra control panel will send a low battery report code to the monitoring station, and a trouble will appear in the keypad’s trouble display.
  • Page 13: Remote Control Programming

           The Omnia Wireless Receiver Module accepts up to eight fully programmable remote controls. Programming the remote controls is accomplished in three steps: 1. The remote controls must be assigned to the Wireless Receiver Module. 2. The remote controls from the Wireless Receiver Module must be assigned to User Access Codes.
  • Page 14: Assigning The Remote Controls To User Access Codes

    For installations using a Spectra control panel version 2.0 or higher: How to assign a remote control to the receiver module (V2.0 and higher). In step 3 in section 3.1 on page 6: 1. Enter desired [ ] (731 to 738). SECTION NUMBER 2.
  • Page 15 Sections [711] to [718] represent the remote controls assigned to sections [721] / [731] to [728] / [738] (refer to section 5.1 on page 13). For example, the buttons for the remote control assigned in section [731] will be programmed in section [711] . How to program the remote control buttons: In step 3 in section 3.1 on page 6: 1.
  • Page 16 Table 5.2: Button Options [0] = Not used [7] = Regular Arm and Disarm [1] = Regular Arm [8] = Generate a Panic 1 Alarm (Police) [2] = Stay Arm [9] = Generate a Panic 2 Alarm (Medical) [3] = Instant Arm [A] = Generate a Panic 3 Alarm (Fire) [4] = Force Arm [B] = Activates any PGMs that have Event Group #07 as...
  • Page 17: Deleting Remote Controls

    Figure 5.4: Remote Control Button Identification The User Code assigned to the remote control (refer to section 5.2 on page 14) must have the same User Options enabled. For example, if you enable the Force Arming button option, you must enable the appropriate Force Arming user option.
  • Page 18: Replacing The Remote Control Batteries

    For installations using a Spectra control panel version 2.0 or higher: How to delete a remote control (Spectra version 2.0 or higher): In step 3 in section 3.1 on page 6: 1. Enter the desired [ ] (731 to 738). SECTION NUMBER 2.
  • Page 19: List Of Sections

           Section Description [601] to [608] - Assigning detectors and door contacts to the receiver - Deleting the detectors and door contacts [610] Option [1]: Check-in supervision Option [2]: Check-in supervision base time Option [5]: Check-in supervision time value [615] On-board module tamper supervision zone assignment [630]...
  • Page 20 WARRANTY The Seller warrants its products to be free from defects in materials and workmanship under normal use for a period of one year. Except as specifically stated herein, all express or implied warranties whatsoever, statutory or otherwise, including without limitation, any implied warranty of merchantability and fitness for a particular purpose, are expressly excluded.
