Summary of Contents for Ubiquiti PowerBeam PBE-M5-300-IS

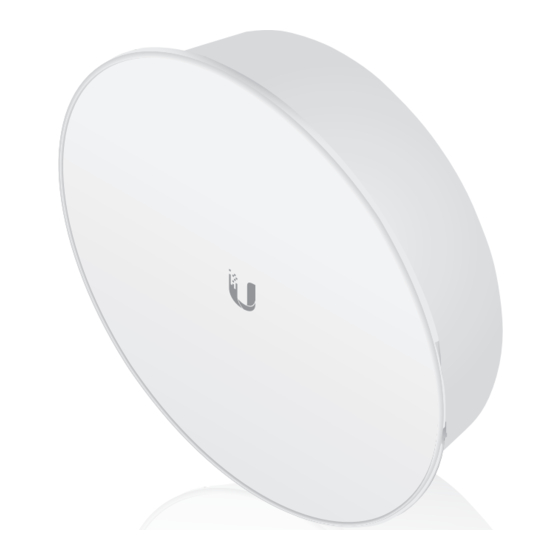

- Page 1 5 GHz airMAX Bridge with ® 300 mm RF Isolated Reflector Model: PBE-M5-300-ISO Available from A1 Security Cameras w.a1securitycameras.com email: sales@a1securitycamera...
- Page 2 Power Cord Quick Start Guide with Mounting Bracket TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™ designed for outdoor installations. It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements.
-
Page 3: Hardware Overview
Hardware Overview Bottom View Radome Antenna Feed Ethernet Port Reset Button Release Button Reflector Mounting Bracket Alignment Pins Rear Housing Release Button Slot Cable Door Available from A1 Security Cameras w.a1securitycameras.com email: sales@a1securitycamera... - Page 4 Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the PowerBeam is already powered on. Alternatively, the PowerBeam may be reset remotely via a Reset button located on the bottom of the PoE Adapter.
-
Page 5: Application Examples
AC ground of the PoE. We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial-grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable Available from A1 Security Cameras... -
Page 6: Installation
Installation 1. Align and insert the tabs of the Mounting Bracket into the slots of the Reflector. Rotate the Mounting Bracket counter-clockwise until the alignment holes in the dish and bracket align with each other. 2. Line up the Alignment Pins of the Rear Housing with the alignment holes of the Mounting Bracket. - Page 7 3. View the Reflector from the front. Ensure that the four hooks (indicated below) of the Rear Housing are fully engaged with the inner wall of the Reflector and locked into place. Important: Before proceeding, lightly pull the Rear Housing to confirm that it is locked into place. 4.
- Page 8 5. Attach the Antenna Feed. a. Insert the Antenna Feed into the Rear Housing, and push until it locks into place with a click. b. Lightly pull the Antenna Feed to ensure that it is locked into place and the Release Button is fully engaged. Release Button Bottom View...
- Page 9 7. Attach the Pole Clamp to the Adjustment Bracket. a. Hold the Adjustment Bracket with the clamps facing you and the Elevation Indicator Slot on the left. b. Insert the Carriage Bolts through the holes of the Adjustment Bracket. c. Slide the hole of the Pole Clamp over one bolt of the Adjustment Bracket.
- Page 10 9. Position the Reflector assembly on the pole and secure it. a. Place the Adjustment Bracket against the pole. b. Slide the slot of the Pole Clamp over the Carriage Bolt. c. Tighten the Flange Nuts of the bolts to 25 N-m to secure the antenna to the pole.
- Page 11 10. Align the Notch on the Reflector with the Arrow at the top of the Radome. Guide the Radome’s side and top tabs over the Reflector rim and slide the Radome down onto the Reflector. Arrow Radome Top Tab Notch Radome Side Tab Radome...
- Page 12 11. Snap the bottom three tabs of the Radome over the Reflector rim. Bottom Tabs 12. Adjust the elevation angle. a. Loosen the four Hex Bolts on both sides of the antenna. b. Pivot the antenna until the Hash Mark in the Elevation Indicator Slot points to the desired elevation angle.
- Page 13 13. Connect the Ethernet cable from the PowerBeam’s Ethernet port to the POE port of the PoE adapter. 14. Connect an Ethernet cable from your LAN to the adapter’s LAN port. 15. Connect the Power Cord to the adapter’s power port. Connect the other end of the Power Cord to a power outlet.
- Page 14 3. Launch your web browser and type https://192.168.1.20 in the address field. Press enter (PC) or return (Mac). 4. The login screen will appear. Enter ubnt in the Username and Password fields. Select your Country and Language. You must agree to the Terms of Use to use the product. Click Login.
- Page 15 5. Select the PowerBeam Dish Reflector size: a. Click the Wireless tab. b. F rom the Antenna drop-down list, select the appropriate option. c. Click Change to save. d. Click OK to confirm. Customize additional settings as needed to complete the configuration.
-
Page 16: Installer Compliance Responsibility
Since Ubiquiti Networks equipment can be paired with a variety of antennas and cables, the Antenna and Output Power fields are provided to the professional installer to assist in meeting regulatory requirements. -
Page 17: Specifications
Specifications PBE-M5-300-ISO Dimensions with Radome 364 x 364 x 276 mm (14.3 x 14.3 x 10.9") Weight (Mount Included) 2.55 kg (5.62 lb) Operating Frequency Worldwide: 5150 - 5875 MHz USA: 5725 - 5850 MHz Gain 22 dBi Networking Interface (1) 10/100 Ethernet Port Enclosure Outdoor UV Stabilized Plastic... -
Page 18: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. -
Page 19: Limited Warranty
(VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. -
Page 20: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. - Page 21 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
-
Page 22: Industry Canada
This radio transmitter FCC ID: SWX-NBM5HP has been approved by FCC to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. - Page 23 Cet émetteur radio (IC: 6545A-NBM5HP) a été approuvée par Industrie Canada pour l’exploitation avec l’antenne types énumérés ci-dessous avec le gain maximal admissible et requis l’impédance de l’antenne pour chaque type d’antenne indiqué. Types d’antenne non inclus dans cette liste, ayant un gain supérieur au gain maximal indiqué...
- Page 24 RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 25 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 26: Declaration Of Conformity
[German] Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Ελληνική Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις [Greek] βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1995/5/ΕΚ. -
Page 27: Online Resources
[Swedish] egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. Español Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo UBIQUITI NETWORKS, cumple con los requisitos [Spanish] esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. - Page 28 Ubiquiti U logo, the Ubiquiti beam logo, airMAX, airOS, InnerFeed, PowerBeam, and TOUGHCable are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
