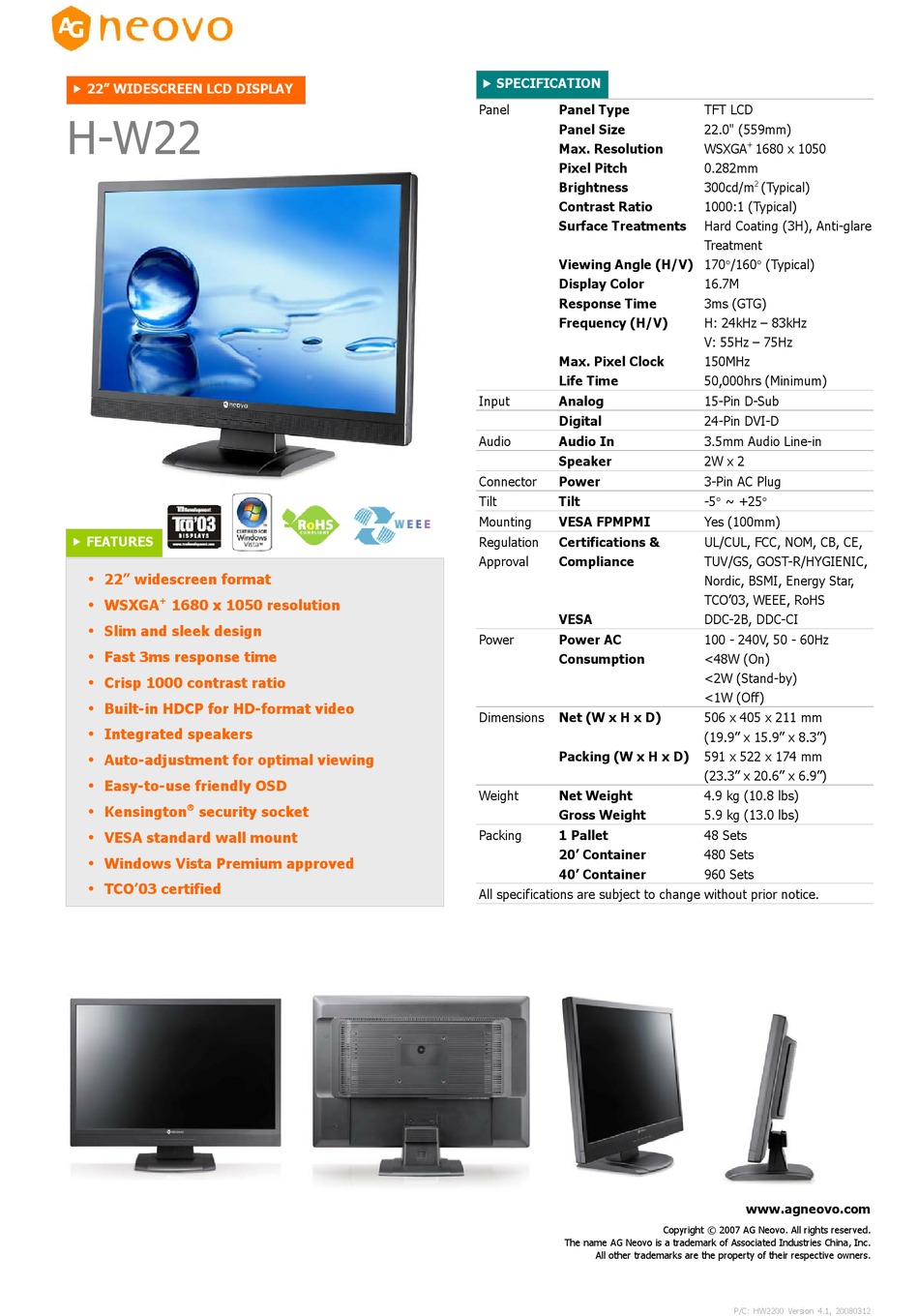

AG Neovo Neovo H-W22 Specification Sheet

22" WIDESCREEN LCD DISPLAY
H-W22
FEATURES
22" widescreen format
+
WSXGA 1680 x 1050 resolution
Slim and sleek design
Fast 3ms response time
Crisp 1000 contrast ratio
Built-in HDCP for HD-format video
Integrated speakers
Auto-adjustment for optimal viewing
Easy-to-use friendly OSD

Kensington security socket
VESA standard wall mount
Windows Vista Premium approved
TCO'03 certified
SPECIFICATION
Panel Panel Type
Panel Size
Max. Resolution
Pixel Pitch
Brightness
Contrast Ratio
Surface Treatments
Viewing Angle (H/V) 170°/160° (Typical)
Display Color
Response Time
Frequency (H/V)
Max. Pixel Clock
Life Time
Input Analog
Digital
Audio Audio In
Speaker
Connector Power
Tilt Tilt
Mounting VESA FPMPMI
Regulation Certifications &
Approval Compliance
VESA
Power Power AC
Consumption
Dimensions Net (W x H x D)
Packing (W x H x D)
Weight Net Weight
Gross Weight
Packing 1 Pallet
20' Container
40' Container
All specifications are subject to change without prior notice.
The name AG Neovo is a trademark of Associated Industries China, Inc.
All other trademarks are the property of their respective owners.
TFT LCD
22.0" (559mm)
+
WSXGA 1680 x 1050
0.282mm
300cd/m 2 (Typical)
1000:1 (Typical)
Hard Coating (3H), Anti-glare
Treatment
16.7M
3ms (GTG)
H: 24kHz – 83kHz
V: 55Hz – 75Hz
150MHz
50,000hrs (Minimum)
15-Pin D-Sub
24-Pin DVI-D
3.5mm Audio Line-in
2W x 2
3-Pin AC Plug
-5° ~ +25°
Yes (100mm)
UL/CUL, FCC, NOM, CB, CE,
TUV/GS, GOST-R/HYGIENIC,
Nordic, BSMI, Energy Star,
TCO'03, WEEE, RoHS
DDC-2B, DDC-CI
100 - 240V, 50 - 60Hz
<48W (On)
<2W (Stand-by)
<1W (Off)
506 x 405 x 211 mm
(19.9" x 15.9" x 8.3")
591 x 522 x 174 mm
(23.3" x 20.6" x 6.9")
4.9 kg (10.8 lbs)
5.9 kg (13.0 lbs)
48 Sets
480 Sets
960 Sets
www.agneovo.com
Copyright © 2007 AG Neovo. All rights reserved.
P/C: HW2200 Version 4.1, 20080312
