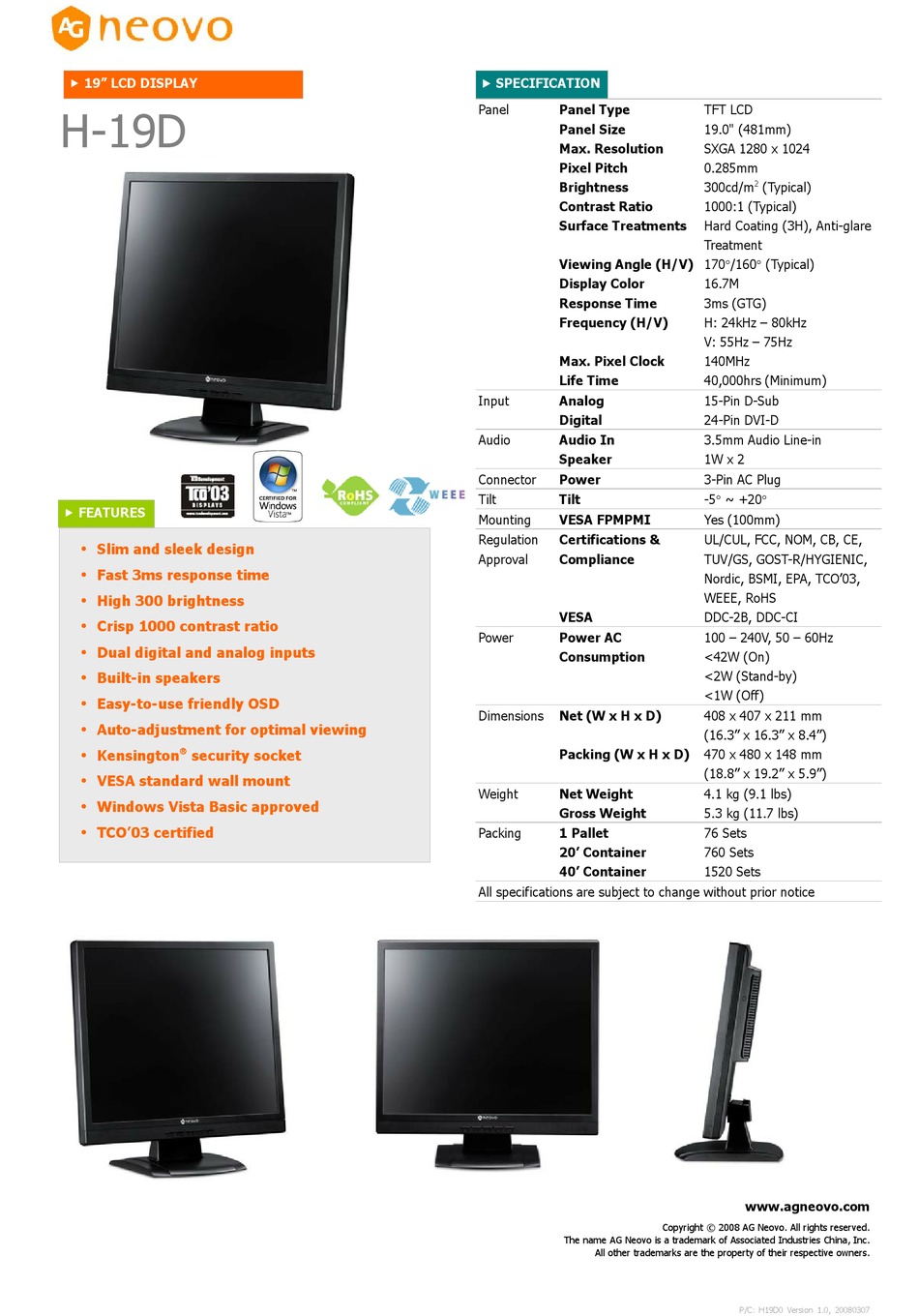

AG Neovo H-19 Specifications

19" LCD DISPLAY
H-19D
FEATURES
Slim and sleek design
Fast 3ms response time
High 300 brightness
Crisp 1000 contrast ratio
Dual digital and analog inputs
Built-in speakers
Easy-to-use friendly OSD
Auto-adjustment for optimal viewing

Kensington security socket
VESA standard wall mount
Windows Vista Basic approved
TCO'03 certified
SPECIFICATION
Panel Panel Type
Panel Size
Max. Resolution
Pixel Pitch
Brightness
Contrast Ratio
Surface Treatments
Viewing Angle (H/V) 170°/160° (Typical)
Display Color
Response Time
Frequency (H/V)
Max. Pixel Clock
Life Time
Input Analog
Digital
Audio Audio In
Speaker
Connector Power
Tilt Tilt
Mounting VESA FPMPMI
Regulation Certifications &
Approval Compliance
VESA
Power Power AC
Consumption
Dimensions Net (W x H x D)
Packing (W x H x D)
Weight Net Weight
Gross Weight
Packing 1 Pallet
20' Container
40' Container
All specifications are subject to change without prior notice
The name AG Neovo is a trademark of Associated Industries China, Inc.
All other trademarks are the property of their respective owners.
TFT LCD
19.0" (481mm)
SXGA 1280 x 1024
0.285mm
300cd/m 2 (Typical)
1000:1 (Typical)
Hard Coating (3H), Anti-glare
Treatment
16.7M
3ms (GTG)
H: 24kHz – 80kHz
V: 55Hz – 75Hz
140MHz
40,000hrs (Minimum)
15-Pin D-Sub
24-Pin DVI-D
3.5mm Audio Line-in
1W x 2
3-Pin AC Plug
-5° ~ +20°
Yes (100mm)
UL/CUL, FCC, NOM, CB, CE,
TUV/GS, GOST-R/HYGIENIC,
Nordic, BSMI, EPA, TCO'03,
WEEE, RoHS
DDC-2B, DDC-CI
100 – 240V, 50 – 60Hz
<42W (On)
<2W (Stand-by)
<1W (Off)
408 x 407 x 211 mm
(16.3" x 16.3" x 8.4")
470 x 480 x 148 mm
(18.8" x 19.2" x 5.9")
4.1 kg (9.1 lbs)
5.3 kg (11.7 lbs)
76 Sets
760 Sets
1520 Sets
www.agneovo.com
Copyright © 2008 AG Neovo. All rights reserved.
P/C: H19D0 Version 1.0, 20080307
