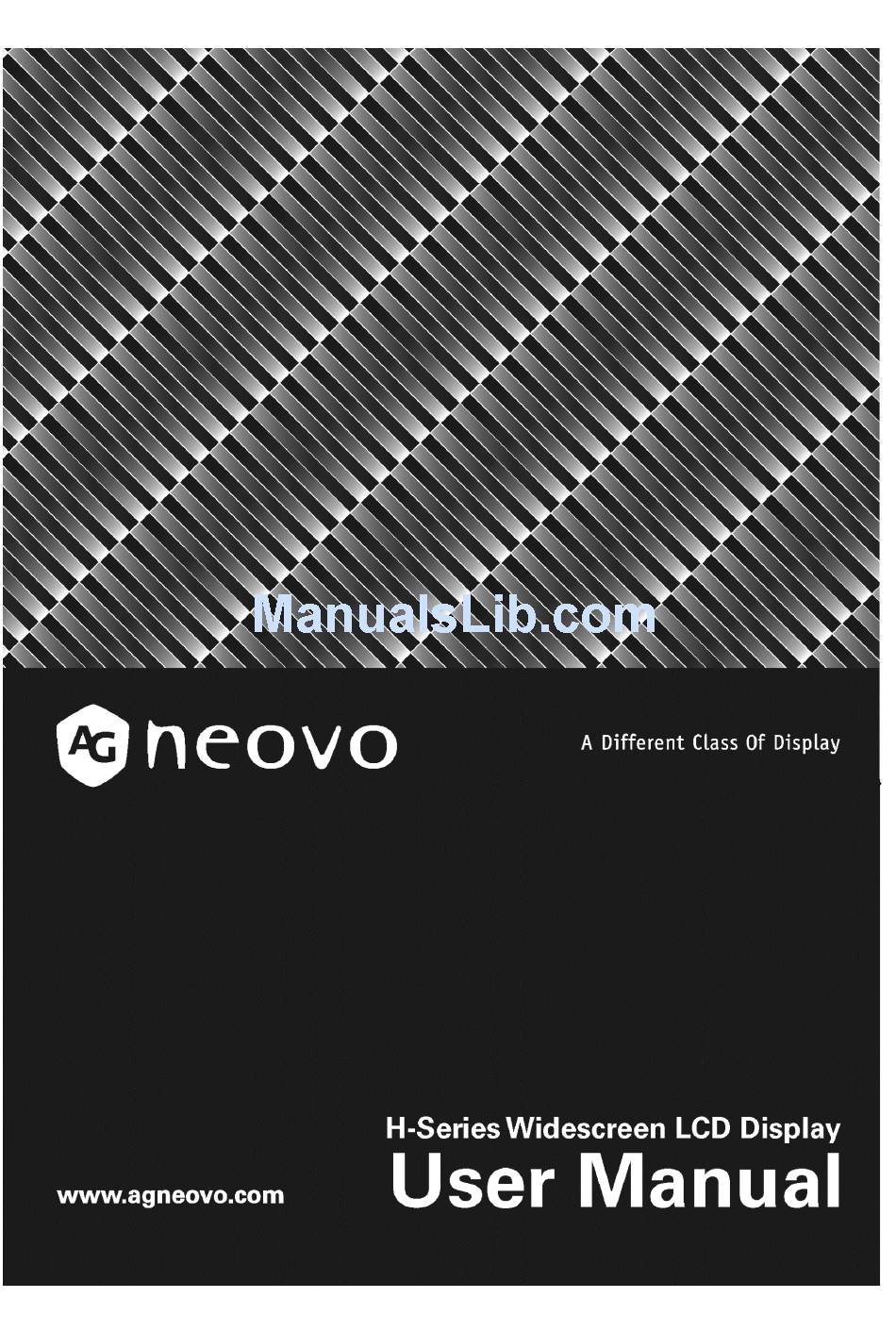

AG Neovo H-17 User Manual

H series widescreen lcd display
Hide thumbs Also See for H-17:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-17 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AG Neovo H-17

Summary of Contents for AG Neovo H-17

  • Page 2: Table Of Contents

    TABLE OF CONTENTS FOR YOUR SAFETY ...2 SAFETY PRECAUTIONS...3 SPECIAL NOTES ON LCD MONITORS ...5 BEFORE YOU OPERATE THE MONITOR...7 FEATURES...7 PACKAGE LIST ...7 INSTALLATION INSTRUCTIONS ...8 CONTROLS AND CONNECTORS ...9 ADJUSTING THE VIEWING ANGLE ...10 OPERATING INSTRUCTIONS...11 GENERAL INSTRUCTIONS...11 HOW TO ADJUST A SETTING...13 ADJUSTING THE PICTURE ...14 PLUG AND PLAY ...16...

  • Page 3: For Your Safety

    FOR YOUR SAFETY Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference. FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 4 TCO'03 Some of the features of the TCO’03 Display requirements: Ergonomics Good visual ergonomics and image quality in order to improve the working • environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

  • Page 5: Safety Precautions

    SAFETY PRECAUTIONS Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement. Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can injure a person and cause serious damage to the appliance.

  • Page 6: Special Notes On Lcd Monitors

    SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor. NOTES • Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears.
  • Page 7 WEEE Information for users applicable in European Union countries The symbol on the product or its packaging signifies that this product has to be disposed separately from ordinary household wastes at its end of life. Please kindly be aware that this is your responsibility to dispose electronic equipment at recycling centers so as to help conserve natural resources.

  • Page 8: Before You Operate The Monitor

    BEFORE YOU OPERATE THE MONITOR FEATURES • 48cm(19”) TFT Color LCD Monitor(19”) 55.8 cm(22”) TFT Color LCD Monitor (22”) • Crisp, Clear Display for Windows and MAC • Recommened Resolutions: 1440X900@60Hz(19”) Recommened Resolutions: 1680 X 1050 @60Hz(22”) • Ergonomic Design •...

  • Page 9: Installation Instructions

    INSTALLATION INSTRUCTIONS SWIVEL BASE Install Figure 1 POWER CORD Power Source: 1. Make sure that the power cord is the correct type required in your area. 2. Connect the AC-power cord into your LCD monitor’s power input socket, The AC-power cord may be connected to either a wall power outlet or the power outlet socket on your PC, depending on the type of power cord supplied with your LCD monitor.

  • Page 10: Controls And Connectors

    CONTROLS AND CONNECTORS CABLE CONNECTIONS Connecting the D-SUB Cable: Plug the D-SUB Cable one end to LCD monitor’s “VGA Port” socket , the other end to the computer's VGA port and tighten the two screws on the cable connector. Connecting the Power Cord: Plug the AC-power cord. Connecting the DVI Cable (for H-W22 / H-W19D): Connect one end of the 24-pin DVI cable to the back of the monitor and connect the other end to the computer’s DVI port.

  • Page 11: Adjusting The Viewing Angle

    ADJUSTING THE VIEWING ANGLE • For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. • Hold the stand so you do not topple the monitor when you change the monitor’s angle.

  • Page 12: Operating Instructions

    OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences. •...

  • Page 13: Front Panel Control

    FRONT PANEL CONTROL Auto Button / OSD Exit 1. Press automatically. You are recommended to press the button the first time you use the monitor or every time you change the resolution and/or refresh rate of the input signal. 2. When OSD menu is in active status, this button will act as exit key. Decrease Button 1.

  • Page 14: How To Adjust A Setting

    solution. Never use strong solvents such as thinner, benzene, or abrasive cleaners, since these will damage the cabinet. As a safety precaution, always unplug the monitor before cleaning it. HOW TO ADJUST A SETTING Press the to activate the OSD window (Figure 5). Press is highlighted, press the menu, press...

  • Page 15: Adjusting The Picture

    ADJUSTING THE PICTURE The descriptions for function control LEDS Main Main Menu Menu Item Icon Brightness Contrast Horizontal Position Vertical Position Sharpness Transparency Phase Clock Color Temperature Horizontal OSD Position Vertical OSD Position Sub Menu Item Select Brightness in the OSD menu. Select Contrast in the OSD menu.
  • Page 16 Main Main Menu Menu Item Icon Tools Recall Language Auto and Input Select Exit DVI for H-W22 / H-W19D Sub Menu Item Text/Graph Set Text/Graph mode. Show the information of the main image and Information sub-image source. DDC/CI Turn ON/OFF DDC/CI Support. 16:9 / 4:3 Select wide or standard format.

  • Page 17: Plug And Play

    PLUG AND PLAY Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.

  • Page 18: Technical Support (Faq)

    TECHNICAL SUPPORT (FAQ) Problem & Question Power LED is not on No Plug & Play Picture is fuzzy Picture bounces or a wave pattern is present in the picture The power LED is ON (orange) but there’s no video or no picture. Missing one of the primary colors (RED,...

  • Page 19: Error Message & Possible Solution

    ERROR MESSAGE & POSSIBLE SOLUTION CABLE NOT CONNECTED : Check if the signal-cable is properly connected. If the connector is loose, tighten the connector’s screws. Check if the connection pins of signal-cable is damaged. INPUT NOT SUPPORT Your computer has been set to unsuitable display mode. Set the computer to display mode given in the following table.

  • Page 20: Specifications

    APPENDIX SPECIFICATIONS Electrical characteristics Screen size Pixel format H-Frequency Analogue V-Frequency H-Frequency Digital V-Frequency Power Source Power Consumption Audio Physical characteristics Dimension(W) x (H) x (D) Weight (N. W.) Tilt angle DVI for H-W22 / H-W19D H-W19 / H-W19D 48cm 1440X900@60Hz 24kHz –...
