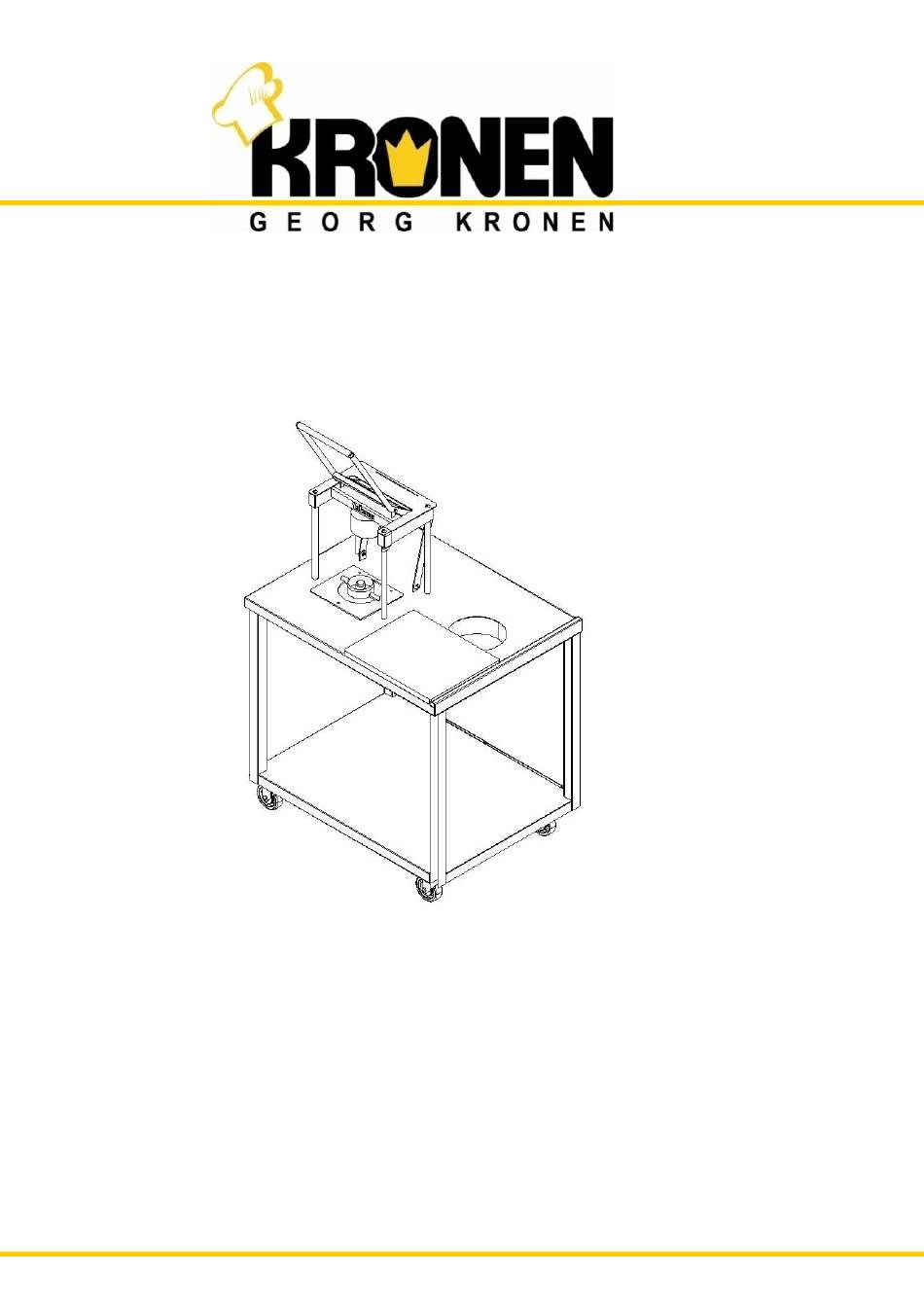

- Page 1 PINEAPPLE PEELER KA-3 Type: Translation of the Original Instruction Manual English...
- Page 2 Bedienungsanleitung KA-1 Instruction Manual KA-3 Version: 1.1 Date of release: 15.09.2017...
-
Page 3: Table Of Contents
Bedienungsanleitung KA-1 Contents General Information ................... 4 Safety ......................8 Technical Characteristics ................. 10 Installation and Function ................11 Transportation and Packaging ..............15 Installation and Initial Operation .............. 16 Use and Operating ................... 17 Malfunctions ..................... 22 Maintenance .................... 23 10. -
Page 4: General Information
Caution, risk of injury! Follow the instruction to avoid inju- ries. Limitation of liability If you do not follow the instruction manual, the manufacturer is not liable. Manufacturer Kronen Küchengeräte GmbH Gewerbestr. 3 D-77731 Willstätt Telefon: +49 (0) 78 54/96 60-0 Telefax: +49 (0) 78 54/96 60-50... - Page 5 Bedienungsanleitung KA-1 Defects and Claims 1. Claims based on material defects shall be subject to a limitation period of 2 years after surrender of the merchandise. The Seller does not assume any liability for material defects in pre-owned merchandise. 2. We will, at our discretion, make new delivery for or subsequently improve any and all rendered services which are verifiably determined to be defective as a consequence of circumstances existing before the transfer of risk.
- Page 6 Further claims within the scope of the warranty are ex- cluded. Following notification in due time of a warranty case, the Kronen Küchengeräte GmbH service department will decide how the defect is to be remedied and will discuss the subsequent actions with the customer, engaging an Kronen Küchengeräte GmbH authorised customer service centre if necessary.
- Page 7 5. The warranty services described above are subject to the condition that all required maintenance and care work is carried out by a customer service author- ised by Kronen Küchengeräte GmbH and that any and all care and operational instructions from Kronen Küchengeräte GmbH have been followed.
-
Page 8: Safety
Bedienungsanleitung KA-1 Safety General Sources of Danger Wrongful use or limited knowledge of the safety instruc- tions could result in accidents and injuries on hands and fingers. That is why, we advise you to respect and follow the safety instructions. Make sure that unauthorized persons or untrained persons, do not work with the pineapple peeler. - Page 9 Bedienungsanleitung KA-1 Intended Use The pineapple peeler is a technical tool which exclusively should be used for its’ intended purpose. Its only purpose is to peel and coring, slicing or top removing pineapples. To achieve the results you want you have to use the intended blade and plunger. Approved food is only pineapple.
-
Page 10: Technical Characteristics
Bedienungsanleitung KA-1 Technical Characteristics Weight: 50 kg Dimensions : 900 x 700 x 1602 mm Requirements for intended place: - horizontal and flat - Not slippery... -
Page 11: Installation And Function
Bedienungsanleitung KA-1 Installation and Function Depending on what blade and plunger, the pineapple peeler processes pineap- ples. These can be top removed with the blades and plungers, peeled, cut in slices or in corners. Included in delivery Delivery includes the fully assembled pineapple peeler made of stainless steel, one blade and one plunger with the size of 89 mm. - Page 12 Bedienungsanleitung KA-1 GN-Tray : The tray is placed below the blade support surface. The cut is falling directly inside the tray after finishing the process. Cutting board : This is removable and serves as a hygienic work sur- face.
- Page 13 Bedienungsanleitung KA-1 Assembled Parts Body Pushing Handle Plunger Blade Spring plate Mounting Pin Mobile rack...
- Page 14 Bedienungsanleitung KA-1 Accessories Blade for top removing pineapples 110 mm 120 mm Plunger for top removing pineapples 110 mm 120 mm 74 mm Blade for peeling 89 mm 96 mm 102 mm Plunger for peeling 74 mm 89 mm 96 mm 102 mm Blade for slicing cut 17 mm...
-
Page 15: Transportation And Packaging
Bedienungsanleitung KA-1 Transportation and Packaging Always transport the pineapple peeler in the intended box. Always transport the machine upright and make sure pineapple peeler is secured. The pineapple peeler is delivered on a pallet, it is wrapped with foil and secured with packing tape. -
Page 16: Installation And Initial Operation
Bedienungsanleitung KA-1 Installation and Initial Operation The pineapple peeler is shipped ready for use. The installation and the initial op- eration can be done by the user. The working place has to fulfill certain requirements: Horizontal and flat Not slippery After you have placed the pineapple peeler to the intended working place, press the wheel brakes of the two locking wheels. -
Page 17: Use And Operating
Bedienungsanleitung KA-1 Use and Operating Safety instruction for operating the slicer It is strictly forbidden to put your hands between the plunger and blade. There is an acute danger of injury. Release the pushing handle, when not using the pineap- ple peeler, in the down position to avoid injury from acci- dental falling of the plunger. - Page 18 Bedienungsanleitung KA-1 Mounting and removal the plunger Make sure that when installing or removing the plunger knife inserted. To remove the plunger (3) pull out the mount- ing pin (6) with one hand. Keep simultaneously with the other hand the plunger (3) to prevent a fall.
- Page 19 Bedienungsanleitung KA-1 Safety equipment To prevent accidental dropping of the pushing handle (2), there is on the right side of the pineapple peeler a spring plate (5). To depress the pushing handle (2) You have to overcome by slight pressure the re- sistance of the spring plate (5).
- Page 20 Bedienungsanleitung KA-1 Corner cut of the pineapple To slice corner parts of a pineapple, mount the blade (4) for corner cuts and the associated plunger (3). Place the top removed pineapple with the flower side up on the blade (4). Press the pushing handle (2) in a single movement till it stops down.
- Page 21 Bedienungsanleitung KA-1 Cleaning Before you use the pineapple peeler the first time make sure you clean it thor- oughly. Also, clean the machine multiple times during the day after use. Always use standard cleansers for cleaning the pineapple peeler. To clean the pineapple peeler You have to remove the blade (4) and the plunger (3) and clean them separately in a water bath or in the machine dishwasher.
-
Page 22: Malfunctions
Bedienungsanleitung KA-1 Malfunctions Safety instructions Only costumer service should disassemble parts in case of malfunctions. In case of reoccurring malfunctions call your customer service. Error Correction Error Possible cause Solution The blade is blunt. Those malfunctions are to The pineapple cannot peel be fixed by customer ser-... -
Page 23: Maintenance
Maintenance on the knives is to be done by customer service only. Support / Customer Service / Hotline Sales Department and customer service: Kronen Küchengeräte GmbH Gewerbestraße 3 D-77731 Willstätt Phone: +49 (0) 78 54/96 60-0 Fax: +49 (0) 78 54/96 60-50 info@kronen-germany.de... -
Page 24: Index
Bedienungsanleitung KA-1 Index Accessories ...................... 13 Blade ....................11, 12, 17 Cleaning ......................20 Declaration of conformity .................. 23 Defects and Claims .................... 5 Disposal ......................7 Error Correction ....................21 Installation ......................15 Intended place .................... 10, 15 Manufacturer ...................... 4 Plunger ....................
